Is the Bulkhead connector with hose nut, with valve, acetal, PLC series DN 6.3 compatible with deionized water and safe at operating temperatures -40Â°C to +82Â°C?

Yes. The Bulkhead connector with hose nut, with valve, acetal, PLC series DN 6.3 is suitable for use with deionized water and is safe to operate across the specified temperature range. Rationale based on the provided description: - Intended application explicitly includes deionized water filtration and washing installations. - Body material acetal (POM) is commonly compatible with deionized water and offers good chemical resistance for such uses. - Sealing uses an NBR o-ring; NBR is typically acceptable for water applications (note: NBR can be sensitive to some aggressive chemicals, but deionized water is not generally problematic). - Rated working pressure up to 8.3 bar and operating temperature range â40Â°C to +82Â°C match your temperature requirement, so mechanical and seal performance should be maintained within that range. If the deionized water will contain aggressive additives, extreme purity requirements, or prolonged high-temperature cycles, consider verifying compatibility of NBR and acetal for your specific fluid chemistry and process conditions or request alternative seal/material options (e.g., EPDM, FKM, or different polymers).

Can the Bulkhead connector with hose nut, with valve, acetal, PLC series DN 6.3 withstand 8.3 bar working pressure in leak detection systems?

Yes. The Bulkhead connector with hose nut, with valve, acetal, PLC series DN 6.3 is specified for a working pressure up to 8.3 bar and uses acetal body with NBR Oâring sealing. Within its stated operating temperature range (â40Â°C to +82Â°C) and for intended applications such as washing installations, deionized water filtration, industrial machines and leak detection, it can withstand 8.3 bar. Ensure correct installation, compatibility with media (NBR suitability), and avoid pressure/temperature transients or chemical exposures that could reduce performance.

Can the Bulkhead connector with hose nut, with valve, acetal, PLC series DN 6.3 be used for washing and filtration applications?

Yes. The Bulkhead connector with hose nut, with valve, acetal, PLC series DN 6.3 is suitable for washing and deionized water filtration applications based on the provided specification. Key reasons: - Application intent: It is described as a medium-sized quick coupling plug intended for washing installations and deionized water filtration, which directly matches the stated uses. - Materials and compatibility: The body material is acetal (POM), which offers good chemical resistance and dimensional stability for water-based systems. The sealing uses an NBR O-ring; NBR is compatible with water and many common cleaning fluids. - Pressure and temperature ratings: Working pressure up to 8.3 bar and operating temperature range â40Â°C to +82Â°C are adequate for typical washing and filtration processes in industrial and laboratory settings. - Practical features: The hose nut and integrated valve support secure hose connections and controlled flowâuseful for washing lines, filtration loops, and leak-detection setups. Caveats: - NBR may not be suitable for strong solvents, aggressive chemicals, or ultrapure water applications where leaching must be minimized; consider FKM, EPDM, or PTFE seals for those cases. - For ultrapure or critical semiconductor-grade deionized water, verify extractables/particulate limits and compatibility with acetal; stainless steel or specialized polymers may be preferred. - Confirm system pressure and temperature extremes remain within the 8.3 bar and â40 to +82Â°C limits. Conclusion: For typical washing and deionized water filtration tasks, the Bulkhead connector with hose nut, with valve, acetal, PLC series DN 6.3 is appropriate, provided the seal material and acetal body meet your specific chemical purity and contamination requirements.

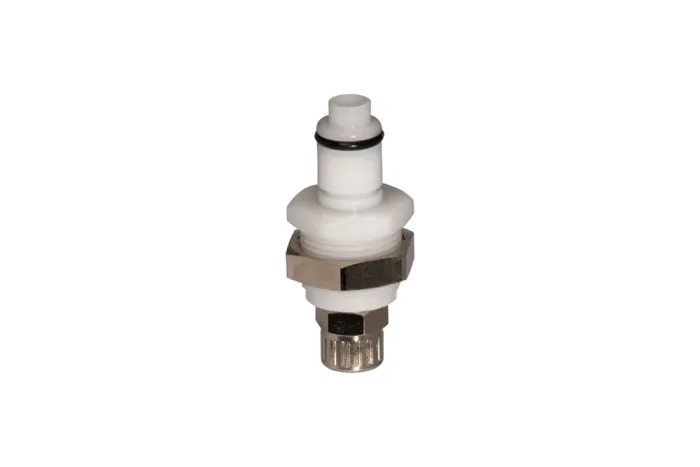

Plug bulkhead quick coupling with a nut na hose, with valve, acetal, series PLC DN 6.3

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)
Standard length [m]	15

Medium size plug bulkhead quick coupling with a nut na hose, intended for installations washing, filtration water deionized, machines industrial, detection leakage, itp. Length L – total length. Material: acetal. Sealing: O-ring with NBR. Working pressure: for 8.3 bar. Operating temperature: from -40°C to +82°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CC-PLV-24-AC	Plug PLC DN6.4 for hose 6.4x4.3 with nut, with a valve, bulkhead, acetal	4	8.3	In stock	Enquiry
CC-PLV-25-AC	Plug PLC DN6.4 for hose 8x6 with nut, with a valve, bulkhead, acetal	6	8.3	In stock	Enquiry
CC-PLV-26-AC	Plug PLC DN6.4 for hose 9.5x6.4 with nut, with a valve, bulkhead, acetal	6	8.3	In stock	Enquiry
CC-PLV-27-AC	Plug PLC DN6.4 for hose 10x8 with nut, with a valve, bulkhead, acetal	8	8.3	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Medium size plug bulkhead quick coupling with a nut na hose, intended for installations washing, filtration water deionized, machines industrial, detection leakage, itp. Length L – total length. Material: acetal. Sealing: O-ring with NBR. Working pressure: for 8.3 bar. Operating temperature: from -40°C to +82°C.
