Is the Bulkhead socket for hose, with valve, acetal, PMC series DN 3.2 compatible with medical gas applications and biocompatible seals?

Bulkhead socket for hose, with valve, acetal, PMC series DN 3.2 . based on the provided description, it is intended for use in medical devices and gas detection equipment, which suggests suitability for some medical applications. However, two critical points prevent a definitive âyesâ for medical gas lines and implantable or invasive uses: - Seals: The unit uses NBR (nitrile) seals. NBR is common and chemically resistant but is not generally considered medical-grade or biocompatible for direct patient contact or critical medical gas systems unless specifically certified. For medical gas applications, materials typically must meet specific standards (e.g., ISO 7396, ISO 13485, USP, EN standards) and often use EPDM, FFKM, or other approved elastomers with documented biocompatibility. - Certification and standards: The description does not list medical gas certifications, biocompatibility testing, or compliance with medical gas system standards. Medical gas installations require components certified for that purpose. Conclusion: Bulkhead socket for hose, with valve, acetal, PMC series DN 3.2 may be suitable for non-critical medical equipment or gas-detection devices, but it should not be assumed compatible with regulated medical gas systems or be used where biocompatible seals are required without vendor confirmation and appropriate certifications/testing. Request from the manufacturer: (1) biocompatibility test reports for all wetted materials, (2) certification to relevant medical gas standards, and (3) confirmation of suitable sterilization/cleaning methods.

Can the Bulkhead socket for hose, with valve, acetal, PMC series DN 3.2 be sterilized for use in medical or laboratory environments?

Bulkhead socket for hose, with valve, acetal, PMC series DN 3.2 may be usable in some medical or laboratory settings but is not described as sterilizable in the provided specification. Material: acetal (POM) and NBR seals have limited chemical and thermal resistance-operating temperature tops at +82Â°C-so common terminal sterilization methods have constraints: - Autoclaving (steam, ~121Â°C) exceeds the rated temperature and may deform acetal and degrade NBR-not recommended. - Dry heat sterilization similarly exceeds temperature limits. - Ethylene oxide (EtO) gas could be compatible with plastics but requires validation for residuals and compatibility with NBR. - Chemical sterilants (e.g., 70% IPA, hydrogen peroxide vapor, peracetic acid) may be acceptable for surface disinfection but require manufacturer compatibility data and validation for seal integrity and leaching. Conclusion: Do not assume sterilizability-perform manufacturer confirmation and application-specific validation (chemical compatibility, temperature cycling, microbial sterility) before using Bulkhead socket for hose, with valve, acetal, PMC series DN 3.2 in sterile medical or laboratory environments.

Does the Bulkhead socket for hose, with valve, acetal, PMC series DN 3.2 support quick one-handed disconnection under pressurized conditions?

Yes. The Bulkhead socket for hose, with valve, acetal, PMC series DN 3.2 supports quick one-handed disconnection under pressurized conditions. Its characteristic designâwithout balls or a protective sleeveâenables easier, secure one-handed connection and disconnection, with an audible click confirming an effective seal. Rated working pressure is up to 8.3 bar and seals use NBR, so it is suitable for pressurized applications within those limits.

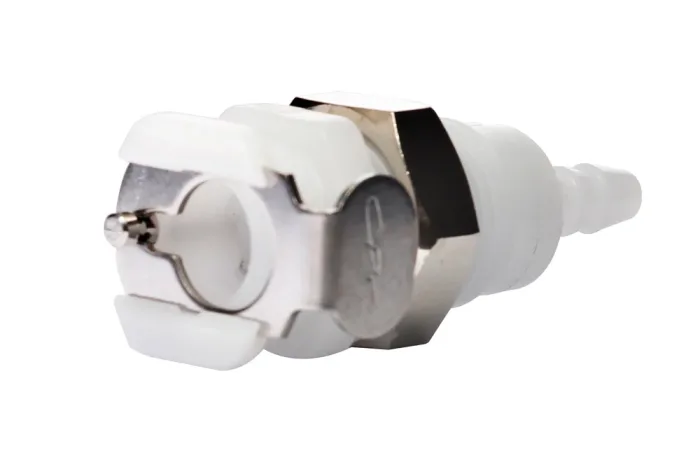

Bulkhead socket for hose, with valve, acetal, PMC series DN 3.2

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)
Standard length [m]	30

The quick-connect socket with a valve for hoses is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The characteristic design (not containing balls and a protective sleeve) allows for easier, secure connection and disconnection with one hand. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal. Sealing: NBR. Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
CC-PMV-06-AC	PMC DN3.2 socket for 1/16" hose, with valve, grooved, acetal	-	8.3
CC-PMV-07-AC	PMC DN3.2 socket for 1/8" hose, with valve, grooved, acetal	-	8.3
CC-PMV-08-AC	PMC DN3.2 socket for 3/16" hose, with valve, partitioned, polypropylene	-	8.3
CC-PMV-09-AC	PMC DN3.2 socket for 1/4" hose, with valve, grooved, acetal	-	8.3

The quick-connect socket with a valve for hoses is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The characteristic design (not containing balls and a protective sleeve) allows for easier, secure connection and disconnection with one hand. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal. Sealing: NBR. Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.
