Is the Quick connect plug with GW (3/16" Ã· 1"), with valve, brass, PERFECTING suitable for gas media at 200 bar and interchangeable with ISO-B quick couplings from other manufacturers?

Yes. The Quick connect plug with GW (3/16" Ã· 1"), with valve, brass, PERFECTING is suitable for gas media at pressures up to 200 bar (actual max depends on coupling size) and is interchangeable with ISO-B quick couplings from other manufacturers. It is designed for gas service (listed among application media), rated up to 200 bar (size-dependent), manufactured in brass, and offers compatible sealing options (NBR, Viton, EPDM) for a wide temperature range. Safety factor is 4:1. Ensure you select the correct size and seal material for your specific gas type and operating temperature to meet compatibility and safety requirements.

Can the Quick connect plug with GW (3/16" Ã· 1"), with valve, brass, PERFECTING be used for gases at low temperatures with EPDM seals?

Quick connect plug with GW (3/16" Ã· 1"), with valve, brass, PERFECTING can be used for gases at low temperatures when fitted with EPDM seals. EPDM sealing range is specified as â54Â°C to +149Â°C, covering low-temperature service. Ensure the specific gas is compatible with EPDM (EPDM is generally suitable for many gases but not for hydrocarbons like petrol/benzene) and confirm the operating pressure (product supports up to 200 bar depending on size) and required safety factor. For critical applications, validate compatibility with the gas composition and perform site testing or consult the manufacturer.

Can the Quick connect plug with GW (3/16" Ã· 1"), with valve, brass, PERFECTING be used for aggressive gases or chemicals?

Quick connect plug with GW (3/16" Ã· 1"), with valve, brass, PERFECTING. suitability for aggressive gases or chemicals: Quick connect plug is listed for gas media and chemical service and is made of brass with three sealing options: NBR, Viton (FKM) and EPDM, each having different chemical resistances and temperature ranges. Suitability for aggressive gases/chemicals depends on the specific chemical and concentration: - Brass body: generally resistant to many nonâoxidizing gases and hydrocarbons but susceptible to dezincification and corrosion with strong acids, ammonia, chlorides, and some halogenated compounds. Not recommended for highly oxidizing or strongly corrosive media without verification. - Seals: - NBR (â40Â°C to +121Â°C): good for hydrocarbons, oils, fuels; poor for many ketones, esters, strong acids, and some aggressive chemicals. - Viton/FKM (â29Â°C to +204Â°C): best overall for aggressive chemicals, many acids, fuels, and many solvents; widely used for aggressive media but not compatible with some amines, ketones like acetone (limited), and certain perfluorinated solvents. - EPDM (â54Â°C to +149Â°C): good for hot water, steam, many acids and alkalis, but poor with hydrocarbons, oils and many organic solvents. - Pressure and safety: rated up to 200 bar (size dependent) with 4:1 safety factor; ensure operating pressure and temperature stay within seal and body limits. Recommendation: To use Quick connect plug with GW (3/16" Ã· 1"), with valve, brass, PERFECTING for an aggressive gas or chemical, identify the exact chemical (and concentration), temperature and pressure. Then select the appropriate seal material (Viton is generally the best starting choice for many aggressive media) and confirm brass compatibility for that specific substance. If the chemical is strongly oxidizing, contains chlorides, ammonia, or is known to attack copper alloys, consider stainless steel alternatives or consult the manufacturer with the chemical compatibility data for a definitive approval.

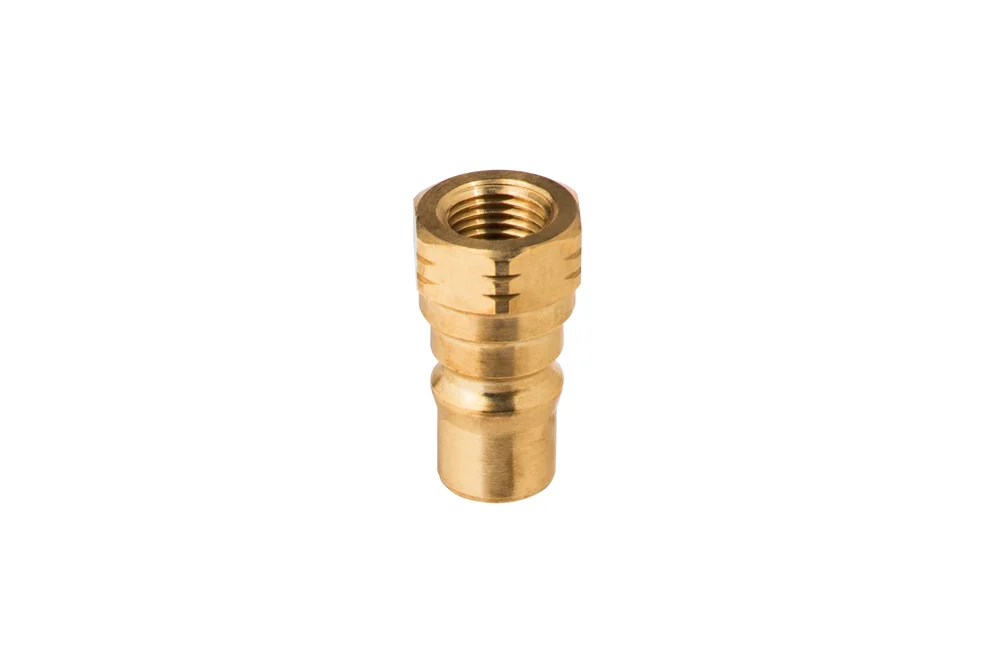

Quick-coupling plug with female thread (3/16″ ÷ 1″), with a valve, brass, PERFECTING

All products, Hydraulic quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	10, 15

Quick-coupling plug with a BSP or NPT female thread (3/16″ ÷ 1″), with a valve, for gaseous media. interchangeable with quick coupling ISO-B from other manufacturers. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 200 bar (depending on the quick-coupling size), Safety factor: 4:1. Material: brass. Sealing: NBR (from -40°C to +121°C), Viton (from -29°C to +204°C), EPDM (from -54°C to +149°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
PC-H1F1-B	Plug with 1/8" NPT female, with a valve, brass	-	200	In stock	Enquiry
PC-H2BF2-B	Plug with 1/4" BSP female, with a valve, brass	-	200	In stock	Enquiry
PC-H2BF2-B-V	Plug with 1/4" BSP female, with a valve, brass, Viton	-	200	In stock	Enquiry
PC-H2F2-B	Plug with 1/4" NPT female, with a valve, brass	-	200	In stock	Enquiry
PC-H3BF3-B	Plug with 3/8" BSP female, with a valve, brass	-	200	In stock	Enquiry
PC-H3F3-B	Plug with 3/8" NPT female, with a valve, brass	-	200	In stock	Enquiry
PC-H4BF4-B	Plug with 1/2" BSP female, with a valve, brass	-	175	In stock	Enquiry
PC-H4F4-B	Plug with 1/2" NPT female, with a valve, brass	-	175	In stock	Enquiry
PC-H6BF6-B	Plug with 3/4" BSP female, with a valve, brass	-	138	In stock	Enquiry
PC-H6F6-B	Plug with 3/4" NPT female, with a valve, brass	-	138	In stock	Enquiry
PC-H8BF8-B	Plug with 1" BSP female, with a valve, brass	-	100	In stock	Enquiry
PC-H8BF8-B-E	Plug with 1" BSP female, with a valve, brass, EPDM	-	100	In stock	Enquiry
PC-H8F8-B	Plug with 1" NPT female, with a valve, brass	-	100	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-coupling plug with a BSP or NPT female thread (3/16″ ÷ 1″), with a valve, for gaseous media. interchangeable with quick coupling ISO-B from other manufacturers. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 200 bar (depending on the quick-coupling size), Safety factor: 4:1. Material: brass. Sealing: NBR (from -40°C to +121°C), Viton (from -29°C to +204°C), EPDM (from -54°C to +149°C).
