Is the Quick connect plug with GW (3/16" Ã· 1"), with valve, galvanized steel, PERFECTING suitable for use with gas and hydraulic oil at pressures up to 345 bar?

Yes. The Quick connect plug with GW (3/16" Ã· 1"), with valve, galvanized steel, PERFECTING is suitable for use with gas and for hydraulic oil up to pressures of 345 bar (working pressure depends on coupling size; safety factor 4:1). Material is carbon steel, galvanized; sealing NBR; operating temperature â40Â°C to +121Â°C. It is expressly described as ideally suited for gas media and also usable in hydraulic systems for hydraulic oil, as well as for water, steam, fuels, oils, or chemicals.

Can the Quick connect plug with GW (3/16" Ã· 1"), with valve, galvanized steel, PERFECTING be used with steam and high-temperature oils?

Yes. The Quick connect plug with GW (3/16" Ã· 1"), with valve, galvanized steel, PERFECTING can be used with steam and high-temperature oils within its specified operating range. It is suitable for steam and oils per the product description. Note the sealing material is NBR and the operating temperature range is -40Â°C to +121Â°C; beyond +121Â°C NBR may degrade, so for higher steam temperatures or hotter oils a different seal material is required. Working pressure up to 345 bar (size-dependent) with a 4:1 safety factor.

Can Quick connect plug with GW (3/16" Ã· 1"), with valve, galvanized steel, PERFECTING be interchanged with ISO-B couplings from other manufacturers?

Yes. Quick connect plug with GW (3/16" Ã· 1"), with valve, galvanized steel, PERFECTING Format is interchangeable with ISO-B couplings from other manufacturers. The product description explicitly states interchangeability with ISO-B quick couplings. Ensure matching size (3/16" Ã· 1"), thread type (BSP or NPT as used), and verify working pressure (up to 345 bar depending on size) and sealing material (NBR) are suitable for your application before interchange.

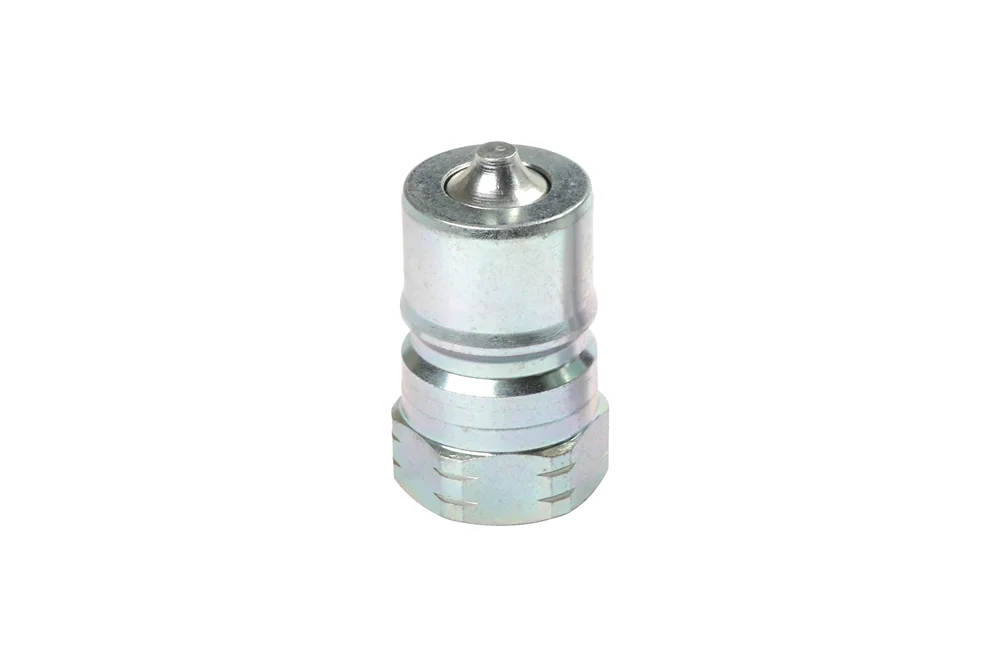

Quick-coupling plug with female thread (3/16″ ÷ 1″), with a valve, galvanized steel, PERFECTING

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	100, 60

Quick-coupling plug with a BSP or NPT female thread (3/16″ ÷ 1″), with a valve, it is ideally suited to gaseous media. It can also be successfully used in power hydraulics for hydraulic oil, as well as in industry for water, steam, fuels, oils and chemicals. interchangeable with quick coupling ISO-B from other manufacturers. Working pressure: up to 345 bar (depending on the quick-coupling size), (Safety factor 4:1). Material: carbon steel, galvanized. Sealing: NBR. Operating temperature: from -40°C to +121°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
PC-H1F1	Plug with 1/8" NPT female, with a valve, galvanized steel	-	275	In stock	Enquiry
PC-H2BF2	Plug with 1/4" BSP female, with a valve, galvanized steel	-	345	In stock	Enquiry
PC-H2F2	Plug with 1/4" NPT female, with a valve, galvanized steel	-	345	In stock	Enquiry
PC-H3BF3	Plug with 3/8" BSP female, with a valve, galvanized steel	-	275	In stock	Enquiry
PC-H3F3	Plug with 3/8" NPT female, with a valve, galvanized steel	-	275	In stock	Enquiry
PC-H4BF4	Plug with 1/2" BSP female, with a valve, galvanized steel	-	275	In stock	Enquiry
PC-H4F4	Plug with 1/2" NPT female, with a valve, galvanized steel	-	275	In stock	Enquiry
PC-H6BF6	Plug with 3/4" BSP female, with a valve, galvanized steel	-	275	In stock	Enquiry
PC-H6F6	Plug with 3/4" NPT female, with a valve, galvanized steel	-	275	In stock	Enquiry
PC-H8BF8	Plug with 1" BSP female, with a valve, galvanized steel	-	275	In stock	Enquiry
PC-H8F8	Plug with 1" NPT female, with a valve, galvanized steel	-	275	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-coupling plug with a BSP or NPT female thread (3/16″ ÷ 1″), with a valve, it is ideally suited to gaseous media. It can also be successfully used in power hydraulics for hydraulic oil, as well as in industry for water, steam, fuels, oils and chemicals. interchangeable with quick coupling ISO-B from other manufacturers. Working pressure: up to 345 bar (depending on the quick-coupling size), (Safety factor 4:1). Material: carbon steel, galvanized. Sealing: NBR. Operating temperature: from -40°C to +121°C.
