What is the maximum operating pressure for the One-way quick-connection socket with hose end, brass, series 27 DN 10?

The maximum operating pressure for the One-way quick-connection socket with hose end, brass, series 27 DN 10 is 35 bar.

Can the One-way quick-connection socket with hose end, brass, series 27 DN 10 be used with fluids other than air and water?

One-way quick-connection socket with hose end, brass, series 27 DN 10 can be used with fluids other than air and water, but with important limitations. Compatibility factors: - Seals: NBR (nitrile) is standard; suitable for oils, fuels, and many hydrocarbons, but incompatible with strong acids, ketones (acetone), some esters, and certain aggressive chemicals. Temperature range (-20Â°C to +100Â°C) also limits use with hot or cold media. - Metals: Nickel-plated brass body and brass valve handle many non-corrosive fluids. Stainless steel springs/balls improve corrosion resistance, but overall brass components can degrade with highly acidic, alkaline, chlorinated, or ammonia-containing fluids. - Pressure/flow: Rated to 35 bar working pressure and the ULTRA-FLO valve provides high flow (air: 2400 l/min at Pe=6 bar, water Kv=2.25). Ensure your fluidâs viscosity and required flow fit those specs; viscous fluids will reduce effective flow and may affect valve sealing and operation. - Safety/contamination: If fluid is hazardous, flammable, toxic, or reactive, the coupling must meet relevant safety standards and material compatibility; brass and NBR may not be acceptable for combustible fuels or high-purity/food applications. Recommendations: - For oils, hydraulic fluids and many petroleum-based fluids: likely acceptable, but verify NBR compatibility with the specific fluid and operating temperature. - For aggressive chemicals, solvents, strong acids/bases, ammonia, or steam: do not use without consulting the manufacturer and selecting appropriate materials (e.g., Viton/FKM, PTFE seals, stainless or special alloys). - Always confirm fluid viscosity, temperature, pressure, and chemical compatibility with supplier data or a materials compatibility chart before use. Conclusion: One-way quick-connection socket with hose end, brass, series 27 DN 10 can handle some fluids beyond air and water (notably many oils and hydrocarbons) if NBR and brass are compatible with the specific fluid and conditions; for aggressive, high-temperature, high-purity, or hazardous fluids, seek manufacturer approval or alternative materials.

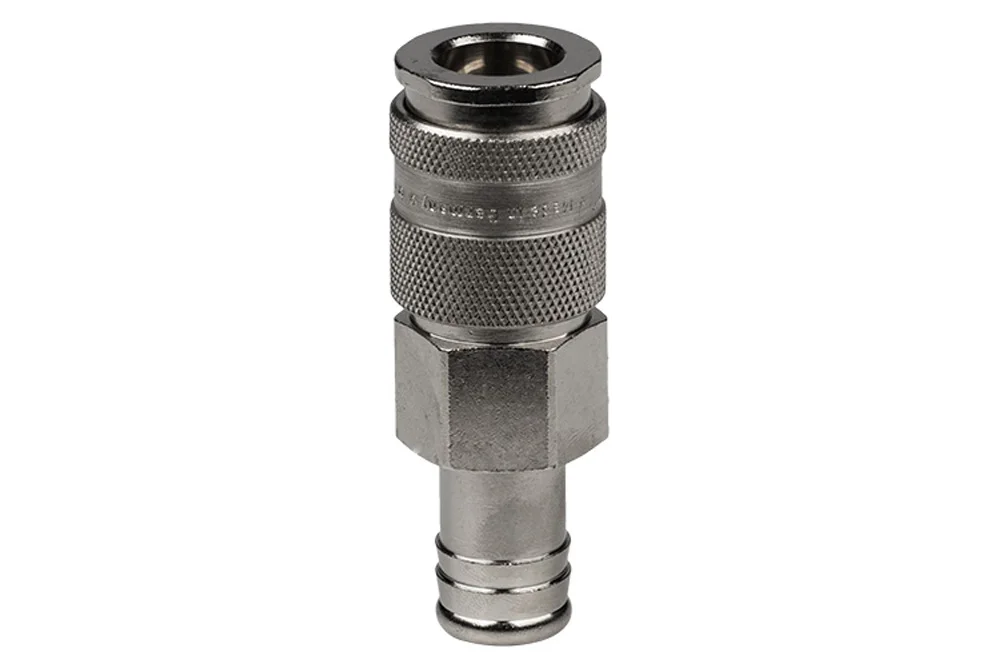

One-way quick-connection socket with hose end, brass, series 27 DN 10

Q: How does the ULTRA-FLO valve in the One-way quick-connection socket with hose end, brass, series 27 DN 10 affect flow performance?

The ULTRA-FLO valve in the One-way quick-connection socket with hose end, brass, series 27 DN 10 is designed to maximize flow and minimize pressure loss. Its very high flow coefficient delivers up to 2400 l/min for air (Pe=6 bar, Îp=0.5 bar) and 37.5 l/min for air at Îp=1 bar, with a water Kv of 2.25, ensuring rapid filling and short cycle times. Constructed of brass with stainless steel internals and NBR sealing, the valve maintains high throughput at working pressures up to 35 bar while providing reliable sealing and durability across â20Â°C to +100Â°C. Overall, ULTRA-FLO significantly improves flow performance compared with standard valves, reducing pressure drop and increasing operational efficiency.

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

Quick coupling socket with valve, standard EURO profile DN10, with hose end, series 27KA. The socket features an ULTRA-FLO valve with a very high flow coefficient. Working pressure: 35 bar. Flow rate: 2400 l/min, Pe=6 bar, Δp=0.5 bar – air, 37.5 l/min, Δp=1 bar, Kv=2.25 – water. Material: nickel-plated brass (socket body), hardened nickel-plated steel (sleeve), brass (valve), stainless steel (springs, balls, and ring). Sealing: NBR. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-27KATF06MPN	Quick coupling socket type 27 DN 10 with a 6 mm hose fitting, nickel-plated brass	6	35	In stock	Enquiry
RE-27KATF08MPN	Quick coupling socket 27KA DN10, for 8 mm hose, nickel-plated brass, NBR	8	35	In stock	Enquiry
RE-27KATF09MPN	Quick coupling socket 27KA DN10, for 9 mm hose, nickel-plated brass, NBR	8	35	In stock	Enquiry
RE-27KATF10MPN	Quick coupling socket 27KA DN10, for 10 mm hose, nickel-plated brass, NBR	10	35	In stock	Enquiry
RE-27KATF13MPN	Quick coupling socket 27KA DN10, for hose 13 mm, nickel-plated brass, NBR	12	35	In stock	Enquiry
RE-27KATF16MPN	Quick coupling socket 27KA DN10, for hose 16 mm, nickel-plated brass, NBR	16	35	In stock	Enquiry
RE-27KATF19MPN	Quick coupling socket 27KA DN10, for hose 19 mm, nickel-plated brass, NBR	20	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling socket with valve, standard EURO profile DN10, with hose end, series 27KA. The socket features an ULTRA-FLO valve with a very high flow coefficient. Working pressure: 35 bar. Flow rate: 2400 l/min, Pe=6 bar, Δp=0.5 bar – air, 37.5 l/min, Δp=1 bar, Kv=2.25 – water. Material: nickel-plated brass (socket body), hardened nickel-plated steel (sleeve), brass (valve), stainless steel (springs, balls, and ring). Sealing: NBR. Operating temperature: from -20°C to +100°C.
