Is the Quick-connection socket DN2.7 with bulkhead valve, with hose end, brass, series 20KA compatible with oxygen or other flammable gases?

Quick-connection socket DN2.7 with bulkhead valve, with hose end, brass, series 20KA is designed for water, air, nitrogen and other non-flammable gases. It uses brass components, AISI steels, and NBR seals and is specified for non-flammable media. Because oxygen and other oxidizing or flammable gases require materials, lubricants and seals certified for oxygen service (to avoid ignition, rapid combustion or degradation), and because NBR and standard brass/steel combinations are not rated for oxygen service, this product should not be considered compatible with oxygen or other flammable/oxidizing gases. Use only fittings explicitly specified and certified for oxygen/flammable-gas applications.

Does the Quick-connection socket DN2.7 with bulkhead valve, with hose end, brass, series 20KA require special maintenance intervals for use with compressed nitrogen?

Quick-connection socket DN2.7 with bulkhead valve, with hose end, brass, series 20KA Format; based on the provided specification, no special maintenance intervals are explicitly required for use with compressed nitrogen. The coupling is rated for nitrogen application, made of brass with NBR seals and stainless steel internals, and its operating temperature and pressure ratings (working pressure 35 bar, temp -20Â°C to +100Â°C) are compatible with typical nitrogen service. Standard maintenance best practices should be followed: regular visual inspection for wear, seal degradation or damage, periodic leak testing, and replacement of NBR seals if exposed to oils/chemicals or aging. Increase inspection frequency if used near pressure/temperature limits or in harsh environments.

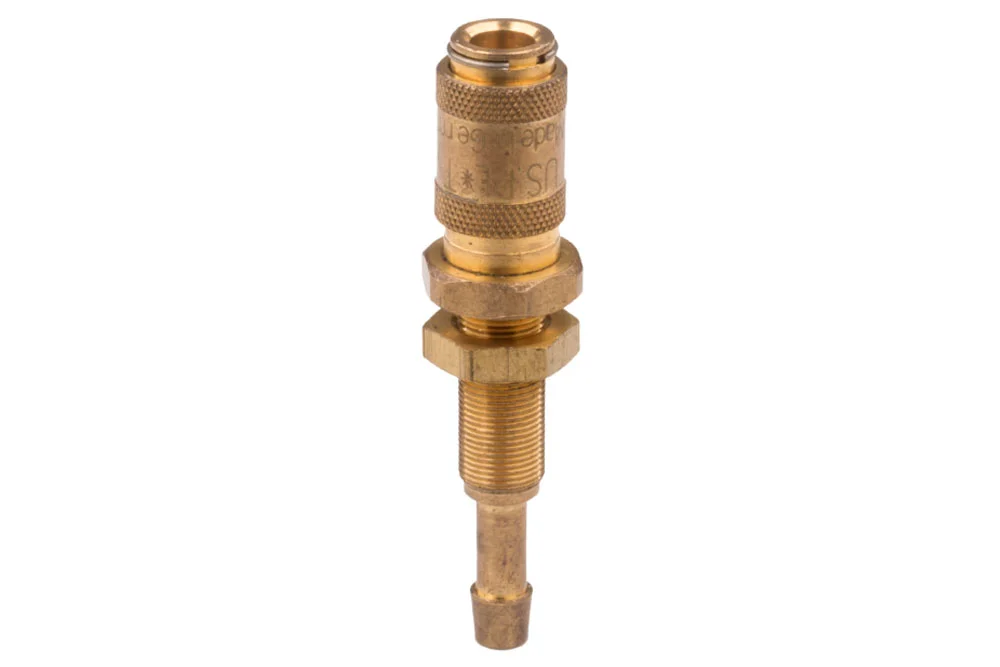

Quick-connection socket DN2.7 with bulkhead valve, with hose end, brass, series 20KA

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

Quick coupling socket with very small dimensions DN 2.7 series 20KA, single shut-off with valve, with a ribbed end for hose. Partition version, for panel mounting. Designed for water, air, nitrogen, and other non-flammable gases. Flow rate: 165 l/min, Pe = 6 bar, Δp=0.5 bar – air, 3 l/min, Δp=1 bar, KV=0.18 – water. Working pressure: 35 bar. Material: brass, AISI 301 steel (spring and ring), AISI 420 steel (balls). Sealing: NBR. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-20KATS03MPX	Quick coupling socket 20KA DN2.7, for 3 mm hose, partition, brass, NBR	3	35	In stock	Enquiry
RE-20KATS04MPX	Quick coupling socket 20KA DN2.7, for 4 mm hose, partition, brass, NBR	4	35	In stock	Enquiry
RE-20KATS06MPX	Quick coupling socket 20KA DN2.7, for 6 mm hose, partition, brass, NBR	6	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling socket with very small dimensions DN 2.7 series 20KA, single shut-off with valve, with a ribbed end for hose. Partition version, for panel mounting. Designed for water, air, nitrogen, and other non-flammable gases. Flow rate: 165 l/min, Pe = 6 bar, Δp=0.5 bar – air, 3 l/min, Δp=1 bar, KV=0.18 – water. Working pressure: 35 bar. Material: brass, AISI 301 steel (spring and ring), AISI 420 steel (balls). Sealing: NBR. Operating temperature: from -20°C to +100°C.
