Can the Bulkhead socket for hose, with valve, acetal, PLC series DN 6.3 be connected and disconnected with one hand while maintaining a secure, leak-free seal?

Yes. The Bulkhead socket for hose, with valve, acetal, PLC series DN 6.3 is designed for oneâhand connection and disconnection while maintaining a secure, leakâfree seal. Its characteristic design . without balls or a separate securing sleeve . enables quick, easy singleâhand operation. A tactile and audible click confirms correct engagement, and the NBR Oâring sealing combined with acetal construction maintains leakâtight performance. Rated for working pressures up to 8.3 bar and temperatures from â40Â°C to +82Â°C, it is suitable for washing installations, deionized water filtration, industrial machines and leak detection where reliable oneâhand coupling is required.

Is the Bulkhead socket for hose, with valve, acetal, PLC series DN 6.3 suitable for deionized water filtration and leak detection applications?

Yes. The Bulkhead socket for hose, with valve, acetal, PLC series DN 6.3 is suitable for deionized water filtration and leak detection applications. Reasoning: it is explicitly intended for deionized water filtration, is made of acetal (chemically resistant and dimensionally stable), uses an NBR Oâring seal, supports working pressure up to 8.3 bar, and operates from â40Â°C to +82Â°C. The oneâhand, ballâfree quick coupling with audible click provides secure, easy connections useful in leak detection and wash installations. Verify compatibility of NBR with your specific deionized water chemistry and any sterilization/cleaning agents used.

Does the Bulkhead socket for hose, with valve, acetal, PLC series DN 6.3 resist chemical degradation in deionized water?

Yes. the Bulkhead socket for hose, with valve, acetal, PLC series DN 6.3 is suitable for use with deionized water and resists chemical degradation in that medium. Rationale: - Body material is acetal (POM), which has very good resistance to pure water, including deionized water; it does not hydrolyze or degrade under normal exposure to DI water. - Sealing is an NBR O-ring. NBR is compatible with water; while not as chemically resistant as some elastomers, it performs well with deionized water at the listed temperatures and pressures. - Operating temperature range (â40Â°C to +82Â°C) and working pressure (up to 8.3 bar) cover typical conditions for DI water filtration and washing installations. - The product description explicitly lists deionized water filtration and washing installations among intended applications, indicating design suitability. Notes/limits: - Avoid prolonged exposure to strong oxidizers, aggressive solvents, or extreme pH conditions; acetal and NBR can be affected by certain chemicals even if they tolerate DI water. - For ultrapure/semiconductor-grade applications where leachables and extractables matter, verify purity/specification requirements and consider alternative materials or special-grade elastomers if needed. Conclusion: For standard deionized water washing and filtration uses, the Bulkhead socket for hose, with valve, acetal, PLC series DN 6.3 resists chemical degradation and is appropriate.

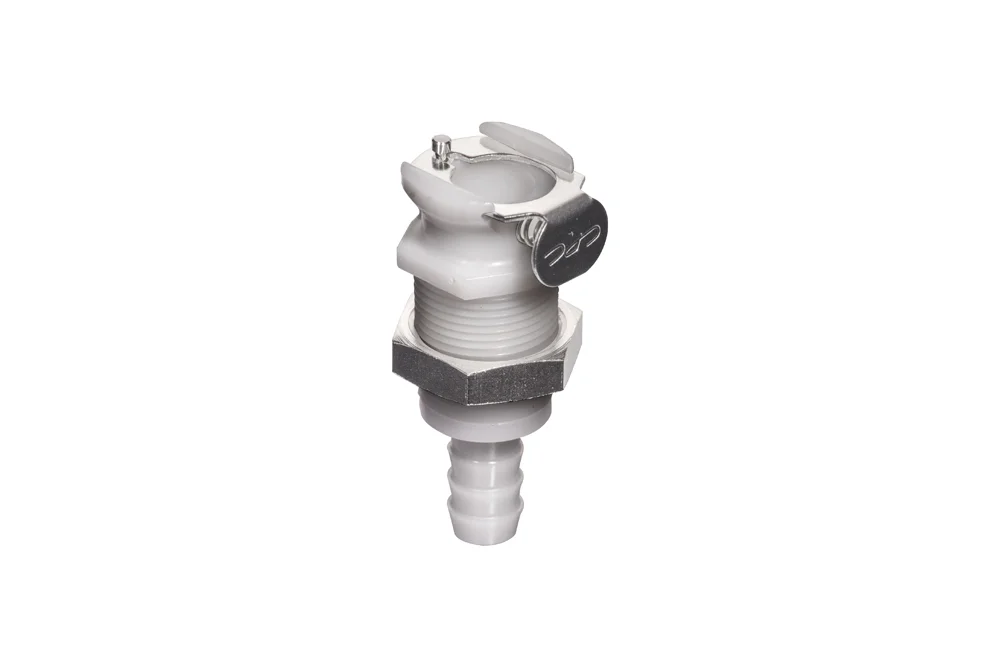

Socket bulkhead quick coupling for hose, with valve, acetal, series PLC DN 6.3

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)

Medium size socket bulkhead quick coupling with fitting for hose intended for installations washing, filtration water deionized, machines industrial, detection leakage, itp. The characteristic design (it does not contain balls and a locking sleeve) allows easier, secure one-hand connection and disconnection. An audible click signals a successful connection. Length L – total length. Material: acetal. Sealing: O-ring with NBR. Working pressure: for 8.3 bar. Operating temperature: from -40°C to +82°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CC-PLV-07-AC	Socket PLC DN6.4 for hose 1/4" with nut, with a valve, bulkhead, acetal	-	8.3	In stock	Enquiry
CC-PLV-08-AC	Socket PLC DN6.4 for hose 5/16" with nut, with a valve, bulkhead, acetal	-	8.3	In stock	Enquiry
CC-PLV-09-AC	Socket PLC DN6.4 for hose 3/8" with nut, with a valve, bulkhead, acetal	-	8.3	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Medium size socket bulkhead quick coupling with fitting for hose intended for installations washing, filtration water deionized, machines industrial, detection leakage, itp. The characteristic design (it does not contain balls and a locking sleeve) allows easier, secure one-hand connection and disconnection. An audible click signals a successful connection. Length L – total length. Material: acetal. Sealing: O-ring with NBR. Working pressure: for 8.3 bar. Operating temperature: from -40°C to +82°C.
