Can the NiTO SS water quick connector socket with GW, stainless steel (AISI 316L) be used for steam applications up to 150Â°C and 25 bar?

Yes. The NiTO SS water quick connector socket with GW, stainless steel (AISI 316L) can be used for steam applications up to 150Â°C and 25 bar only if those conditions match its specified limits and the steam is compatible with the Viton sealing. The product specification lists working pressure 25 bar and operating temperature â20Â°C to +150Â°C, and sealing material Viton. Important considerations: - Viton (FKM) is generally suitable for high-temperature steam up to ~150Â°C, but prolonged exposure to saturated steam or aggressive steam chemistries can degrade elastomers faster than dry heat. Confirm compatibility for your specific steam type (saturated, superheated, steam with additives). - Ensure the application does not require direct connection between incompatible sizes (the socket and plug must match thread/size). - AISI 316L is appropriate for hygienic/corrosion-resistant environments and steam, but verify any regulatory or safety requirements for steam service in your system. If you need guaranteed long-term performance in steam, consider consulting the manufacturer or specifying steam-rated seals (e.g., PTFE) or validated steam-compatible variants.

Is the NiTO SS water quick connector socket with GW, stainless steel suitable for food and medical environments at 25 bar and up to 150Â°C?

Yes. The NiTO SS water quick connector socket with GW, stainless steel (AISI 316L) is specified for use in environments with increased hygiene and corrosion-resistance requirements (e.g., food industry, hospitals). It supports a working pressure of 25 bar and an operating temperature range of â20Â°C to +150Â°C. Sealing material is Viton. Therefore it is suitable for food and medical environments at 25 bar and up to 150Â°C, provided that system compatibility (no direct connection of differing sizes/standards) and any regulatory/cleaning/sanitation validation required by your facility are met.

Can the NiTO SS water quick connector socket with GW, stainless steel (AISI 316L) be used for potable water systems at 25 bar and up to 150Â°C?

Yes. The NiTO SS water quick connector socket with GW, stainless steel can be used for potable water systems at up to 25 bar and temperatures up to 150Â°C, based on the provided specification. Key points supporting suitability: - Material: AISI 316L stainless steel is widely accepted for potable water and hygienic applications (food industry, hospitals) due to excellent corrosion resistance and cleanability. - Pressure: Rated working pressure is 25 bar, matching your requirement. - Temperature: Operating range includes up to +150Â°C, so it meets the stated maximum. - Sealing: Viton (FKM) seals are compatible with hot water in many applications and tolerate the stated temperature; however, compatibility with potable water should be confirmed against local regulations, as some jurisdictions restrict certain elastomers for drinking water. - Installation note: Do not directly connect mismatched sizes (e.g., socket 1/2â³ with plug 3/4â³) as specified. Caveats: verify local potable-water approvals/certifications (e.g., NSF/WRAS/ACS) for both the connector and the Viton seal, and confirm any regulatory or health authority requirements in your jurisdiction before use in a public drinking-water system.

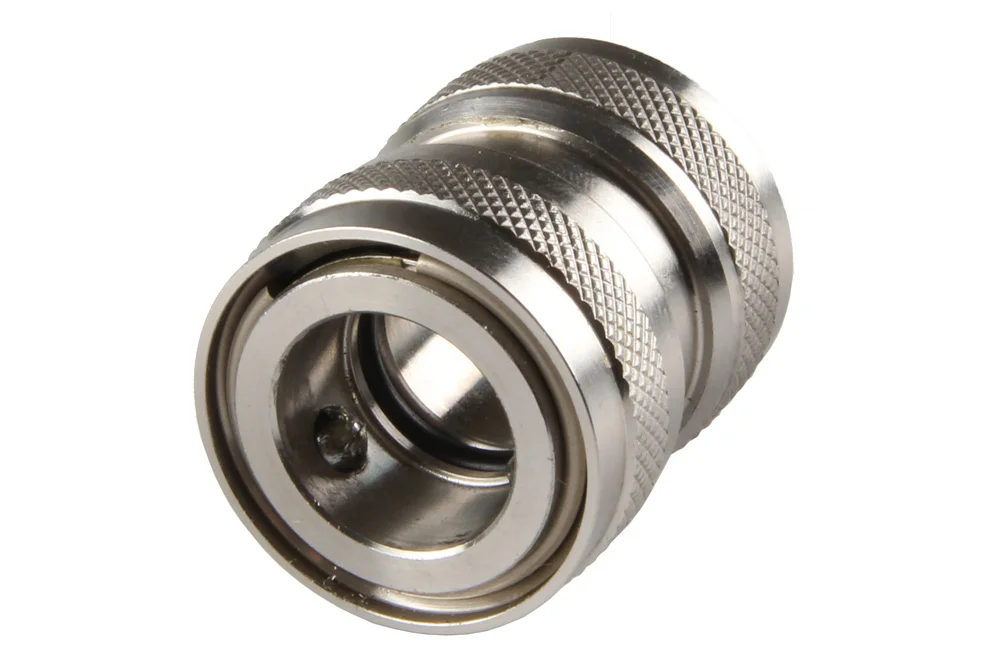

NiTO SS water quick connector socket with GW, stainless steel

All products, Quick couplings for water/

Additional information

Material	SS – stainless steel

Quick coupling socket NiTO made of AISI 316L stainless steel with internal BSP thread. Used in conditions with increased hygiene and corrosion resistance requirements (e.g., food industry, hospitals). Direct connection of components from different systems is not allowed, e.g., socket 1/2″ with plug 3/4″. Material: AISI 316L steel. Working pressure: 25 bar. Operating temperature: from -20°C to +150°C. Sealing material: viton.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NT-54500A3	Quick coupling socket 1/2", G 1/2" BSP, stainless steel, Viton	-	25	In stock	Enquiry
NT-54520A3	Quick coupling socket 1/2", G 3/4" BSP, stainless steel, Viton	-	25	In stock	Enquiry
NT-64500A3	Quick coupling socket 3/4", G 3/4" BSP, stainless steel, Viton	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling socket NiTO made of AISI 316L stainless steel with internal BSP thread. Used in conditions with increased hygiene and corrosion resistance requirements (e.g., food industry, hospitals). Direct connection of components from different systems is not allowed, e.g., socket 1/2″ with plug 3/4″. Material: AISI 316L steel. Working pressure: 25 bar. Operating temperature: from -20°C to +150°C. Sealing material: viton.
