Is the Quick-connect socket with GZ NPT, with valve, polypropylene, PLC series DN 6,3 compatible with deionized water and safe at 8.3 bar?

Yes. Quick-connect socket with GZ NPT, with valve, polypropylene, PLC series DN 6,3 is compatible with deionized water and safe at 8.3 bar. Rationale: the product description explicitly lists deionized water filtration as an intended application, the body material is polypropylene (chemically resistant to pure water), and sealing uses an EPDM Oâring (suitable for water and commonly used with deionized water). The stated working pressure is up to 8.3 bar, so operation at or below that pressure is within specification. Operating temperature range 0Â°C to +71Â°C should also be observed. Ensure cleanliness and proper installation; avoid pressures or temperatures beyond the specified limits.

Can the Quick-connect socket with GZ NPT, with valve, polypropylene, PLC series DN 6,3 be used reliably in leak detection systems with deionized water?

Yes - the Quick-connect socket with GZ NPT, with valve, polypropylene, PLC series DN 6,3 can be used reliably in leak detection systems with deionized water, with these caveats: polypropylene body is compatible with deionized water; EPDM O-ring offers good chemical resistance for water but verify compatibility with ultra-pure water for your purity requirements (EPDM can leach organics in some ultra-pure applications). Working pressure up to 8.3 bar and temperature range 0â71Â°C suit most leak detection systems. The valve and one-hand, ball-free design with audible click ensure secure, quick connections. For critical high-purity or long-term corrosion-sensitive systems, consider stainless fittings or fluoropolymer seals and perform validation (material leach testing, prolonged immersion, and pressure cycling).

Can the Quick-connect socket with GZ NPT, with valve, polypropylene, PLC series DN 6,3 be safely autoclaved or disinfected for washing installations?

No. the Quick-connect socket with GZ NPT, with valve, polypropylene, PLC series DN 6,3 is not suitable for standard autoclaving cycles and has limited disinfection options. Why: The product is made of polypropylene with an EPDM O-ring and is rated for operating temperatures from 0Â°C to +71Â°C. Typical autoclave sterilization uses saturated steam at 121Â°C (or higher), far above the rated maximum temperature; exposure would deform or warp the polypropylene, damage the valve geometry and compromise seals. EPDM O-rings are also degraded by prolonged heat and steam, causing loss of sealing integrity. Disinfection/washing guidance: You can disinfect and wash installations that include the Quick-connect socket with GZ NPT, with valve, polypropylene, PLC series DN 6,3 only using chemical agents and temperatures within the stated limits. Recommended practices: - Use chemical disinfectants compatible with polypropylene and EPDM (e.g., diluted alcohol-based, certain chlorine solutions at controlled concentrations) and follow manufacturer chemical-compatibility data. - Keep wash/disinfection fluid temperature below +71Â°C. - Avoid aggressive solvents, strong acids/alkalis or oxidizers that attack polypropylene or EPDM. - Rinse thoroughly after chemical disinfection to remove residues. - Inspect seals and valve function after repeated cycles; replace O-rings if swelling, cracking or leakage appears. If autoclave-level sterilization is required, use components specified for high-temperature steam sterilization or consult the manufacturer for alternative materials/components rated for autoclaving.

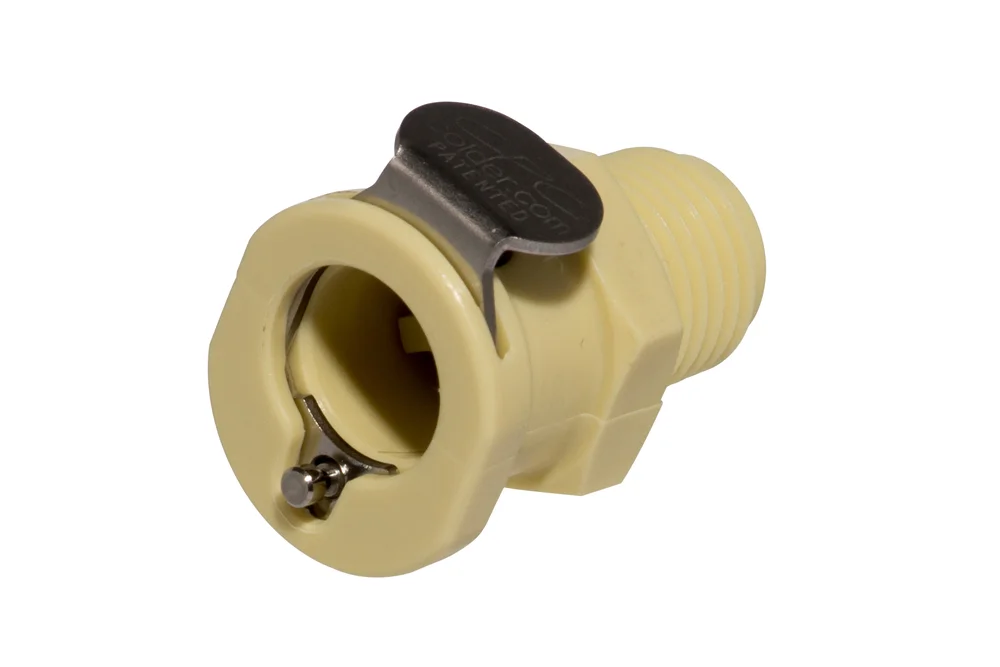

Quick-connect socket with GZ NPT, with valve, polypropylene, PLC series DN 6,3

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)

Medium-sized quick coupling socket with external NPT thread intended for washing installations, deionized water filtration, industrial machines, leak detection, etc. The characteristic design (does not include balls and a protective sleeve) allows for easier, secure connection and disconnection with one hand. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: polypropylene. Sealing: EPDM o-ring. Working pressure: up to 8.3 bar. Operating temperature: from 0°C to +71°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CC-PLV-01-PP	PLC socket DN6.4 with GZ 1/4" NPT, with valve, polypropylene	-	8.3	In stock	0 zł		Enquiry
CC-PLV-02-PP	PLC socket DN6.4 with GZ 3/8" NPT, with valve, polypropylene	-	8.3	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Medium-sized quick coupling socket with external NPT thread intended for washing installations, deionized water filtration, industrial machines, leak detection, etc. The characteristic design (does not include balls and a protective sleeve) allows for easier, secure connection and disconnection with one hand. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: polypropylene. Sealing: EPDM o-ring. Working pressure: up to 8.3 bar. Operating temperature: from 0°C to +71°C.
