Is the Hose quick connect plug with nut and valve, acetal, PMC series DN 3.2 suitable for use with medical gas detection equipment at up to 8.3 bar?

Yes. The Hose quick connect plug with nut and valve, acetal, PMC series DN 3.2 is specified for gas detection and medical devices, has a working pressure up to 8.3 bar, and an operating temperature range of â40Â°C to +82Â°C. Material (acetal with NBR Oâring) and the audible click feature support a reliable seal. Based on the provided description, it is suitable for use with medical gas detection equipment at pressures up to 8.3 bar, assuming no additional regulatory, compatibility (specific gas materials), or installation requirements apply.

Can the Hose quick connect plug with nut and valve, acetal, PMC series DN 3.2 be autoclaved or sterilized for medical device use without damaging the acetal or NBR O-ring?

Based on the provided specification, the Hose quick connect plug with nut and valve, acetal, PMC series DN 3.2 is made of acetal (POM) with an NBR (nitrile) Oâring and rated for an operating temperature range of â40Â°C to +82Â°C. Standard autoclave sterilization (steam at 121Â°Câ134Â°C) exceeds this temperature range and will likely deform or degrade acetal and accelerate NBR aging, causing loss of mechanical integrity, dimensional change, leaks, or Oâring failure. Chemical sterilants (e.g., ethylene oxide, hydrogen peroxide plasma) may be less thermally stressful but can still affect NBR compatibility and require validation. Conclusion: Do not autoclave with steam; any sterilization method for medical use must be validated for this specific Hose quick connect plug with nut and valve, acetal, PMC series DN 3.2 to ensure no damage or loss of function.

Can the Hose quick connect plug with nut and valve, acetal, PMC series DN 3.2 be used safely with chemical analyzers handling corrosive gases?

Hose quick connect plug with nut and valve, acetal, PMC series DN 3.2 may be usable with chemical analyzers handling corrosive gases in some cases, but safety depends on the specific gases and conditions. Key points to consider: - Material compatibility: The body is acetal (POM) with an NBR (nitrile) Oâring. Acetal has moderate chemical resistance but is attacked by strong oxidizers (e.g., concentrated nitric acid, chlorine) and some halogenated solvents. NBR is resistant to many hydrocarbons but degrades with strong acids, ketones, and some chlorinated/fluorinated solvents. For aggressive or highly corrosive gases (chlorine, fluorine, nitric oxide at high concentrations, phosgene, HCl, HBr, SO2 under certain conditions), acetal/NBR is often unsuitable. - Pressure and temperature: Rated to 8.3 bar and â40Â°C to +82Â°C. Ensure your analyzerâs operating pressure and temperature stay within those limits with safety margins. - Application intent: The product description lists chemical analyzers among intended uses, indicating design for gas service, but that does not guarantee compatibility with all corrosive species or concentrations. - Seal integrity: Audible click indicates mechanical engagement but does not replace chemical compatibility and longâterm seal performance under corrosive exposure. - Recommendations: - Check chemical compatibility charts for acetal and NBR against the exact gases, concentrations, and any contaminants (moisture, solvents, byproducts). - For highly corrosive or oxidizing gases, consider alternative materials (e.g., PTFE, PFA, PVDF, stainless steel with appropriate seals like FFKM/Viton or PTFE) rated for your gases. - Validate with manufacturer data or request material/certification confirmation from the supplier. - Perform leak/aging tests under representative conditions before operational use. Conclusion: Do not assume safe use with corrosive gases without verifying material compatibility and operating conditions. For many mildly corrosive or inert gases within the stated pressure/temperature range it may be acceptable; for strongly corrosive gases, choose more resistant materials.

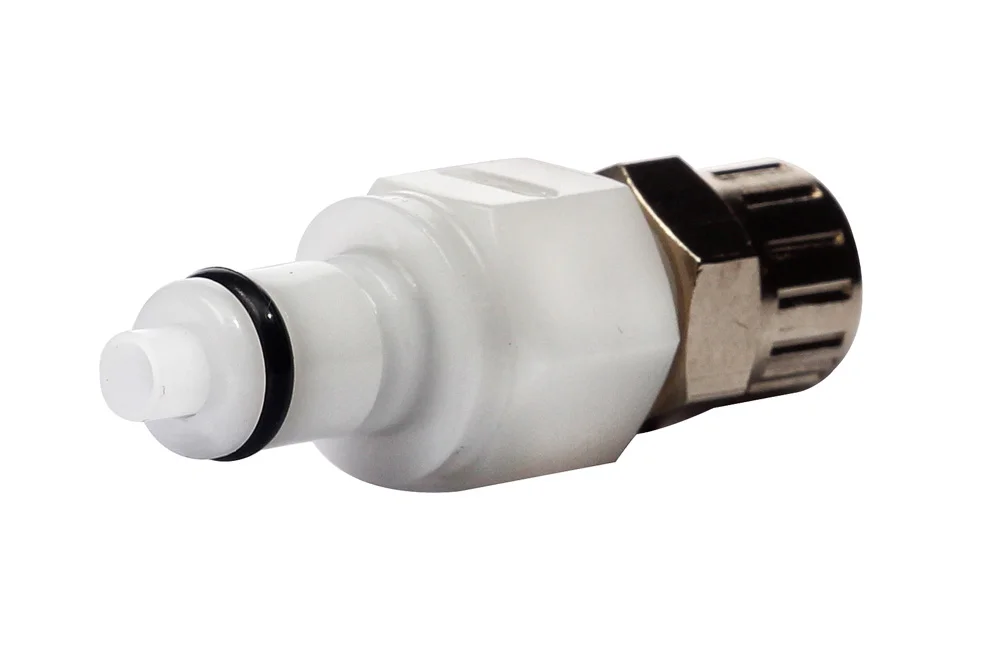

Hose quick connect plug with nut and valve, acetal, PMC series DN 3.2

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)
Standard length [m]	30

Quick-connect plug for hose with nut and valve is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal (o-ring NBR). Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CC-PMV-27-AC	PMC DN3.2 plug for 4x2 hose with nut, with valve, acetal	2	8.3	In stock	Enquiry
CC-PMV-28-AC	PMC DN3.2 plug for 4x2.5 hose with nut, with valve, acetal	3	8.3	In stock	Enquiry
CC-PMV-29-AC	PMC DN3.2 plug for hose 6.4x4.3 with nut, with valve, acetal	4	8.3	In stock	Enquiry
CC-PMV-30-AC	PMC DN3.2 plug for hose 9.5x6.4 with nut, with valve, acetal	6	8.3	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-connect plug for hose with nut and valve is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal (o-ring NBR). Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.
