How do I adjust the flow on the Control valve for pneumatic tools, aluminium to suit different pneumatic tools?

To adjust the flow on the Control valve for pneumatic tools, aluminium to suit different pneumatic tools, follow these steps: 1. Ensure safety: depressurize the system before making adjustments. Wear eye and hearing protection and secure the tool. 2. Connect the valve between the air supply and the pneumatic tool. Verify connections are tight and rated for up to 15 bar. 3. Start with low pressure: set your compressor regulator to a safe working pressure appropriate for the tool. 4. Use the knob: turn the knob on the Control valve for pneumatic tools, aluminium clockwise to reduce flow (and thus slow the tool or reduce force) and counterclockwise to increase flow. Make small adjustments while the tool is running to observe effects. 5. Fine-tune under load: operate the tool and make incremental knob adjustments until you reach desired speed, torque or blow-off performance. Balance flow setting with supply pressure to avoid stalling or excessive wear. 6. Lock or mark setting: if repeated use requires the same flow, note the knob position or use a marker/lock to reproduce the setting. 7. Check limits: do not exceed the maximum working pressure (15 bar). Because the valve is lightweight aluminum (18 g), avoid overtightening fittings or subjecting it to mechanical stress. 8. Test for leaks and performance: after adjustment, inspect connections for leaks and confirm the tool performs reliably at the set flow. These steps let you tailor airflow quickly and safely for different pneumatic tools using the Control valve for pneumatic tools, aluminium.

Can the Control valve for pneumatic tools, aluminium be used with pressures up to 15 bar without performance loss?

Yes. The Control valve for pneumatic tools, aluminium is specified with a maximum working pressure of 15 bar, so it can be used up to 15 bar without indicated performance loss. It is a compact aluminium valve designed to regulate maximum compressed air flow (e.g., for pneumatic tools) with an adjustable knob for easy flow control. Ensure installation and operating conditions (temperature, fittings, and duty cycle) match manufacturer recommendations; exceedance of 15 bar risks damage or degraded performance.

Is the Control valve for pneumatic tools, aluminium compatible with different connector types?

Control valve for pneumatic tools, aluminium: Compatibility with different connector types depends on the specific connector format (thread size/type, push-in fitting, hose barb, etc.) of the valve body. The provided description specifies a compact aluminium valve that regulates compressed air flow, with a knob for adjustment, maximum working pressure 15 bar and weight 18 g, but does not list the connector type(s) or thread standards. Therefore, you cannot assume universal compatibility: if the valve is sold without a specified connector, it may require an adapter or a specific mating fitting. To confirm compatibility, check the productâs technical specifications or datasheet for the connector type (e.g. G (BSP), NPT, metric thread, push-to-connect size, or hose barb diameter) and compare with your pneumatic fittings. If the supplier provides multiple variants, choose the one matching your connector standard or obtain the appropriate adapter.

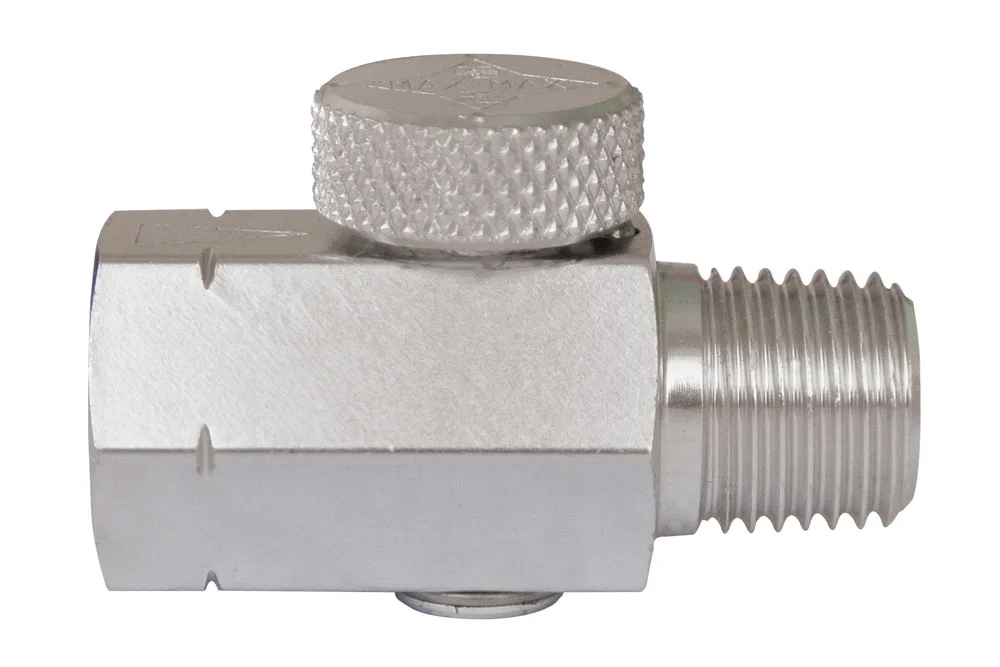

Control valve for pneumatic tools, aluminium

All products, Pneumatic accessories/

Additional information

Material	AL – aluminum

Compact valve regulating maximum compressed air flow for use with, for example, pneumatic tools. The knob allows for easy flow adjustment. Maximum working pressure: 15 bar. Material: aluminum. Weight: 18 g.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
EW-735020	Maximum flow regulating valve 1/4", aluminum	-	15	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Compact valve regulating maximum compressed air flow for use with, for example, pneumatic tools. The knob allows for easy flow adjustment. Maximum working pressure: 15 bar. Material: aluminum. Weight: 18 g.
