Is the SAE 6000 / GW BSP counter flange, carbon steel, type D6 suitable for operating temperatures between -20Â°C and +100Â°C?

Yes. The SAE 6000 / GW BSP counter flange, carbon steel, type D6 is specified with an operating temperature range from -20Â°C to +100Â°C, so it is suitable for use within that temperature interval. Ensure that any connected components, seals, and the galvanized carbon steel material are compatible with your specific service conditions (pressure, media, thermal cycling) and that installation follows manufacturer guidelines, since the product description notes it is supplied without mounting screws and sealing.

Can SAE 6000 / GW BSP counter flange, carbon steel, type D6 perform reliably across -20Â°C to +100Â°C without modifications?

Yes. SAE 6000 / GW BSP counter flange, carbon steel, type D6 (SAE 6000 backing flange with internal thread for connection to flange fitting, without mounting screws and sealing. Material: carbon steel, galvanized. Operating temperature: from -20Â°C to +100Â°C) is specified for an operating range of -20Â°C to +100Â°C, so it can perform reliably within that range without modifications, provided installation follows intended use and system pressures, sealing and mounting are addressed separately (the product lacks mounting screws and sealing). Ensure compatibility with media, galvanizing, and system pressure/standard requirements for full reliability.

Does SAE 6000 / GW BSP counter flange, carbon steel, type D6 require special preparation for use at -20Â°C to +100Â°C?

No special preparation is required. The SAE 6000 / GW BSP counter flange, carbon steel, type D6 (backing flange with internal thread for connection to flange fitting, without mounting screws and sealing) is specified for an operating temperature range of â20Â°C to +100Â°C. Given that the material is carbon steel, galvanized, and the temperature range covers the intended use, standard installation procedures apply. Ensure proper mating flange, compatible sealing components, correct torque on any mounting screws (when used), and routine inspection for corrosion or damage as part of normal maintenance. If service conditions include aggressive chemicals, prolonged moisture, or cyclic thermal extremes beyond the specified range, consult the manufacturer for suitability or additional protective measures.

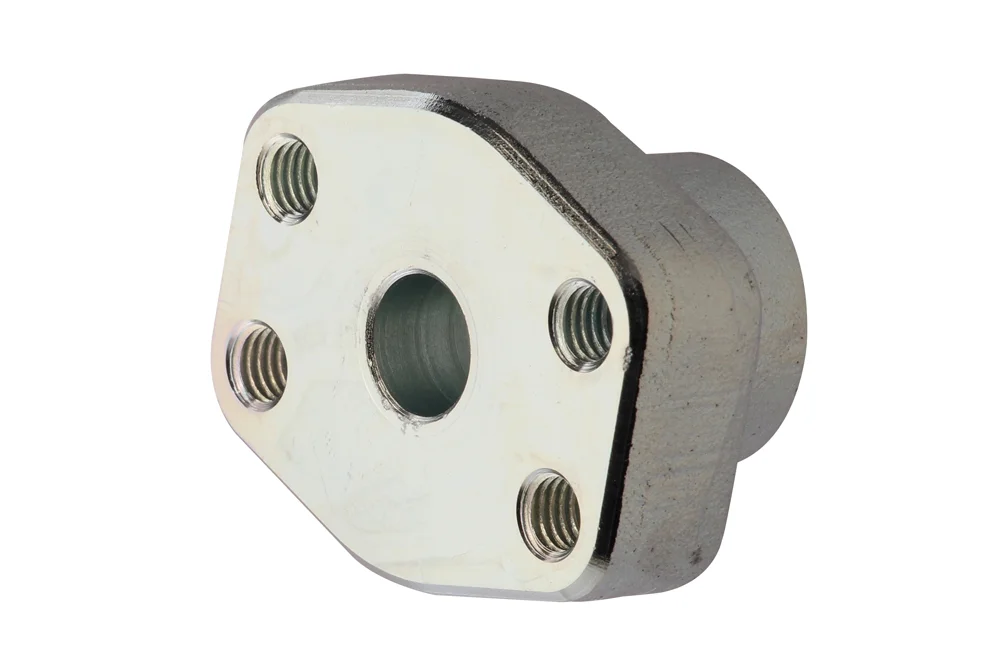

SAE 6000 / GW BSP counter flange, carbon steel, type D6

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

SAE 6000 backing flange with internal thread for connection to flange fitting, without mounting screws and sealing. Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-D6-BX-08-06	SAE 6000 counter flange 1/2", 3/8" BSP male thread	-	420	In stock	Enquiry
HK-D6-BX-08-08	SAE 6000 counter flange 1/2", 1/2" BSP male thread	-	420	In stock	Enquiry
HK-D6-BX-12-12	SAE 6000 counter flange 3/4", 3/4" BSP female thread	-	420	In stock	Enquiry
HK-D6-BX-16-16	SAE 6000 counter flange 1", 1" BSP thread	-	420	In stock	Enquiry
HK-D6-BX-20-20	SAE 6000 counter flange 1.1/4", G 1.1/4" BSP	-	420	In stock	Enquiry
HK-D6-BX-24-24	SAE 6000 backing flange 1.1/2", G 1.1/2" BSP	-	420	In stock	Enquiry
HK-D6-BX-32-32	SAE 6000 counter flange 2", 2" BSP female thread	-	420	In stock	Enquiry
HK-D6-BX-40-40	SAE 6000 counter flange 2.1/2", G 2.1/2" BSP	-	420	In stock	Enquiry
HK-D6-BX-48-48	SAE 6000 counterflange 3", 3" BSP female thread	-	420	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

SAE 6000 backing flange with internal thread for connection to flange fitting, without mounting screws and sealing. Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.
