Is the Flanged connection SAE 6000 / GZ BSP, carbon steel, type C6 compatible with hydraulic systems operating at temperatures between -20Â°C and +100Â°C?

Yes. The Flanged connection SAE 6000 / GZ BSP, carbon steel, type C6 Format is specified for hydraulic system use and has an operating temperature range of -20Â°C to +100Â°C, matching your stated system temperatures. It features a compact design, external BSP thread, carbon steel (galvanized) construction, and is supplied with mounting screws and an NBR O-ring seal. Note the following considerations: - The NBR (nitrile) O-ring is generally suitable for temperatures up to +100Â°C but can lose elasticity and chemical resistance near the upper limit and below â20Â°C; verify compatibility with your specific hydraulic fluid and duty cycle. - Galvanized carbon steel provides good mechanical strength and corrosion resistance for many applications, but assess environmental conditions (e.g., highly corrosive atmospheres) that might require alternative materials or coatings. - Ensure the flange and BSP thread meet your system pressure ratings and hydraulic standards. If your fluid, pressure, or environmental conditions are within typical ranges and compatible with NBR and galvanized carbon steel, the Flanged connection SAE 6000 / GZ BSP, carbon steel, type C6 Format is compatible.

Can the Flanged connection SAE 6000 / GZ BSP, carbon steel, type C6 be used in hydraulic systems with NBR O-ring seals?

Yes. The Flanged connection SAE 6000 / GZ BSP, carbon steel, type C6 is specified for hydraulic systems and is supplied with an NBR O-ring seal. With operating temperature range â20Â°C to +100Â°C, NBR is suitable for many hydraulic fluids (mineral oils) within that range. The carbon steel, galvanized construction and included mounting screws match typical hydraulic applications. Ensure the specific hydraulic fluid and pressure are compatible with NBR and the SAE 6000/GZ BSP sealing design; if fluids are synthetic, hot (>100Â°C), or contain aggressive additives, verify chemical and temperature compatibility before use.

Does the Flanged connection SAE 6000 / GZ BSP, carbon steel, type C6 include mounting screws and an NBR O-ring?

Yes. The Flanged connection SAE 6000 / GZ BSP, carbon steel, type C6 is supplied with mounting screws and an NBR O-ring. The product description explicitly states it is supplied with mounting screws and an O-ring seal (NBR).

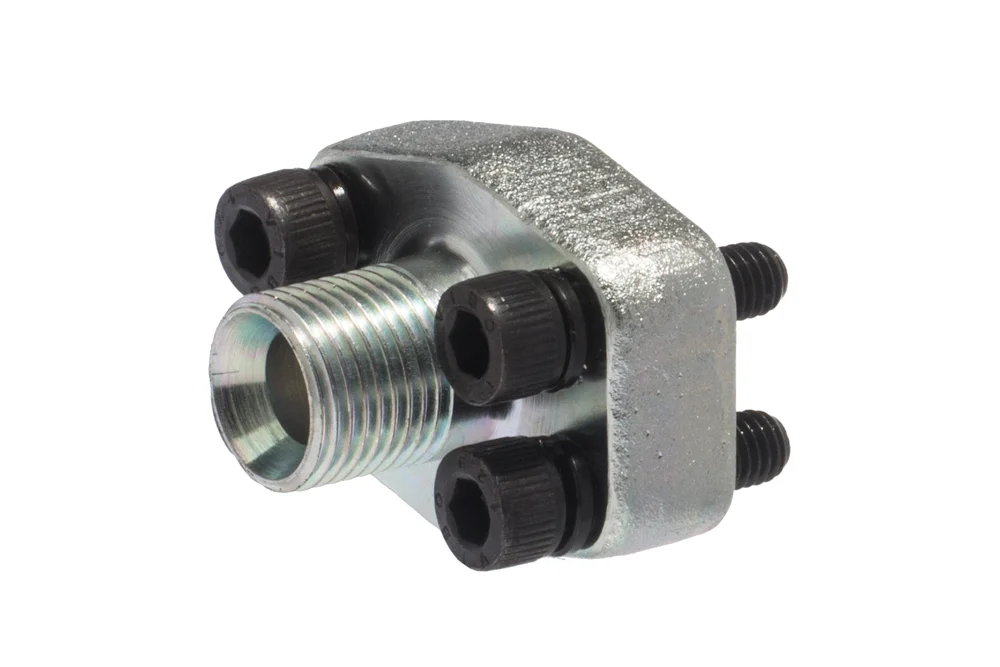

Flanged connection SAE 6000 / GZ BSP, carbon steel, type C6

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

SAE 6000 flange connection with a compact design and external BSP thread for use in hydraulic systems. Supplied with mounting screws and an O-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-C6-B-08-06	SAE 6000 1/2" collar fitting, GZ 3/8" BSP	-	420	In stock	Enquiry
HK-C6-B-08-08	SAE 6000 collar fitting 1/2", G 1/2" BSP	-	420	In stock	Enquiry
HK-C6-B-08-12	SAE 6000 collar fitting 1/2", GZ 3/4" BSP	-	420	In stock	Enquiry
HK-C6-B-12-08	SAE 6000 collar fitting 3/4", G 1/2" BSP	-	420	In stock	Enquiry
HK-C6-B-12-12	SAE 6000 collar fitting 3/4", G 3/4" BSP	-	420	In stock	Enquiry
HK-C6-B-12-16	SAE 6000 collar fitting 3/4", G1" BSP	-	420	In stock	Enquiry
HK-C6-B-16-12	SAE 6000 1" flange, GZ 3/4" BSP	-	420	In stock	Enquiry
HK-C6-B-16-16	SAE 6000 flange fitting 1", G 1" BSP	-	420	In stock	Enquiry
HK-C6-B-16-20	SAE 6000 1" flange fitting, GZ 1.1/4" BSP	-	420	In stock	Enquiry
HK-C6-B-20-16	SAE 6000 flange fitting 1.1/4", GZ 1" BSP	-	420	In stock	Enquiry
HK-C6-B-20-20	SAE 6000 flange fitting 1.1/4", GZ 1.1/4" BSP	-	420	In stock	Enquiry
HK-C6-B-20-24	SAE 6000 flange fitting 1.1/4", GZ 1.1/2" BSP	-	420	In stock	Enquiry
HK-C6-B-24-20	SAE 6000 flange fitting 1.1/2", G1.1/4" BSP	-	420	In stock	Enquiry
HK-C6-B-24-24	SAE 6000 flange fitting 1.1/2", G 1.1/2" BSP	-	420	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

SAE 6000 flange connection with a compact design and external BSP thread for use in hydraulic systems. Supplied with mounting screws and an O-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.
