Is the SAE 6000 SUPERCAT 90Â° flange end, type ZSK213, carbon steel compatible with standard hydraulic crimping sleeves for SAE 6000 hoses?

Yes. The SAE 6000 SUPERCAT 90Â° flange end, type ZSK213, carbon steel is designed specifically for crimping in hydraulic and industrial hose assemblies and is compatible with standard hydraulic crimping sleeves that match the SAE 6000 hose series. Key points: - The fitting is intended for crimping applications, so its geometry and material (carbon steel, galvanized) are suitable for standard crimping processes. - Compatibility requires using a crimping sleeve sized and specified for SAE 6000 hoses; use the sleeve profile and dimensions recommended for the specific hose inner diameter and reinforcement type. - Ensure your crimping machine and die set are rated for the hose and sleeve combination and follow manufacturer crimp specifications (crimp diameter, pressure, and inspection criteria). - Verify chemical, pressure and temperature requirements for the application; galvanized carbon steel is typical for hydraulic service but confirm corrosion and pressure limits for your system. In summary: SAE 6000 SUPERCAT 90Â° flange end, type ZSK213, carbon steel is compatible with standard hydraulic crimping sleeves for SAE 6000 hoses, provided you use the correct sleeve size/profile and follow the hose and crimping equipment manufacturerâs specifications.

Can SAE 6000 SUPERCAT 90Â° flange end, type ZSK213, carbon steel be used with crimping sleeves specified for other SAE 6000 hose variants?

No - SAE 6000 SUPERCAT 90Â° flange end, type ZSK213, carbon steel must be crimped with a sleeve specifically matched to the SAE 6000 hose variant it is intended for. Although the fitting is designed for crimping in hydraulic and industrial hoses and uses a suitable crimping sleeve, sleeves specified for other SAE 6000 hose variants may differ in internal diameter, profile, wall thickness or locking geometry. Using an incompatible sleeve risks poor crimp integrity, leaks, reduced pressure rating and potential failure. Always use the crimping sleeve specified for the exact SAE 6000 hose variant and follow manufacturer crimping specifications.

Does the SAE 6000 SUPERCAT 90Â° flange end, type ZSK213, carbon steel require specific crimping sleeve dimensions?

Yes. The SAE 6000 SUPERCAT 90Â° flange end, type ZSK213, carbon steel requires a crimping sleeve matched to the hose type and dimensions. The fitting itself is designed for crimp-style assembly, so you must use a sleeve whose internal diameter, wall thickness and length are specified for the hose and the SAE 6000 SUPERCAT geometry. Using an incorrect sleeve can cause poor seal, hose slippage or fitting failure. Practical steps: - Consult the hose manufacturerâs crimp specification chart for the exact sleeve dimensions compatible with your hose inner/outer diameter and reinforcement type. - Ensure the sleeve profile matches crimping dies rated for SAE 6000 / SUPERCAT 90Â° flange assemblies. - Verify sleeve material and galvanization are suitable for your application (carbon steel, plated as required). - Perform a sample crimp and pressure test per industry/hose manufacturer standards. In short: SAE 6000 SUPERCAT 90Â° flange end, type ZSK213, carbon steel does require a correctly sized crimping sleeve specified for the hose and fitting; follow hose-manufacturer and crimper tooling specifications.

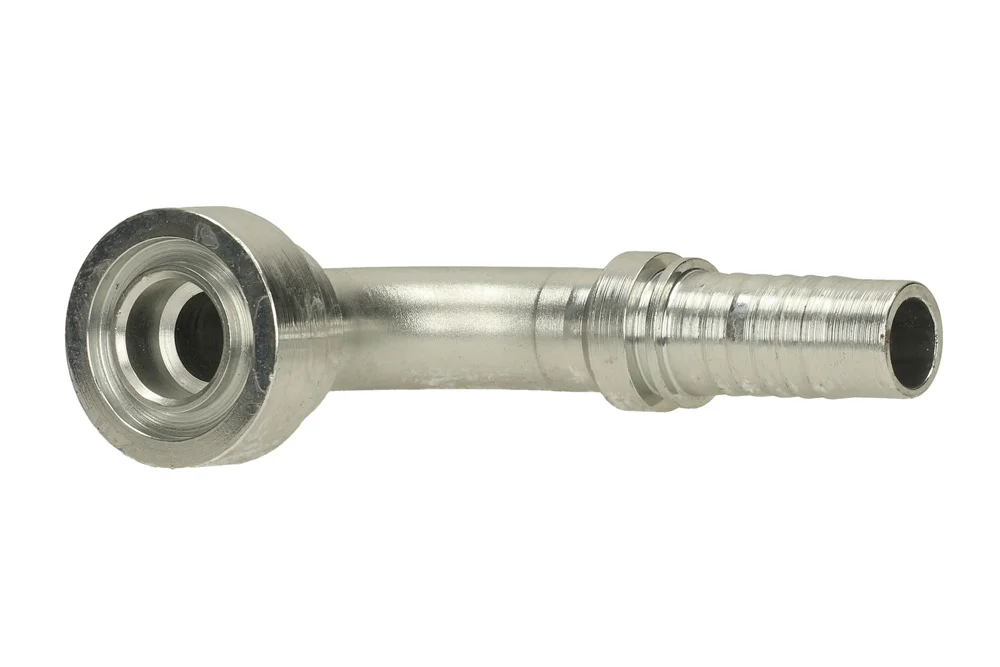

Fitting flange SAE 6000 SUPERCAT 90°, type ZSK213, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Fitting flange SAE 6000 SUPERCAT (SFS), angled 90°. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZSK213-12-12	Flange fitting 90° SAE 3/4",hose 3/4" SUPERCAT	20	-	In stock	Enquiry
TI-ZSK213-16-12	Flange fitting 90° SAE 1", hose 3/4" SUPERCAT	20	-	In stock	Enquiry
TI-ZSK213-16-16	Flange fitting 90° SAE 1", hose 1" SUPERCAT	25	-	In stock	Enquiry
TI-ZSK213-20-16	Flange fitting 90° SAE 1.1/4", hose 1" SUPERCAT	25	-	In stock	Enquiry
TI-ZSK213-20-20	Flange fitting 90° SAE 1.1/4", hose 1.1/4" SUPERCAT	32	-	In stock	Enquiry
TI-ZSK213-24-20	Flange fitting 90° SAE 1.1/2", hose 1.1/4" SUPERCAT	32	-	In stock	Enquiry
TI-ZSK213-24-24	Flange fitting 90° SAE 1.1/2", hose 1.1/2" SUPERCAT	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting flange SAE 6000 SUPERCAT (SFS), angled 90°. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.
