Is the Twisted tee for pneumatic hoses "L" with external thread BSPT, type C8 suitable for use with soft plastic hoses at 18 bar working pressure?

Yes. The Twisted tee for pneumatic hoses "L" with external thread BSPT, type C8 is suitable for use with soft plastic hoses at 18 bar working pressure. The product description explicitly states it is designed for connecting hoses made of soft plastics, uses a push-on hose connection secured by tightening the nut, is made of nickel-plated brass, and has a working pressure of 18 bar.matching your required pressure. Ensure hose inner diameter matches the fitting size and inspect seals and clamp/nut tightness during installation to maintain safe operation.

Can Twisted tee for pneumatic hoses "L" with external thread BSPT, type C8 be used with nickel-plated brass fittings on soft plastic hoses at 18 bar?

Yes. Twisted tee for pneumatic hoses "L" with external thread BSPT, type C8 can be used with nickel-plated brass fittings on soft plastic hoses at 18 bar, provided the hose inner diameter matches the fitting, the push-on plus screw-on nut connection is correctly assembled, and the hose material and temperature ratings are compatible with 18 bar. Ensure proper hose insertion, secure tightening of the nut, and verify seals (no damage to hose or fittings). Perform pressure testing and periodic inspection for leaks or slippage under operating conditions.

Can Twisted tee for pneumatic hoses "L" with external thread BSPT, type C8 be used by pushing and screwing a nut onto soft plastic hoses?

Yes. The Twisted tee for pneumatic hoses "L" with external thread BSPT, type C8 is specifically designed for connecting soft plastic hoses. The connection method is to push the hose onto the fitting and secure it by screwing on the nut. Constructed from nickel-plated brass and rated to 18 bar working pressure, it is suitable for pneumatic applications using soft plastic hoses when the hose size and thread compatibility match the fitting specifications. Ensure the hose inner diameter matches the fitting, the nut is tightened properly, and operating pressure does not exceed 18 bar for safe use.

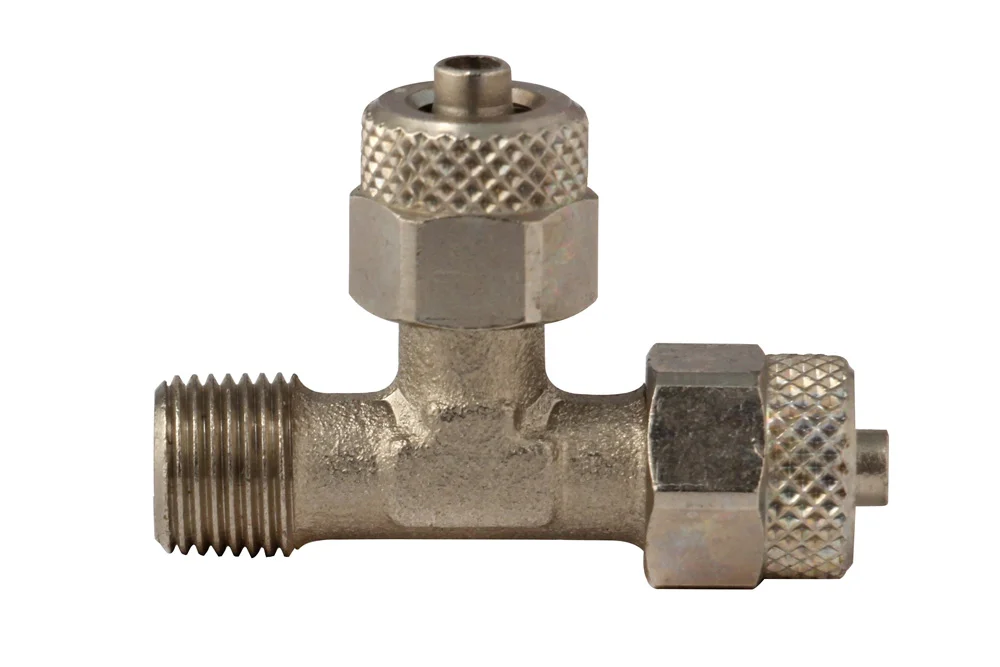

Twisted tee for pneumatic hoses “L” with external thread BSPT, type C8

All products, Tubular fittings/

Additional information

Material	B – brass (bronze)

L-shaped tee with external BSPT thread type C8 designed for connecting hoses made of soft plastics. The connection is made by pushing the hose onto the fitting and tightening it by screwing on the nut. Material: nickel-plated brass. Working pressure: 18 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2308001	L connector tee C8, 2 x hose 6/4 / GZ BSPT 1/8	-	16	In stock	Enquiry
MW-2308002	L connector tee C8, 2 x hose 6/4 / GZ BSPT 1/4	-	16	In stock	Enquiry
MW-2308003	L connector tee C8, 2 x hose 8/6 / GZ BSPT 1/8	-	16	In stock	Enquiry
MW-2308004	L connector tee C8, 2 x hose 8/6 / GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2308005	L connector tee C8, 2 x hose 8/6 / GZ BSPT 3/8	-	16	In stock	Enquiry
MW-2308006	L connector tee C8, 2 x hose 10/8 / GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2308007	L connector tee C8, 2 x hose 10/8 / GZ BSPT 3/8	-	16	In stock	Enquiry
MW-2308008	L connector tee C8, 2 x hose 10/8 / GZ BSPT 1/2"	-	16	In stock	Enquiry
MW-2308009	L connector tee C8, 2 x hose 12/10 / GZ BSPT 3/8	-	16	In stock	Enquiry
MW-2308010	L connector tee C8, 2 x hose 12/10 / GZ BSPT 1/2"	-	16	In stock	Enquiry
MW-2308012	L connector tee C8, 2 x hose 5/3 / GZ BSPT 1/8	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

L-shaped tee with external BSPT thread type C8 designed for connecting hoses made of soft plastics. The connection is made by pushing the hose onto the fitting and tightening it by screwing on the nut. Material: nickel-plated brass. Working pressure: 18 bar.
