Can SNAP-TITE quick connect plug with GW BSP and NPTF with valve, carbon steel, H series handle hydraulic oil at 448 bar with NBR or Viton seals?

Yes . the SNAP-TITE quick connect plug with GW BSP and NPTF with valve, carbon steel, H series can handle hydraulic oil at 448 bar, provided the correct size and sealing are chosen. The product spec lists working pressure up to 448 bar (size-dependent) with a 2:1 safety factor and explicitly cites hydraulic power (hydraulic oil) among applications. For seals: NBR is rated -35Â°C to +120Â°C and Viton (FKM) -26Â°C to +204Â°C . select Viton if your operating temperature may exceed +120Â°C or approach the upper end of that range. Ensure the coupling size you use is certified for 448 bar and that flow/pressure-drop characteristics (given at 3 bar drop) meet your system requirements.

Is the SNAP-TITE quick connect plug with GW BSP and NPTF with valve, carbon steel, H series suitable for steam service at high temperatures?

SNAP-TITE quick connect plug with GW BSP and NPTF with valve, carbon steel, H series: Yes - it can be used for steam service at high temperatures only if the Viton sealing (operating up to +204Â°C) is specified. The standard NBR sealing is limited to +120Â°C and is not suitable for high-temperature steam. Additionally ensure the chosen carbon steel construction and galvanization are acceptable for your steam conditions (pressure, corrosion, temperature cycling). Verify application-specific compatibility (pressure up to 448 bar depending on size, safety factor 2:1) and confirm laminar-flow valve design meets your system requirements.

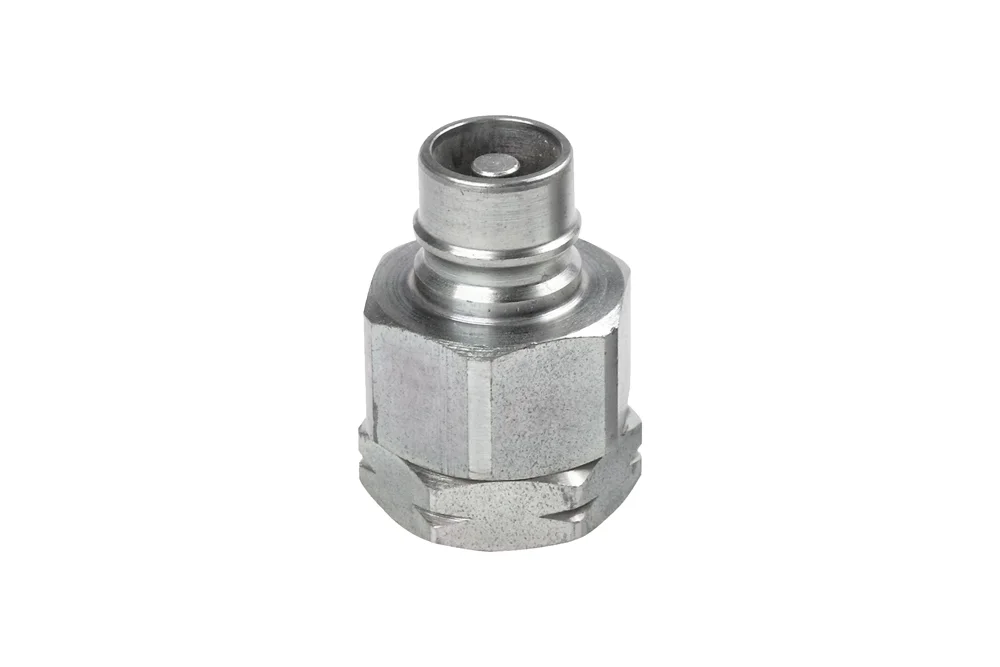

SNAP-TITE quick connect plug with GW BSP and NPTF with valve, carbon steel, H series

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 2

SNAP-TITE quick coupling plug with internal BSP and NPTF threads, manufactured in the USA, features a unique valve design that allows for laminar flows. Depending on the application, the appropriate material for the coupling and sealing must be selected. Standard: MIL-C-51234. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases, chemicals). Working pressure: up to 448 bar (depending on the size of the quick coupling), safety factor 2:1. Material: carbon steel, galvanized. Sealing: NBR (operating temperature: from -35°C to +120°C), viton (operating temperature: from -26°C to +204°C). Flow has been provided for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
SN-VHN12-12RP	H plug 3/4", G 3/4" BSP	-	241	In stock	Enquiry
SN-VHN16-16RP	H plug 1", GW 1" BSP	-	138	In stock	Enquiry
SN-VHN20-20RP	H plug 1.1/4", G 1.1/4" BSP	-	121	In stock	Enquiry
SN-VHN20-20RPV	H plug 1.1/4", G 1.1/4" BSP, viton	-	121	In stock	Enquiry
SN-VHN24-24RP	H plug 1.1/2", G 1.1/2" BSP	-	103	In stock	Enquiry
SN-VHN4-4RP	Plug H 1/4", G 1/4" BSP	-	448	In stock	Enquiry
SN-VHN4-4RPV	Plug H 1/4", G 1/4" BSP, viton	-	448	In stock	Enquiry
SN-VHN6-6F	H 3/8" plug, 3/8" NPTF female thread	-	310	In stock	Enquiry
SN-VHN6-6RP	H 3/8" plug, 3/8" BSP female thread	-	310	In stock	Enquiry
SN-VHN6-6RPV	H 3/8" plug, 3/8" BSP female thread, viton	-	310	In stock	Enquiry
SN-VHN8-8RP	H plug 1/2", G 1/2" BSP	-	276	In stock	Enquiry
SN-VHN8-8RPV	H plug 1/2", G 1/2" BSP, viton	-	276	In stock	Enquiry
