Is the SNAP-TITE quick connect socket with GW BSP with valve, brass, H series suitable for hydraulic oil at 155 bar and which seal (NBR or Viton) is recommended?

Yes . the SNAP-TITE quick connect socket with GW BSP with valve, brass, H series is suitable for hydraulic oil up to the specified working pressure (listed up to 155 bar, depending on coupling size) and meets MILâCâ51234 application guidance for hydraulic power. Recommended seal: - Use NBR (nitrile) for standard hydraulic oils where temperature stays within â35Â°C to +120Â°C . best general choice for typical hydraulic systems. - Use Viton (FKM) if the hydraulic oil or operating environment requires higher temperature resistance or compatibility up to +204Â°C (operating range â26Â°C to +204Â°C), or where improved chemical/oil resistance is needed. Choose the seal based on your systemâs maximum operating temperature and specific oil/chemical compatibility.

Can the SNAP-TITE quick connect socket with GW BSP with valve, brass, H series be used for steam applications and which seal is preferred?

Yes - the SNAP-TITE quick connect socket with GW BSP with valve, brass, H series can be used for steam applications (steam listed among industrial applications). For steam, choose the Viton seal rather than NBR: Vitonâs higher temperature range (â26Â°C to +204Â°C) is far better suited to typical steam temperatures than NBR (â35Â°C to +120Â°C). Also confirm the specific steam temperature and pressure for your system against the coupling sizeâs working pressure (up to 155 bar depending on size) and ensure compatibility with steam chemistry and safety margins.

Can the SNAP-TITE quick connect socket with GW BSP with valve, brass, H series be used with aggressive chemicals and which seal is recommended?

Yes. the SNAP-TITE quick connect socket with GW BSP with valve, brass, H series can be used with some aggressive chemicals, but the correct seal material must be chosen based on chemical compatibility and temperature. Recommendations: - Use viton (FKM) seals for aggressive chemicals and higher temperatures (operating range â26Â°C to +204Â°C). Viton offers much better chemical resistance than NBR for fuels, oils and many aggressive solvents. - Avoid NBR (nitrile) for strongly aggressive chemicals or high-temperature applications; NBR is suitable for hydraulic oil, water and non-aggressive fluids (operating range â35Â°C to +120Â°C). Notes: - Verify chemical compatibility of the specific fluid with brass body and viton seals (some chemicals can attack brass or swell/degrade elastomers). - Observe working pressure limits (up to 155 bar depending on size) and standard MILâCâ51234 requirements. - For critical or highly aggressive media, consult the manufacturer or provide the exact chemical and operating conditions to confirm suitability.

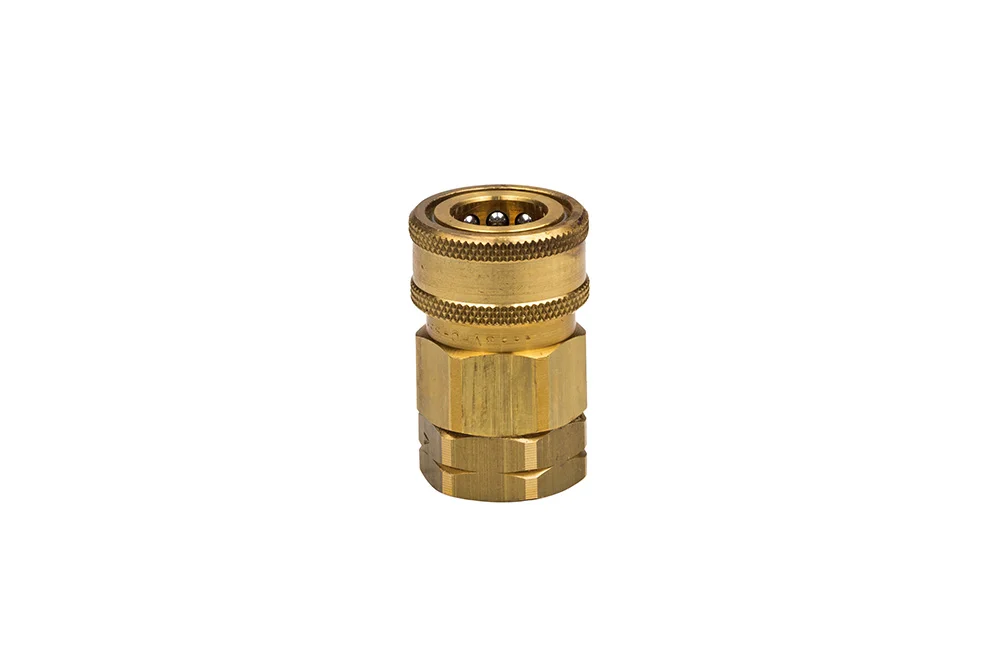

Quick-coupling socket SNAP-TITE with female thread BSP with a valve, brass, H series

All products, Hydraulic quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	10

Quick-coupling socket SNAP-TITE with a BSP female thread American-made is characterized by a unique valve design, which allows laminar flows to be achieved. Depending on the application, the appropriate coupling and seal material should be selected. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Standard: MIL-C-51234. Working pressure: up to 155 bar (depending on the quick-coupling size), Safety factor 2:1. Material: brass. Sealing: NBR (Operating temperature: from -35°C to +120°C), Viton (Operating temperature: from -26°C to +204°C). The flow is given for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
SN-BVHC12-12RP	Socket H 3/4", 3/4" BSP female, brass	-	138	In stock	Enquiry
SN-BVHC12-12RPV	Socket H 3/4", 3/4" BSP female, brass, Viton	-	138	In stock	Enquiry
SN-BVHC16-16RP	Socket H 1", 1" BSP female, brass	-	121	In stock	Enquiry
SN-BVHC16-16RPV	Socket H 1", 1" BSP female, brass, Viton	-	121	In stock	Enquiry
SN-BVHC20-20RP	Socket H 1.1/4", 1.1/4" BSP female, brass	-	24	In stock	Enquiry
SN-BVHC20-20RPV	Socket H 1.1/4", 1.1/4" BSP female, brass, Viton	-	24	In stock	Enquiry
SN-BVHC24-24RP	Socket H 1.1/2", 1.1/2" BSP female, brass	-	24	In stock	Enquiry
SN-BVHC32-32RP	Socket H 2", 2" BSP female, brass	-	28	In stock	Enquiry
SN-BVHC4-4RP	Socket H 1/4", 1/4" BSP female, brass	-	155	In stock	Enquiry
SN-BVHC4-4RPV	Socket H 1/4", 1/4" BSP female, brass, Viton	-	155	In stock	Enquiry
SN-BVHC6-6RP	Socket H 3/8", 3/8" BSP female, brass	-	155	In stock	Enquiry
SN-BVHC6-6RPV	Socket H 3/8", 3/8" BSP female, brass, Viton	-	155	In stock	Enquiry
SN-BVHC8-8RP	Socket H 1/2", 1/2" BSP female, brass	-	138	In stock	Enquiry
SN-BVHC8-8RPV	Socket H 1/2", 1/2" BSP female, brass, Viton	-	138	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-coupling socket SNAP-TITE with a BSP female thread American-made is characterized by a unique valve design, which allows laminar flows to be achieved. Depending on the application, the appropriate coupling and seal material should be selected. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Standard: MIL-C-51234. Working pressure: up to 155 bar (depending on the quick-coupling size), Safety factor 2:1. Material: brass. Sealing: NBR (Operating temperature: from -35°C to +120°C), Viton (Operating temperature: from -26°C to +204°C). The flow is given for a pressure drop of 3 bar.
