Can NON SKIVE SAE 3000 straight flange end, type NSK111, light series, carbon steel be crimped onto 4SP/4SH/R13/R15 hoses using TI-N sleeves without cutting the hose rubber?

Yes. The NON SKIVE SAE 3000 straight flange end, type NSK111, light series, carbon steel, can be crimped onto 4SP/4SH/R13/R15 hoses using TI-N sleeves without cutting the hose rubber. The product description explicitly states it is a straight non-skive flange end SAE 3000 (SFL), lightweight series, intended for crimping on those hose types with TI-N sleeves and that installation is performed without cutting the hose rubber. Ensure correct sleeve size, crimping parameters and qualified tooling are used to meet manufacturer crimp specifications and assembly safety.

Can NON SKIVE SAE 3000 straight flange end, type NSK111, light series, carbon steel be installed on 4SP/4SH/R13/R15 hoses using TI-N sleeves without removing hose rubber?

Yes. NON SKIVE SAE 3000 straight flange end, type NSK111, light series, carbon steel can be installed on 4SP/4SH/R13/R15 hoses using TI-N sleeves without removing the hose rubber, as the product is specifically designed for non-skive crimping on those hose types and the installation instructions state "without cutting the hose rubber."

Is NON SKIVE SAE 3000 straight flange end, type NSK111, light series, carbon steel compatible with TI-N crimping on 4SP/4SH/R13/R15 without skiving?

Yes. NON SKIVE SAE 3000 straight flange end, type NSK111, light series, carbon steel is designed to be compatible with TI-N crimping on hoses 4SP, 4SH, R13, and R15 without skiving. The product description explicitly states it is a straight non-skive flange end SAE 3000 (SFL), lightweight series, intended for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N and installation without cutting (skiving) the hose rubber. Ensure you follow the manufacturer's crimping parameters, tooling, and quality checks for proper assembly and seal integrity.

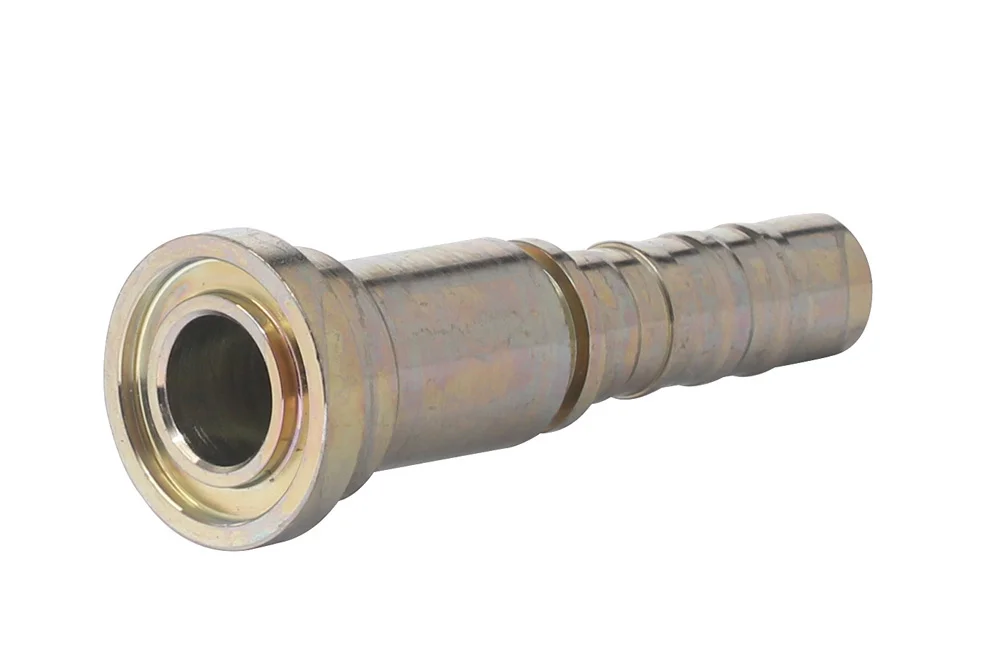

Fitting flange straight NON SKIVE SAE 3000, type NSK111, series light, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	2, 3

Fitting flange straight NON SKIVE SAE 3000 (SFL), series light, intended for crimping onto hoses type 4SP, 4SH, R13 and R15 using a ferrule TI-N…. Assembly: without skiving gumy hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NSK111-12-12	Flange fitting NON SKIVE SAE 3000 3/4", hose 3/4"	20	350	In stock	Enquiry
TI-NSK111-12-16	Flange fitting NON SKIVE SAE 3000 3/4", hose 1"	25	350	In stock	Enquiry
TI-NSK111-16-12	Flange fitting NON SKIVE SAE 3000 1", hose 3/4"	20	350	In stock	Enquiry
TI-NSK111-16-16	Flange fitting NON SKIVE SAE 3000 1", hose 1"	25	350	In stock	Enquiry
TI-NSK111-20-16	Flange fitting NON SKIVE SAE 3000 1.1/4", hose 1"	25	350	In stock	Enquiry
TI-NSK111-20-20	Flange fitting NON SKIVE SAE 3000 1.1/4", hose 1.1/4"	32	280	In stock	Enquiry
TI-NSK111-24-20	Flange fitting NON SKIVE SAE 3000 1.1/2", hose 1.1/4"	32	210	In stock	Enquiry
TI-NSK111-24-24	Flange fitting NON SKIVE SAE 3000 1.1/2", hose 1.1/2"	38	210	In stock	Enquiry
TI-NSK111-32-24	Flange fitting NON SKIVE SAE 3000 2", hose 1.1/2"	38	210	In stock	Enquiry
TI-NSK111-32-32	Flange fitting NON SKIVE SAE 3000 2", hose 2"	50	210	In stock	Enquiry
TI-NSK111-40-32	Flange fitting NON SKIVE SAE 3000 2.1/2", hose 2"	50	175	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting flange straight NON SKIVE SAE 3000 (SFL), series light, intended for crimping onto hoses type 4SP, 4SH, R13 and R15 using a ferrule TI-N…. Assembly: without skiving gumy hose. Material: carbon steel, galvanized.
