Is the JIC straight fitting with GW BSP in carbon steel, type GAI-B, compatible with Teflon tape or anaerobic thread sealant for sealing the BSP internal threads?

Yes. The JIC straight fitting with GW BSP in carbon steel, type GAI-B (Straight JIC 37Â° fitting with internal BSP thread . seal on the thread . with Teflon tape or anaerobic sealant) is designed to seal the BSP internal threads using thread sealants. For BSP parallel (G) threads the sealing principle is typically on the thread, so using PTFE (Teflon) tape or an anaerobic thread sealant is appropriate and commonly accepted. Guidance: - Clean threads of oil/contaminants before applying sealant. - For PTFE tape: wrap 2â3 turns clockwise (as viewed from the male end) avoiding overwrap into the bore. - For anaerobic sealant: apply an even film on the male threads per manufacturer instructions and allow recommended cure time. - Do not rely on thread sealant to substitute for proper male-to-female engagement; tighten to specified torque to achieve mechanical fit plus seal. - Confirm compatibility of the specific sealant with the fluid/media and operating temperature/pressure of your system. If your BSP is a tapered (BSPT) type or the application requires metal-to-metal seat sealing rather than thread sealing, different methods may be needed . verify thread type before final assembly.

Can I use Teflon tape or anaerobic sealant on the BSP internal threads of JIC straight fitting with GW BSP in carbon steel, type GAI-B?

Yes. For the JIC straight fitting with GW BSP in carbon steel, type GAI-B (Straight JIC 37Â° fitting with internal BSP thread - seal on the thread), you may use PTFE (Teflon) tape or an anaerobic thread sealant on the BSP internal threads. Ensure you apply PTFE tape correctly (wrap clockwise, 2â3 turns, avoid tape on first thread to prevent contamination) or use an anaerobic sealant compatible with carbon steel and hydraulic fluids, applied per manufacturer instructions and allowed proper cure time. Verify that thread sealing is acceptable for your system pressure and avoid using sealants that could interfere with metal-to-metal contact if the design relies on shoulder sealing; follow supplier recommendations and perform pressure testing after assembly.

Does the JIC straight fitting with GW BSP in carbon steel, type GAI-B require Teflon tape or anaerobic sealant on its BSP internal thread?

Yes. The JIC straight fitting with GW BSP in carbon steel, type GAI-B requires sealing on the BSP internal thread using either Teflon tape or an anaerobic sealant, as specified in the product description ("seal on the thread â with Teflon tape or anaerobic sealant"). Use an appropriate PTFE tape rated for hydraulic fittings or a compatible anaerobic thread sealant; apply per manufacturer instructions to ensure proper sealing and avoid contaminating the JIC 37Â° sealing face.

JIC straight fitting with GW BSP in carbon steel, type GAI-B

Additional information

Material	CS – steel (cast iron)

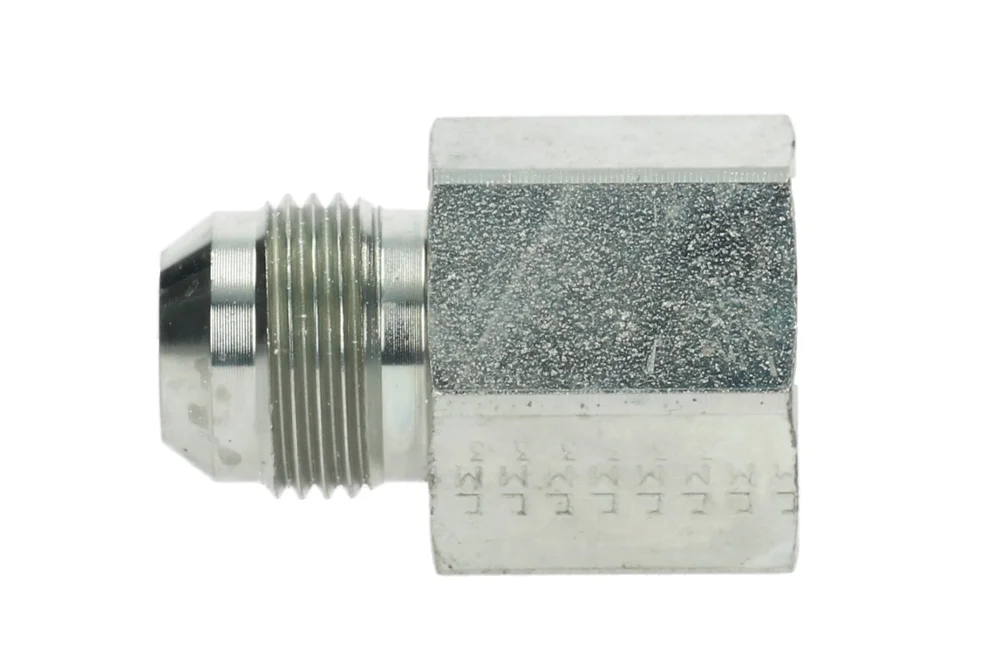

Straight JIC 37° fitting with internal BSP thread (seal on the thread – with Teflon tape or anaerobic sealant). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-GAI-07-B-02	GZ JIC 7/16"-20 / BSP 1/8" fitting	-	350	In stock	Enquiry
HJ-GAI-07-B-04	GZ JIC 7/16"-20 / BSP 1/4" connector	-	350	In stock	Enquiry
HJ-GAI-08-B-02	GZ JIC 1/2"-20 / BSP thread 1/8" fitting	-	350	In stock	Enquiry
HJ-GAI-08-B-04	GZ JIC 1/2"-20 / BSP 1/4" fitting	-	350	In stock	Enquiry
HJ-GAI-09-B-04	GZ JIC 9/16"-18 / BSP 1/4" fitting	-	350	In stock	Enquiry
HJ-GAI-09-B-06	GZ JIC 9/16"-18 / BSP 3/8" fitting	-	350	In stock	Enquiry
HJ-GAI-09-B-08	GZ JIC 9/16"-18 / BSP 1/2" fitting	-	350	In stock	Enquiry
HJ-GAI-12-B-04	GZ JIC 3/4"-16 / BSP thread 1/4" fitting	-	350	In stock	Enquiry
HJ-GAI-12-B-06	GZ JIC 3/4"-16 / BSP 3/8" fitting	-	350	In stock	Enquiry
HJ-GAI-12-B-08	GZ JIC 3/4"-16 / BSP 1/2" fitting	-	350	In stock	Enquiry
HJ-GAI-14-B-08	GZ JIC 7/8"-14 / BSP 1/2" fitting	-	350	In stock	Enquiry
HJ-GAI-17-B-08	GZ JIC fitting 1.1/16"-12 / BSP thread 1/2"	-	350	In stock	Enquiry
HJ-GAI-17-B-12	GZ JIC 1.1/16"-12 / BSP thread 3/4" fitting	-	350	In stock	Enquiry
HJ-GAI-21-B-16	GZ JIC fitting 1.5/16"-12 / BSP thread 1"	-	290	In stock	Enquiry
HJ-GAI-26-B-16	GZ JIC 1.5/8"-12 / BSP 1" connector	-	240	In stock	Enquiry
HJ-GAI-26-B-20	GZ JIC connector 1.5/8"-12 / BSP thread 1.1/4"	-	240	In stock	Enquiry
HJ-GAI-30-B-20	GZ JIC 1.7/8"-12 / BSP thread 1.1/4" fitting	-	240	In stock	Enquiry
HJ-GAI-30-B-24	GZ JIC 1.7/8"-12 / BSP thread 1.1/2" fitting	-	240	In stock	Enquiry
