Is the JIC straight fitting with stainless steel BSP socket, type EVGE-BE, compatible with rectangular cross-section elastomer seals and AISI 316 construction for marine environments?

Yes. The JIC straight fitting with stainless steel BSP socket, type EVGE-BE, described as "Straight JIC 37Â° fitting with external BSP thread (rectangular cross-section elastomer seal). Material: AISI 316 steel." is compatible with rectangular crossâsection elastomer seals and is suitable for marine environments where AISI 316 stainless steel is required. AISI 316 provides good corrosion resistance to seawater and marine atmospheres, and the JIC 37Â° seating plus the rectangular elastomer seal design gives reliable sealing under typical hydraulic pressures. Notes for best performance: ensure the chosen elastomer compound (e.g., NBR, HNBR, FKM) is appropriate for the specific fluid and temperature range and that installation torque and surface finish meet manufacturer specifications to avoid galling or seal extrusion in marine conditions.

Can the JIC straight fitting with stainless steel BSP socket, type EVGE-BE, with rectangular elastomer seal in AISI 316 be used in saltwater applications?

Yes - the JIC straight fitting with stainless steel BSP socket, type EVGE-BE, with rectangular elastomer seal in AISI 316 is suitable for many saltwater applications because the body material AISI 316 stainless steel offers good corrosion resistance to seawater. However, suitability depends on exposure severity (continuous immersion, splash, temperature, chlorides), galvanic contacts, and the elastomer seal material (not specified). For continuous or highly corrosive marine environments, consider higher-grade alloys (e.g., Duplex or 316L/904L) and ensure the seal compound is seawater-resistant (e.g., FKM, EPDM rated for seawater). Recommend confirming seal material and performing application-specific corrosion/compatibility checks.

Does the JIC straight fitting with stainless steel BSP socket, type EVGE-BE, meet IPX6/IPX7 ingress requirements with a rectangular elastomer seal?

No. the JIC straight fitting with stainless steel BSP socket, type EVGE-BE (straight JIC 37Â° fitting with external BSP thread, rectangular cross-section elastomer seal, material AISI 316) as described does not automatically guarantee compliance with IPX6/IPX7 ingress requirements. Reasoning: - IPX6 requires protection against powerful water jets (100 kPa nozzle, 100â150 L/min, 3 m, 3 min each direction). IPX7 requires temporary immersion to 1 m for 30 minutes. - The described design (JIC 37Â° metal-to-metal sealing interface combined with a rectangular elastomer seal in the BSP socket) can provide good sealing in many hydraulic applications, but IP ratings depend on the entire assembly, installation, torque, gasket material properties, surface finishes, and test verification. - Rectangular elastomer seals can be effective, but to claim IPX6/IPX7 you must verify: - Elastomer compound compatibility (swelling, hardness, compression set) for prolonged immersion and jet exposure. - Proper groove geometry, compression and assembly procedure to ensure continuous seal under dynamic pressure and after thermal/mechanical cycling. - Thread sealing (BSP external thread) and any additional leakage paths; threads often need sealant or additional O-rings for IP protection. - Completed assembly tested per IEC/EN 60529 (IPX6/IPX7) under intended mounting/orientation. Conclusion: Without documented test evidence or manufacturer certification to IPX6/IPX7 for the complete assembled product (including socket, seal, thread treatment, and installation instructions), you cannot assume the EVGE-BE fitting meets IPX6/IPX7 ingress requirements. Recommend obtaining manufacturer test reports or performing IPX6/IPX7 testing on the assembled configuration with the specified elastomer.

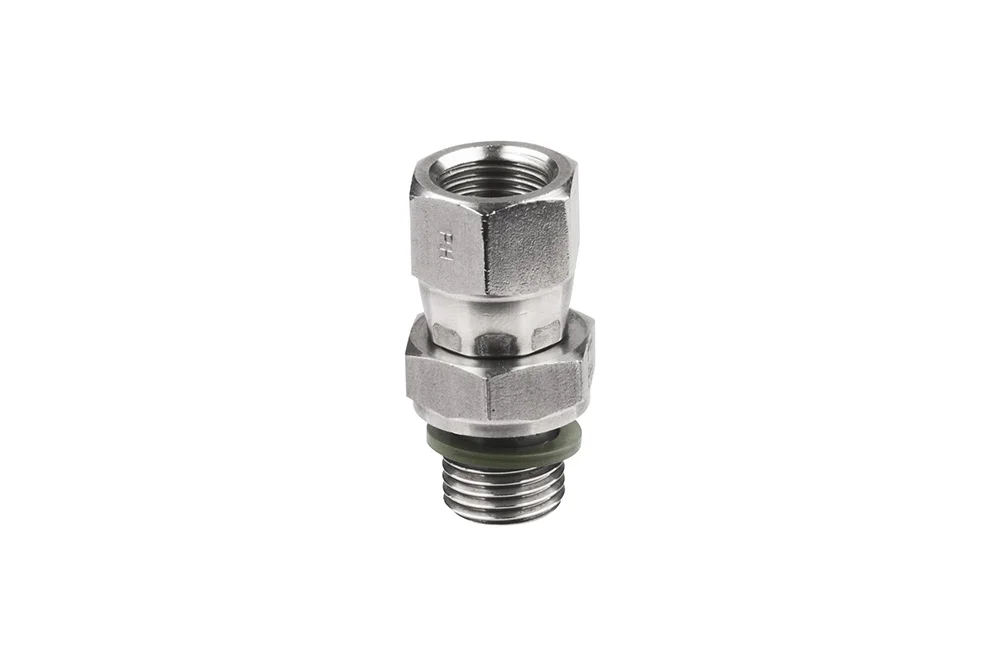

JIC straight fitting with stainless steel BSP socket, type EVGE-BE

Additional information

Material	SS – stainless steel

Straight JIC 37° fitting with external BSP thread (rectangular cross-section elastomer seal). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-EVGE-07-BE-02-SS	GW JIC 7/16"-20 / GZ BSP 1/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-07-BE-04-SS	GW JIC 7/16"-20 / GZ BSP 1/4", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-08-BE-02-SS	GW JIC 1/2"-20 / GZ BSP 1/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-08-BE-04-SS	GW JIC 1/2"-20 / GZ BSP 1/4", AISI 316 fitting	-	350	In stock	Enquiry
HJ-EVGE-08-BE-06-SS	GW JIC 1/2"-20 / GZ BSP 3/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-09-BE-04-SS	GW JIC 9/16"-18 / GZ BSP 1/4", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-09-BE-06-SS	GW JIC 9/16"-18 / GZ BSP 3/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-09-BE-08-SS	GW JIC 9/16"-18 / GZ BSP 1/2", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-12-BE-04-SS	GW JIC 3/4"-16 / GZ BSP 1/4", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-12-BE-06-SS	GW JIC 3/4"-16 / GZ BSP 3/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-12-BE-08-SS	GW JIC 3/4"-16 / GZ BSP 1/2", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-14-BE-06-SS	GW JIC 7/8"-14 / GZ BSP 3/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-14-BE-08-SS	GW JIC 7/8"-14 / GZ BSP 1/2", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-14-BE-12-SS	GW JIC 7/8"-14 / GZ BSP 3/4", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-17-BE-08-SS	GW JIC 1.1/16"-12 / GZ BSP 1/2", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-17-BE-12-SS	GW JIC 1.1/16"-12 / GZ BSP 3/4", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-17-BE-16-SS	GW JIC 1.1/16"-12 / GZ BSP 1", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-21-BE-12-SS	GW JIC 1.5/16"-12 / GZ BSP 3/4", AISI 316	-	290	In stock	Enquiry
HJ-EVGE-21-BE-16-SS	GW JIC 1.5/16"-12 / GZ BSP 1", AISI 316	-	290	In stock	Enquiry
HJ-EVGE-26-BE-16-SS	GW JIC 1.5/8"-12 / GZ BSP 1", AISI 316	-	240	In stock	Enquiry
HJ-EVGE-26-BE-20-SS	GW JIC 1.5/8"-12 / GZ BSP 1.1/4", AISI 316	-	240	In stock	Enquiry
HJ-EVGE-30-BE-20-SS	GW JIC 1.7/8"-12 / GZ BSP 1.1/4", AISI 316	-	240	In stock	Enquiry
HJ-EVGE-30-BE-24-SS	GW JIC 1.7/8"-12 / GZ BSP 1.1/2", AISI 316	-	240	In stock	Enquiry
