What is the correct torque for installing a JIC straight fitting with stainless steel BSP socket, type GE-BE, made of AISI 316 to ensure a proper seal without damaging the rectangular elastomer?

The correct tightening torque for a JIC straight fitting with stainless steel BSP socket, type GE-BE (AISI 316) depends on thread size and gasket compression; however, for fittings with a rectangular cross-section elastomer (soft seal) you must avoid over-torquing to prevent elastomer extrusion or damage. Use these general guidelines: - Lightly start by hand-tightening until the seat contacts. - Then tighten using a calibrated torque wrench by applying a further rotation of 1/8 to 1/4 turn for small sizes (up to 1/2" BSP) and 1/4 to 1/2 turn for larger sizes (3/4" BSP and above), or apply torque values in the typical range below as a safe reference: Typical recommended torque (approximate): - 1/8" BSP: 5â8 Nm - 1/4" BSP: 8â12 Nm - 3/8" BSP: 12â20 Nm - 1/2" BSP: 20â30 Nm - 3/4" BSP: 30â50 Nm - 1" BSP: 50â70 Nm Notes: - These are approximate starting values for AISI 316 fittings with rectangular elastomer seals. Verify with manufacturer-specific torque charts when available. - Use a clean thread, appropriate thread lubricant/sealant per spec, and avoid multiple full turns after seating. Inspect the elastomer after initial pressure testing and retighten only if leakage persists, in small increments.

How should I tighten a JIC straight fitting with stainless steel BSP socket, type GE-BE, AISI 316 to avoid damaging the rectangular elastomer seal?

Use the JIC straight fitting with stainless steel BSP socket, type GE-BE Format as follows to avoid damaging the rectangular elastomer seal: 1. Clean mating surfaces and inspect the rectangular elastomer seal for cuts or dirt. Replace if damaged. 2. Hand-start the BSP socket to ensure proper thread engagement; avoid cross-threading. 3. Use a torque wrench and tighten to the manufacturerâs recommended torque for AISI 316 fittings of this size. If no spec is available, tighten gradually to a moderate torque while monitoring seal compression-do not exceed typical steel JIC torque limits. 4. If possible, use a backup wrench on the fitting body to prevent twisting or overloading the seal. 5. Apply even, incremental tightening in small turns rather than a single heavy turn. Stop as soon as the seal contacts the mating seat and shows uniform compression; do not crush the elastomer. 6. After pressurizing the system, recheck for leaks and retorque to spec if needed. These steps minimize risk of over-compression or extrusion of the rectangular elastomer seal in the JIC straight fitting with stainless steel BSP socket, type GE-BE Format.

Can I reuse a JIC straight fitting with stainless steel BSP socket, type GE-BE, AISI 316 with its rectangular elastomer seal?

Yes. with conditions. A JIC straight fitting with stainless steel BSP socket, type GE-BE (AISI 316) using a rectangular cross-section elastomer seal can be reused provided the seal and sealing surfaces are in good condition and assembly requirements are met. Before reusing: - Inspect the elastomer seal for cuts, nicks, flat spots, hardening, swelling, chemical attack or permanent deformation. Any damage or loss of elasticity means replace the seal. - Inspect the mating metal faces (the rectangular groove and the counterface) for scratches, galling, corrosion, or burrs. Surface damage that prevents uniform contact will compromise sealing. - Confirm material and fluid compatibility: AISI 316 is generally compatible with many fluids, but the elastomer must be compatible with the system fluid and temperature range. Replace the elastomer if compatibility is uncertain. - Check thread condition (BSP external) and torque history. Damaged threads or signs of yielding require replacement of the socket or fitting. Use correct thread sealing method if required by design. - Follow the manufacturerâs reuse/recertification guidance and torque specifications. If the application is critical (high pressure, safety-related, or vibration/shock environments), best practice is to replace the elastomer seal at minimum, and consider replacing the entire fitting. - After reassembly, perform a pressure/leak test at operating pressure (or higher per procedures) to confirm integrity. In short: reuse is acceptable only when the elastomer and metal sealing surfaces are undamaged, elastomer compatibility and condition are verified, correct assembly torque is used, and a successful leak test is performed. If any doubt or for critical applications, replace the seal or the fitting.

JIC straight fitting with stainless steel BSP socket, type GE-BE

Additional information

Material	SS – stainless steel

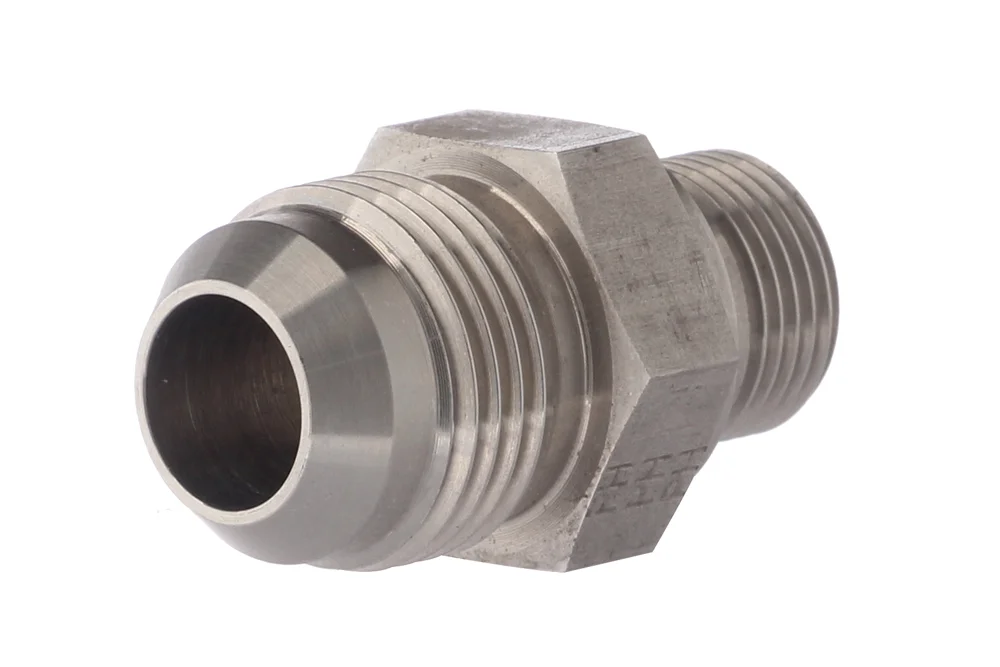

Straight JIC 37° fitting with external BSP thread (rectangular cross-section elastomer seal). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-GE-07-BE-02-SS	GZ JIC 7/16"-20 / GZ BSP 1/8", AISI 316 connector	-	350	In stock	Enquiry
HJ-GE-07-BE-04-SS	GZ JIC 7/16"-20 / GZ BSP 1/4", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-07-BE-06-SS	GZ JIC 7/16"-20 / GZ BSP 3/8", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-07-BE-08-SS	GZ JIC 7/16"-20 / GZ BSP 1/2", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-08-BE-02-SS	GZ JIC 1/2"-20 / GZ BSP 1/8" fitting, AISI 316	-	350	In stock	Enquiry
HJ-GE-08-BE-04-SS	GZ JIC 1/2"-20 / GZ BSP 1/4", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-08-BE-06-SS	GZ JIC 1/2"-20 / GZ BSP 3/8", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-09-BE-02-SS	GZ JIC 9/16"-18 / GZ BSP 1/8" fitting, AISI 316	-	350	In stock	Enquiry
HJ-GE-09-BE-04-SS	GZ JIC 9/16"-18 / GZ BSP 1/4", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-09-BE-06-SS	GZ JIC 9/16"-18 / GZ BSP 3/8", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-09-BE-08-SS	GZ JIC 9/16"-18 / GZ BSP 1/2", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-12-BE-04-SS	GZ JIC 3/4"-16 / GZ BSP 1/4" fitting, AISI 316	-	350	In stock	Enquiry
HJ-GE-12-BE-06-SS	GZ JIC 3/4"-16 / GZ BSP 3/8" fitting, AISI 316	-	350	In stock	Enquiry
HJ-GE-12-BE-08-SS	GZ JIC 3/4"-16 / GZ BSP 1/2" fitting, AISI 316	-	350	In stock	Enquiry
HJ-GE-12-BE-12-SS	GZ JIC 3/4"-16 / GZ BSP 3/4", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-14-BE-06-SS	GZ JIC 7/8"-14 / GZ BSP 3/8", AISI 316	-	350	In stock	Enquiry
HJ-GE-14-BE-08-SS	GZ JIC 7/8"-14 / GZ BSP 1/2", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-14-BE-12-SS	GZ JIC 7/8"-14 / GZ BSP 3/4", AISI 316 fitting	-	350	In stock	Enquiry
HJ-GE-17-BE-08-SS	GZ JIC 1.1/16"-12 / GZ BSP 1/2", AISI 316	-	350	In stock	Enquiry
HJ-GE-17-BE-12-SS	GZ JIC 1.1/16"-12 / GZ BSP 3/4", AISI 316	-	350	In stock	Enquiry
HJ-GE-17-BE-16-SS	GZ JIC 1.1/16"-12 / GZ BSP 1", AISI 316	-	290	In stock	Enquiry
HJ-GE-21-BE-12-SS	GZ JIC 1.5/16"-12 / GZ BSP 3/4", AISI 316	-	290	In stock	Enquiry
HJ-GE-21-BE-16-SS	GZ JIC 1.5/16"-12 / GZ BSP 1", AISI 316	-	290	In stock	Enquiry
HJ-GE-21-BE-20-SS	GZ JIC 1.5/16"-12 / GZ BSP 1.1/4", AISI 316	-	240	In stock	Enquiry
HJ-GE-26-BE-16-SS	GZ JIC 1.5/8"-12 / GZ BSP 1", AISI 316	-	240	In stock	Enquiry
HJ-GE-26-BE-20-SS	GZ JIC 1.5/8"-12 / GZ BSP 1.1/4", AISI 316	-	240	In stock	Enquiry
HJ-GE-26-BE-24-SS	GZ JIC 1.5/8"-12 / GZ BSP 1.1/2", AISI 316	-	240	In stock	Enquiry
HJ-GE-30-BE-20-SS	GZ JIC 1.7/8"-12 / GZ BSP 1.1/4", AISI 316	-	240	In stock	Enquiry
HJ-GE-30-BE-24-SS	GZ JIC 1.7/8"-12 / GZ BSP 1.1/2", AISI 316	-	240	In stock	Enquiry
