Can a JIC straight fitting with UNF GZ in carbon steel, type G (37Â° cone seal, galvanized) be used with stainless steel tubing without galvanic corrosion risk?

Short answer: Not recommended for long-term use without precautions . galvanic corrosion risk exists. Explanation: A JIC straight fitting with UNF GZ in carbon steel, type G (37Â° cone seal, galvanized) joined to stainless steel tubing creates a bimetallic couple in the presence of an electrolyte. Galvanized carbon steel (zinc coating) is electrochemically less noble than stainless steel: zinc will corrode preferentially (sacrificial anode effect), but the underlying carbon steel can corrode if the zinc layer is damaged or if crevice/galvanic conditions concentrate attack. Factors that influence risk: presence of moisture or conductive fluids, chloride content (sea or deicing salts greatly increase risk), temperature, oxygen access, contact area ratio (small anodic area on large cathodic stainless increases anodic corrosion), mechanical abrasion and assembly damage to the zinc, and frequency of disassembly. Mitigation options: use a fitting and tubing of the same or compatible material (stainless steel JIC fitting), isolate metals with a non-conductive barrier (PTFE tape that doesnât compromise the seal, polymer sleeves or insulated adapters designed for hydraulic fittings), apply effective corrosion-inhibiting coatings or sealants rated for the application, control environment (dry, non-corrosive fluids), or accept sacrificial replacement of the galvanized part with scheduled inspection. Recommendation: For reliability, especially in humid, wet, chloride-containing, or critical hydraulic systems, choose a stainless steel JIC fitting rather than a galvanized carbon steel one to avoid galvanic corrosion risk.

Is JIC straight fitting with UNF GZ in carbon steel, type G (37Â° cone seal, galvanized) compatible with stainless steel hoses or adapters without risking corrosion?

No - a JIC straight fitting with UNF GZ in carbon steel, type G (37Â° cone seal, galvanized) is not recommended for direct mating with stainless steel hoses or adapters without risk of corrosion. Contact between galvanized carbon steel and stainless steel can cause galvanic corrosion, especially in moist or chemically active environments. Galvanizing may provide some sacrificial protection, but the dissimilar-metal pair and possible crevices at the 37Â° cone seal promote corrosion and accelerated galvanic attack. To avoid issues use: stainless steel fittings of the same JIC/UNF 37Â° design, an appropriate isolation coating or non-conductive barrier, or ensure environment and sealing materials prevent electrolyte formation.

Can JIC straight fitting with UNF GZ in carbon steel, type G (37Â° cone, galvanized) be used submerged in salty environments?

Not recommended for long-term submersion in salty (marine) environments. Explanation: - Material/coating: carbon steel with galvanization provides basic corrosion protection, mainly for atmospheric exposure. Galvanized (zinc-coated) surfaces will corrode faster in chloride-rich, submerged conditions than stainless steels or properly coated marine alloys. - Sealing type: JIC straight fitting with UNF GZ in carbon steel, type G uses a 37Â° cone metal-to-metal seal. The sealing integrity depends on surface condition and proper torque; corrosion under water (especially with chlorides) can cause pitting and galvanic effects that degrade the cone seat and thread engagement, leading to leaks. - Galvanic and crevice corrosion: Submersion, especially where oxygen concentration varies (crevices, threads), promotes accelerated corrosion (crevice and pitting). If the fitting contacts dissimilar metals in the system, galvanic corrosion risk increases. - Service life and maintenance: Short-term or occasional immersion (not continuous) may be acceptable with strict maintenance, sacrificial anodes, or protective coatings. Continuous immersion in saltwater will likely require frequent inspection/replacement. - Alternatives and mitigations: For reliable long-term submerged use choose corrosion-resistant materials (e.g., 316/316L stainless steel, duplex stainless, or brass depending on application) or apply marine-grade coatings, use full corrosion-resistant fittings, and ensure compatible mating materials. If you must use the JIC straight fitting with UNF GZ in carbon steel, type G, consider cathodic protection, regular inspection, and plan for reduced service life. Recommendation: Do not use JIC straight fitting with UNF GZ in carbon steel, type G for continuous submersion in salty environments without substantial protective measures; select a corrosion-resistant fitting material instead.

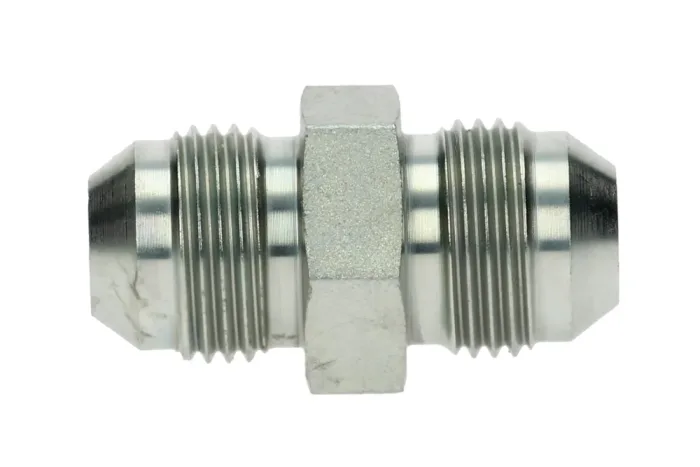

Fitting straight JIC with UNF male of carbon steel, type G

Additional information

Material	CS – steel (cast iron)

Fitting straight JIC 37° with UNF male thread (37° cone sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-G-07	Fitting male JIC 7/16"-20	-	450	In stock	Enquiry
HJ-G-08	Fitting male JIC 1/2"-20	-	450	In stock	Enquiry
HJ-G-09	Fitting male JIC 9/16"-18	-	350	In stock	Enquiry
HJ-G-12	Fitting male JIC 3/4"-16	-	350	In stock	Enquiry
HJ-G-14	Fitting male JIC 7/8"-14	-	350	In stock	Enquiry
HJ-G-17	Fitting male JIC 1.1/16"-12	-	350	In stock	Enquiry
HJ-G-21	Fitting male JIC 1.5/16"-12	-	290	In stock	Enquiry
HJ-G-26	Fitting male JIC 1.5/8"-12	-	240	In stock	Enquiry
HJ-G-30	Fitting male JIC 1.7/8"-12	-	240	In stock	Enquiry
