Does the MAV pressure gauge straight fitting, carbon steel, zinc-nickel, meet DIN 2353 corrosion resistance (720h salt spray) and which series (L or S) is recommended for high-pressure systems?

Yes. The MAV pressure gauge straight fitting, carbon steel, zinc-nickel meets DIN 2353 corrosion resistance: its zinc-nickel coating (6â10 Âµm) is rated for very high corrosion resistance . up to 720 hours in a salt spray chamber, which aligns with the DIN 2353 requirement. For high-pressure systems the S (heavy) series is recommended, as the S series is designed for heavier-duty/high-pressure applications, while the L (light) series is intended for lower-pressure uses.

Is the MAV pressure gauge straight fitting, carbon steel, zinc-nickel, compatible with BSP internal threads and 24Â° DIN 2353 metric external threads?

Yes. The MAV pressure gauge straight fitting, carbon steel, zinc-nickel Format features an internal cylindrical BSP thread with sealing ring and a 24Â° DIN 2353 socket with external metric thread, so it is compatible with BSP internal threads on the gauge side and 24Â° DIN 2353 external metric threads on the mating connector. Surface zincânickel coating (6â10 Âµm) and carbon steel construction apply.

Can the MAV pressure gauge straight fitting, carbon steel, zinc-nickel, be used with hydraulic fluids at elevated temperatures?

Possibly, but with limitations. not recommended without verification. Explanation: - MAV pressure gauge straight fitting, carbon steel, zinc-nickel, is a DIN 2353 straight pressure gauge fitting (type MAV-B) with carbon steel body and a zinc-nickel coating (6â10 Âµm) that provides excellent corrosion resistance. - The description specifies mechanical/threaded details and corrosion protection but does not state operating temperature limits or compatibility with hydraulic fluids at elevated temperatures. - Carbon steel base metal can generally withstand moderate elevated temperatures, but the performance and chemical compatibility depend on the specific hydraulic fluid, exact temperature, pressure, and exposure time. - The zinc-nickel plating offers corrosion resistance but can degrade or change characteristics at higher temperatures; some coatings may soften, oxidize, or lose adhesion above certain temperatures (varies by process and specification). - Sealing depends on the sealing ring material (unspecified). Elastomeric seals (e.g., NBR, FKM, EPDM) have temperature limits and fluid compatibility that are critical for safe use at elevated temperatures. Recommendation: - Do not assume suitability. Verify with the manufacturer or technical datasheet for: - Maximum continuous temperature rating for the fitting and coating - Compatibility of the zinc-nickel finish with the specific hydraulic fluid at the intended temperature - Type and temperature rating of the sealing ring used in MAV pressure gauge straight fitting, carbon steel, zinc-nickel - Pressure rating at the elevated temperature - If manufacturer data are unavailable, consider selecting fittings and seals explicitly rated for the hydraulic fluid and temperature range (e.g., high-temperature hydraulic fittings and high-temp elastomers) or conduct testing under controlled conditions.

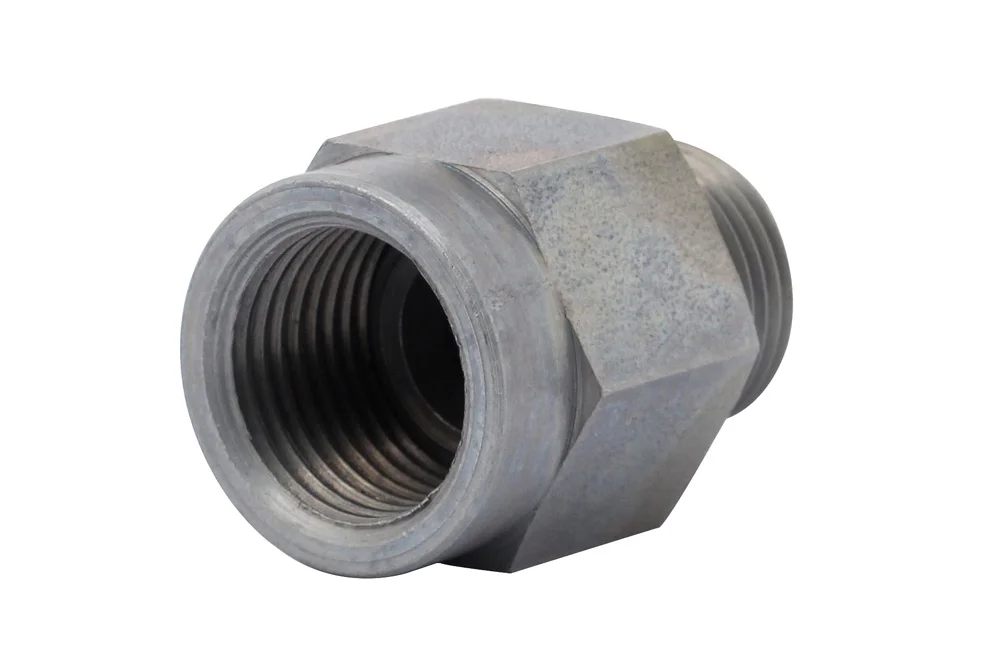

MAV pressure gauge straight fitting, carbon steel, zinc-nickel

Additional information

Material	CS – steel (cast iron)

DIN 2353 straight pressure gauge fitting, type MAV-B: internal cylindrical BSP thread with sealing ring and 24° DIN 2353 socket with external metric thread. Available as: L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-MAV-06L-B-04-CN	DIN 2353 connector MAV 6L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-MAV-06S-B-08-CN	DIN 2353 connector MAV 6S 1/2" BSP, Zn-Ni	-	630	In stock	Enquiry
HD-MAV-08L-B-04-CN	DIN 2353 connector MAV 8L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-MAV-08S-B-04-CN	DIN 2353 connector MAV 8S 1/4" BSP, Zn-Ni	-	630	In stock	Enquiry
HD-MAV-08S-B-08-CN	DIN 2353 connector MAV 8S 1/2" BSP, Zn-Ni	-	630	In stock	Enquiry
HD-MAV-10L-B-04-CN	DIN 2353 connector MAV 10L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-MAV-10S-B-08-CN	DIN 2353 connector MAV 10S 1/2" BSP, Zn-Ni	-	630	In stock	Enquiry
HD-MAV-12L-B-04-CN	DIN 2353 connector MAV 12L 1/4" BSP, Zn-Ni	-	315	In stock	Enquiry
HD-MAV-12S-B-08-CN	DIN 2353 connector MAV 12S 1/2" BSP, Zn-Ni	-	630	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 straight pressure gauge fitting, type MAV-B: internal cylindrical BSP thread with sealing ring and 24° DIN 2353 socket with external metric thread. Available as: L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
