Can NON SKIVE AGJ straight end, carbon steel, type NJZ110 be crimped onto 4SP/4SH/R13/R15 hoses using TI-N sleeves without cutting the hose rubber?

Yes. The NON SKIVE AGJ straight end, carbon steel, type NJZ110 can be crimped onto 4SP/4SH/R13/R15 hoses using TI-N sleeves without cutting the hose rubber. The product description explicitly states it is a Straight NON SKIVE end fitting with external UNF thread, featuring a 74Â° cone seal (AGJ) and is designed for crimping on 4SP, 4SH, R13, and R15 hose types using crimping sleeve TI-N, with installation: without cutting the hose rubber. Material is carbon steel, galvanized. Ensure correct sleeve size and crimping parameters per manufacturer specifications and verify assembly with pressure testing after crimping.

Is NON SKIVE AGJ straight end, carbon steel, type NJZ110 compatible with TI-N crimping sleeves for 4SP/4SH/R13/R15 hoses without cutting the hose rubber?

Yes. The NON SKIVE AGJ straight end, carbon steel, type NJZ110 is compatible with TI-N crimping sleeves for 4SP/4SH/R13/R15 hoses and is designed for installation without cutting the hose rubber. The fitting features an external UNF thread and a 74Â° cone seal (AGJ) and is intended specifically for crimping into those hose types using the TI-N sleeve. Material: carbon steel, galvanized.

NON SKIVE AGJ straight end, carbon steel, type NJZ110

Q: Can NON SKIVE AGJ straight end, carbon steel, type NJZ110 be installed on 4SP/4SH/R13/R15 hoses using TI-N sleeves without hose rubber removal?

Yes. NON SKIVE AGJ straight end, carbon steel, type NJZ110 can be installed on 4SP/4SH/R13/R15 hoses using TI-N crimping sleeves without removing the hose rubber. The product description explicitly states it is a Straight NON SKIVE end fitting with external UNF thread, featuring a seal on a 74Â° cone (AGJ), designed for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N, and installation: without cutting the hose rubber. Use the specified TI-N sleeve and correct crimp dimensions/tools for the hose type to ensure a proper crimp and seal. Ensure compatibility with hose manufacturer crimping specifications and follow proper assembly and safety procedures.

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

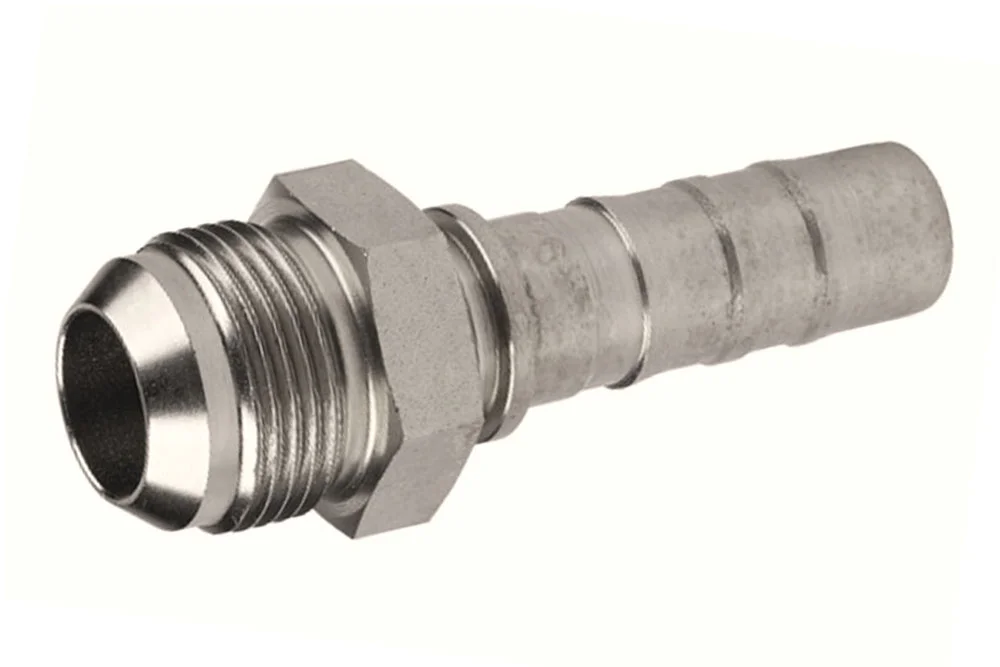

Straight NON SKIVE end fitting with external UNF thread, featuring a seal on a 74° cone (AGJ), designed for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N… . Installation: without cutting the hose rubber. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NJZ110-17-12	End. JIC NON SKIVE GZ 1.1/16", hose 3/4"	20	-	In stock	Enquiry
TI-NJZ110-19-12	End. JIC NON SKIVE GZ 1.3/16", hose 3/4"	20	-	In stock	Enquiry
TI-NJZ110-21-12	End. JIC NON SKIVE GZ 1.5/16", hose 3/4"	20	-	In stock	Enquiry
TI-NJZ110-21-16	End. JIC NON SKIVE GZ 1.5/16", hose 1"	25	-	In stock	Enquiry
TI-NJZ110-26-16	End. JIC NON SKIVE GZ 1.5/8", hose 1"	25	-	In stock	Enquiry
TI-NJZ110-26-20	End. JIC NON SKIVE GZ 1.5/8", hose 1.1/4"	32	-	In stock	Enquiry
TI-NJZ110-30-24	End. JIC NON SKIVE GZ 1.7/8", hose 1.1/2"	38	-	In stock	Enquiry
TI-NJZ110-40-32	End. JIC NON SKIVE GZ 2.1/2", hose 2"	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight NON SKIVE end fitting with external UNF thread, featuring a seal on a 74° cone (AGJ), designed for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N… . Installation: without cutting the hose rubber. Material: carbon steel, galvanized.
