Can NON SKIVE DKOR straight end, carbon steel, type NBW110 be crimped onto 4SP/4SH/R13/R15 hoses with TI-N sleeve without cutting the hose rubber?

Yes . NON SKIVE DKOR straight end, carbon steel, type NBW110 can be crimped onto 4SP/4SH/R13/R15 hoses using the TI-N sleeve without cutting the hose rubber. Explanation: The product description specifies a Straight NON SKIVE end with internal BSP thread and a 60Â° cone seal with Oâring (DKOR), explicitly designed for crimping on 4SP, 4SH, R13 and R15 hose types using the TIâN crimping sleeve. âNON SKIVEâ means the hose cover is not removed prior to assembly, so the hose rubber remains intact during installation. The carbon steel, galvanized construction and the TIâN sleeve are intended to form a secure mechanical crimp over the intact hose cover while the internal 60Â° cone and Oâring provide hydraulic sealing. Ensure correct sleeve dimension, crimper settings and follow manufacturer crimping procedure to achieve proper swage profile and seal integrity.

Does NON SKIVE DKOR straight end, carbon steel, type NBW110 require hose rubber trimming before crimping with TI-N sleeve on 4SP/4SH/R13/R15?

No. NON SKIVE DKOR straight end, carbon steel, type NBW110 does not require hose rubber trimming before crimping with TI-N sleeve on 4SP/4SH/R13/R15 - installation is specified as without cutting the hose rubber.

Can NON SKIVE DKOR straight end, carbon steel, type NBW110 be fitted onto 4SP/4SH/R13/R15 hoses using TI-N sleeve without disassembly?

Yes. the NON SKIVE DKOR straight end, carbon steel, type NBW110 can be fitted onto 4SP/4SH/R13/R15 hoses using the TI-N sleeve without disassembly, provided proper nonâskive installation procedures are followed. The part is specifically designed as a straight NON SKIVE end with internal BSP thread and a 60Â° cone seal with Oâring (DKOR) for crimping on those hose types using the TIâN crimping sleeve, and the installation description states âwithout cutting the hose rubber.â Key points to ensure a correct and reliable fit: - Use the correct TIâN sleeve size specified for the hose and the NBW110 fitting. - Follow the manufacturerâs nonâskive installation instructions exactly (positioning of the sleeve over the hose cover, correct insertion depth of the fitting, and orientation of the Oâring/cone). - Employ a calibrated crimping machine and the correct crimp profile for TIâN sleeves to achieve required crimp dimensions and compression. - Verify crimp dimensions and perform pressure/leak testing per applicable standards after assembly. - Material and finish (carbon steel, galvanized) are appropriate for standard hydraulic applications but confirm compatibility with system fluids and environment. If any doubt remains, consult the fitting and sleeve manufacturerâs technical datasheets or their technical support to confirm sleeve size, crimp specifications, and acceptance criteria for nonâskive assembly with NBW110.

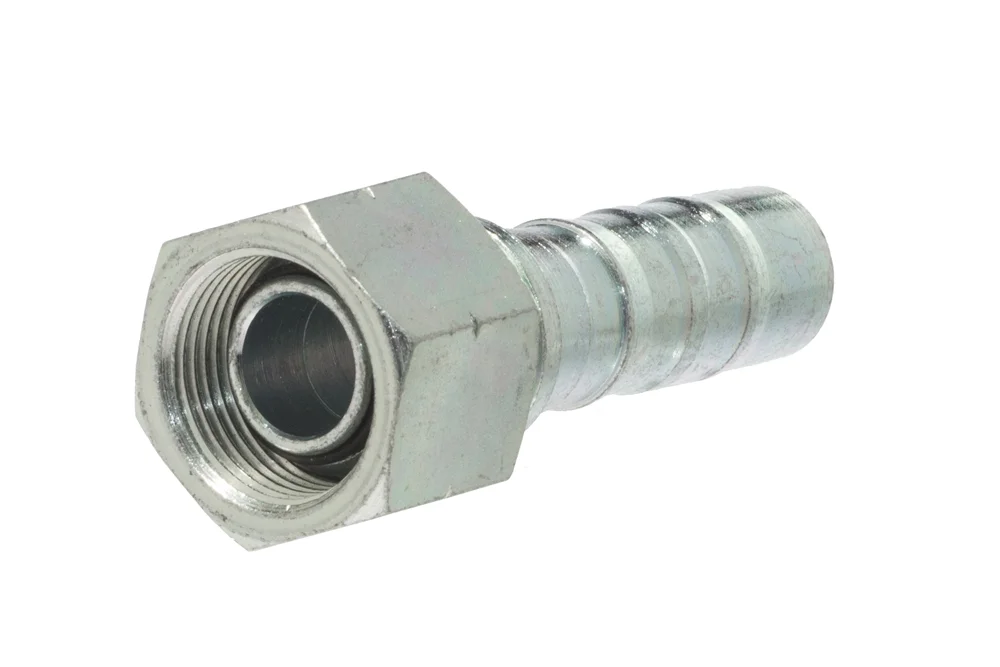

Fitting straight NON SKIVE DKOR, carbon steel, type NBW110

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	2

Fitting straight NON SKIVE with BSP female thread, with 60° cone sealing with an O-ring (DKOR), intended for crimping onto hoses type 4SP, 4SH, R13 and R15 using a ferrule TI-N…. Assembly: without skiving gumy hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NBW110-12-12	Fitting NON SKIVE 3/4" BSP female, hose 3/4", O-ring	20	420	In stock	Enquiry
TI-NBW110-16-12	Fitting NON SKIVE 1" BSP female, hose 3/4", O-ring	20	380	In stock	Enquiry
TI-NBW110-16-16	Fitting NON SKIVE 1" BSP female, hose 1", O-ring	25	380	In stock	Enquiry
TI-NBW110-20-16	Fitting NON SKIVE 1.1/4" BSP female, hose 1", O-ring	25	325	In stock	Enquiry
TI-NBW110-20-20	Fitting NON SKIVE 1.1/4" BSP female, hose 1.1/4", O-ring	32	325	In stock	Enquiry
TI-NBW110-24-20	Fitting NON SKIVE 1.1/2" BSP female, hose 1.1/4", O-ring	32	290	In stock	Enquiry
TI-NBW110-24-24	Fitting NON SKIVE 1.1/2" BSP female, hose 1.1/2", O-ring	38	290	In stock	Enquiry
TI-NBW110-32-32	Fitting NON SKIVE 2" BSP female, hose 2", O-ring	50	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting straight NON SKIVE with BSP female thread, with 60° cone sealing with an O-ring (DKOR), intended for crimping onto hoses type 4SP, 4SH, R13 and R15 using a ferrule TI-N…. Assembly: without skiving gumy hose. Material: carbon steel, galvanized.
