Is the ORFS straight connection with stainless steel BSP socket, type GE-BE compatible with AISI 316 stainless steel hydraulic lines and recommended sealing pressures?

Yes. The ORFS straight connection with stainless steel BSP socket, type GE-BE, made of AISI 316 steel, is compatible with AISI 316 stainless steel hydraulic lines. Material match (AISI 316 to AISI 316) prevents galvanic corrosion and ensures mechanical compatibility for threaded and flared surfaces. The connection uses an ORFS rectangular cross-section elastomer seal seated externally in the BSP socket; when correctly assembled it provides a reliable, high-pressure seal suitable for hydraulic systems. Compatibility and performance notes: - Use the recommended elastomer material (e.g., FKM/Viton, NBR, EPDM) compatible with the fluid and temperature range to achieve rated sealing pressures. - Ensure correct torque and installation practice for ORFS/BSP fittings to avoid seal extrusion or thread damage. - Verify the specific pressure rating from manufacturer data for the GE-BE format and the chosen hose/line assembly; AISI 316 construction supports high pressures typical for hydraulic fittings but exact allowable working pressure depends on size, thread, and elastomer chosen. - Inspect for cleanliness, proper backing support, and absence of damage to sealing faces before assembly. Conclusion: The ORFS straight connection with stainless steel BSP socket, type GE-BE, AISI 316 is compatible with AISI 316 hydraulic lines and, when fitted with the appropriate elastomer seal and installed per manufacturer guidelines, will meet recommended sealing pressures.

Can ORFS straight connection with stainless steel BSP socket, type GE-BE be used in corrosive environments with AISI 316 components?

Yes - the ORFS straight connection with stainless steel BSP socket, type GE-BE, made of AISI 316, is suitable for many corrosive environments. AISI 316 offers good resistance to corrosion, including chloride-containing media, making it appropriate for marine, chemical, and outdoor applications. However, suitability depends on specific conditions: concentration and temperature of corrosive agents, presence of galvanic couples, and mechanical stresses. The elastomer rectangular-seal material and any sealing backup components must also be compatible with the chemicals and temperatures involved. For highly aggressive environments (e.g., strong acids, high chloride at elevated temperature) or where crevice/galvanic corrosion risk is high, confirm materials compatibility and consider higher-alloy stainless steels or specialty alloys. Conduct a site-specific corrosion assessment if in doubt.

Can ORFS straight connection with stainless steel BSP socket, type GE-BE be sterilized for food or medical use without degrading AISI 316?

Yes. ORFS straight connection with stainless steel BSP socket, type GE-BE made of AISI 316 can be sterilized for food or medical use without degrading the base stainless steel, provided proper sterilization methods and conditions are used. Key points: - AISI 316 (austenitic stainless steel with molybdenum) has excellent corrosion resistance and is widely used in food and medical equipment; typical sterile methods (autoclaving/steam sterilization up to ~134 Â°C, dry heat, chemical sterilants like ethylene oxide, and many liquid disinfectants) do not chemically degrade bulk AISI 316. - Mechanical and metallurgical integrity of AISI 316 is preserved under normal sterilization cycles. Repeated autoclaving can cause surface oxidation or minor changes to passive oxide layer, but these changes generally improve corrosion resistance once the passive film re-forms. - Potential constraints specific to ORFS straight connection with stainless steel BSP socket, type GE-BE: - Elastomer seal: ORFS uses a rectangular cross-section elastomer seal. The seal material must be compatible with chosen sterilization method (e.g., many common elastomers degrade with repeated steam, high temperatures, or aggressive chemicals). Verify the seal compound (e.g., FKM/Viton, EPDM, NBR, PTFE) and its temperature/chemical ratings. - Threads and crevices: Threads and small crevices can trap contaminants; ensure design allows effective cleaning and sterilant penetration, and consider passivation and surface finish. - Surface finish and cleanliness: For medical/food applications, required surface finish (Ra) and cleaning/passivation procedures should be met to avoid microbial harborage or corrosion. - Validation: Sterilization process must be validated for the assembled fitting (including seal) per applicable standards (ISO 17665 for steam, ISO 10993 for biocompatibility if patient contact, FDA/EFSA guidance for materials in contact with food/medical fluids). Recommendation: - Confirm the elastomer seal material and its compatibility with intended sterilization method. - Use standard sterilization methods compatible with AISI 316 (steam autoclave, dry heat, chemical sterilants) and validate cycles on assembled ORFS straight connection with stainless steel BSP socket, type GE-BE. - Perform passivation, appropriate cleaning, and, if required, surface finish checks to meet food/medical standards.

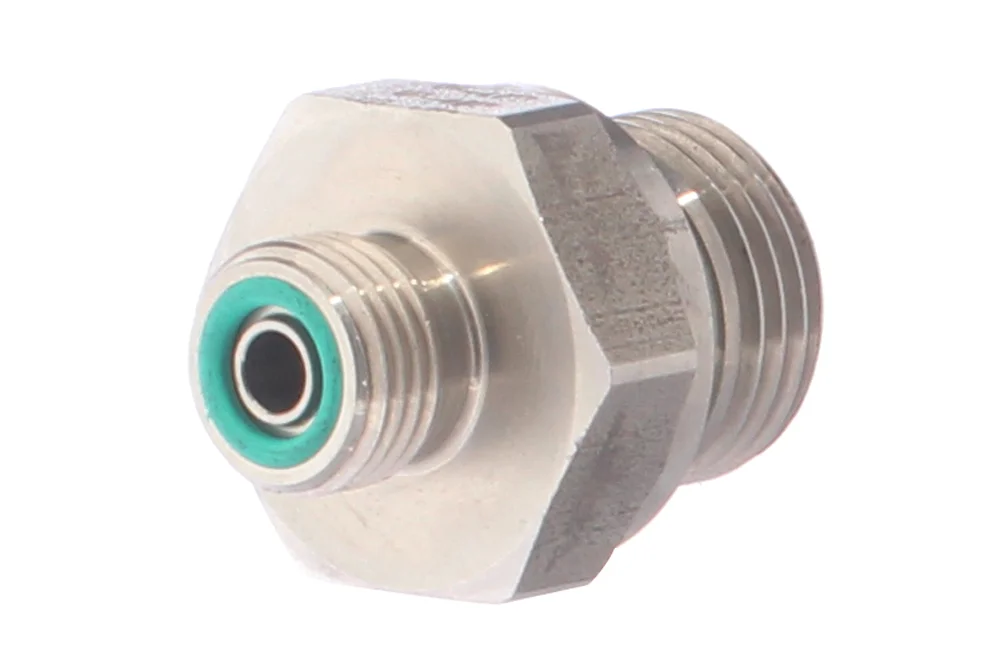

ORFS straight connection with stainless steel BSP socket, type GE-BE

Additional information

Material	SS – stainless steel
Standard length [m]	10

Straight ORFS fitting with external BSP thread (rectangular cross-section elastomer seal), type GE-BE. Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HO-GE-09-BE-02-SS	GZ BSP 1/8" - GZ ORFS 9/16"-18, AISI 316	-	630	In stock	Enquiry
HO-GE-09-BE-04-SS	GZ BSP 1/4" - GZ ORFS 9/16"-18, AISI 316	-	630	In stock	Enquiry
HO-GE-09-BE-06-SS	GZ BSP 3/8" - GZ ORFS 9/16"-18, AISI 316	-	630	In stock	Enquiry
HO-GE-09-BE-08-SS	GZ BSP 1/2" - GZ ORFS 9/16"-18, AISI 316	-	630	In stock	Enquiry
HO-GE-11-BE-02-SS	GZ BSP 1/8" - GZ ORFS 11/16"-16, AISI 316	-	630	In stock	Enquiry
HO-GE-11-BE-04-SS	GZ BSP 1/4" - GZ ORFS 11/16"-16, AISI 316	-	630	In stock	Enquiry
HO-GE-11-BE-06-SS	GZ BSP 3/8" - GZ ORFS 11/16"-16, AISI 316	-	630	In stock	Enquiry
HO-GE-11-BE-08-SS	GZ BSP 1/2" - GZ ORFS 11/16"-16, AISI 316	-	630	In stock	Enquiry
HO-GE-11-BE-12-SS	GZ BSP 3/4" - GZ ORFS 11/16"-16, AISI 316	-	420	In stock	Enquiry
HO-GE-13-BE-04-SS	GZ BSP 1/4" - GZ ORFS 13/16"-16, AISI 316	-	630	In stock	Enquiry
HO-GE-13-BE-06-SS	GZ BSP 3/8" - GZ ORFS 13/16"-16, AISI 316	-	630	In stock	Enquiry
HO-GE-13-BE-08-SS	GZ BSP 1/2" - GZ ORFS 13/16"-16, AISI 316	-	630	In stock	Enquiry
HO-GE-13-BE-12-SS	GZ BSP 3/4" - GZ ORFS 13/16"-16, AISI 316	-	420	In stock	Enquiry
HO-GE-16-BE-04-SS	GZ BSP 1/4" connector - GZ ORFS 1"-14, AISI 316	-	420	In stock	Enquiry
HO-GE-16-BE-06-SS	GZ BSP 3/8" - GZ ORFS 1"-14, AISI 316	-	420	In stock	Enquiry
HO-GE-16-BE-08-SS	GZ BSP 1/2" - GZ ORFS 1"-14, AISI 316	-	420	In stock	Enquiry
HO-GE-16-BE-12-SS	GZ BSP 3/4" - GZ ORFS 1"-14, AISI 316	-	420	In stock	Enquiry
HO-GE-16-BE-16-SS	GZ BSP 1" - GZ ORFS 1"-14, AISI 316	-	420	In stock	Enquiry
HO-GE-19-BE-04-SS	GZ BSP 1/4" - GZ ORFS 1.3/16"-12, AISI 316	-	420	In stock	Enquiry
HO-GE-19-BE-08-SS	GZ BSP 1/2" - GZ ORFS 1.3/16"-12, AISI 316	-	420	In stock	Enquiry
HO-GE-19-BE-12-SS	GZ BSP 3/4" - GZ ORFS 1.3/16"-12, AISI 316	-	420	In stock	Enquiry
HO-GE-19-BE-16-SS	GZ BSP 1" fitting - GZ ORFS 1.3/16"-12, AISI 316	-	420	In stock	Enquiry
HO-GE-19-BE-20-SS	GZ BSP 1.1/4" - GZ ORFS 1.3/16"-12, AISI 316	-	420	In stock	Enquiry
HO-GE-23-BE-04-SS	GZ BSP 1/4" - GZ ORFS 1.7/16"-12, AISI 316	-	420	In stock	Enquiry
HO-GE-23-BE-12-SS	GZ BSP 3/4" - GZ ORFS 1.7/16"-12, AISI 316	-	420	In stock	Enquiry
HO-GE-23-BE-16-SS	GZ BSP 1" fitting - GZ ORFS 1.7/16"-12, AISI 316	-	420	In stock	Enquiry
HO-GE-23-BE-20-SS	GZ BSP 1.1/4" - GZ ORFS 1.7/16"-12, AISI 316	-	420	In stock	Enquiry
HO-GE-23-BE-24-SS	GZ BSP 1.1/2" - GZ ORFS 1.7/16"-12, AISI 316	-	280	In stock	Enquiry
HO-GE-27-BE-16-SS	GZ BSP 1" fitting - GZ ORFS 1.11/16"-12, AISI 316	-	280	In stock	Enquiry
HO-GE-27-BE-20-SS	GZ BSP 1.1/4" - GZ ORFS 1.11/16"-12, AISI 316	-	280	In stock	Enquiry
HO-GE-27-BE-24-SS	GZ BSP 1.1/2" - GZ ORFS 1.11/16"-12, AISI 316	-	280	In stock	Enquiry
HO-GE-32-BE-24-SS	GZ BSP 1.1/2" - GZ ORFS 2"-12, AISI 316	-	280	In stock	Enquiry
