Does the Straight connection ORFS with UNF socket in carbon steel, type GE-UN require a specific O-ring material for reliable sealing with the galvanized finish?

No . Straight connection ORFS with UNF socket in carbon steel, type GE-UN does not require a special O-ring material solely because of the galvanized finish. The ORFS design seals via an O-ring compressed between the flat face of the female port and the washer/face of the male fitting; proper sealing depends primarily on correct O-ring material for the fluid, temperature and pressure, and on correct O-ring size and installation. However, consider these points: - Galvanizing can be slightly abrasive or contain surface irregularities; use an O-ring material compatible with light surface asperities (e.g., nitrile (NBR) or HNBR are common) and ensure the mating faces are smooth and free of burrs. - For corrosion protection and to avoid galvanic issues with certain fluids, select O-ring material chemically compatible with the hydraulic fluid and any cleaning agents. - For high temperatures, aggressive fluids, or aerospace/critical applications, choose appropriate compounds (e.g., FKM/Viton for high temp/chemical resistance, EPDM for water/glycol systems) and verify compatibility with the galvanized coating. - Use standard hardness (70â90 Shore A) as recommended for ORFS seals and ensure proper washer/backup configuration. In summary: no unique O-ring material is mandated by the galvanized finish of Straight connection ORFS with UNF socket in carbon steel, type GE-UN; pick the O-ring based on fluid, temperature, pressure and surface condition, and ensure good surface preparation.

Is the Straight connection ORFS with UNF socket in carbon steel, type GE-UN compatible with standard nitrile O-rings for sealing after galvanization?

No. Straight connection ORFS with UNF socket in carbon steel, type GE-UN is not compatible with standard nitrile (NBR) O-rings for sealing after galvanization. Galvanizing (zinc coating) can introduce roughness, sharp edges or raised zinc features at the sealing face and UNF thread area that may damage nitrile O-rings or prevent proper compression. Additionally, galvanization can cause chemical interactions and altered surface hardness that reduce NBR performance, especially with elevated temperatures, oils or fuels. For reliable sealing after galvanization use O-rings made of more durable elastomers (e.g., Viton/FKM, EPDM for certain media) sized for ORFS standards, and ensure post-plating machining/inspection of the sealing faces and proper O-ring groove dimensions.

Can Straight connection ORFS with UNF socket in carbon steel, type GE-UN use Viton O-rings after galvanizing?

Generally no. using Viton (FKM) O-rings with Straight connection ORFS with UNF socket in carbon steel, type GE-UN after galvanizing is not recommended without specific verification. Why: - Hot-dip galvanizing (or some electro-galvanizing processes) exposes the threaded/sealing areas to high temperatures and caustic/acid baths that can leave residues, surface stress, or alter dimensions and surface roughness. These changes can affect O-ring sealing performance and may chemically attack or accelerate aging of elastomers. - Viton is chemically resistant to many substances, but certain galvanizing residues (alkalines, fluxes, acids) or post-plating treatments can cause swelling, embrittlement or reduced compression set life unless parts are thoroughly cleaned and neutralized. - ORFS (O-ring face seal) relies on controlled groove geometry and a clean mating face. Galvanize coating thickness and irregularities can change groove clearances and lead to extrusion or insufficient squeeze of the Viton O-ring. Threaded UNF areas coated with zinc can also alter assembly torque and sealing load. When it may be acceptable: - If the Straight connection ORFS with UNF socket in carbon steel, type GE-UN is galvanized with a controlled, thin plating process compatible with elastomers (e.g., zinc electroplate with proper post-treatment) and the parts undergo thorough cleaning, passivation and dimensional inspection to ensure correct O-ring compression. - If the Viton compound selected has been tested and qualified against the specific galvanizing chemistry and any post-treatment residues. - If protective measures are taken: use of a suitable lubricant/assembly compound compatible with Viton and the galvanize, protective masking during plating, or specifying plating exclusion in the O-ring groove area. Recommended actions: 1. Consult the GE-UN manufacturerâs data sheet and galvanizer for compatibility and allowable plating thickness. 2. Perform material compatibility testing: assemble Viton O-rings on galvanized samples and run accelerated aging, chemical exposure and leak tests. 3. Consider alternative: use stainless steel or plated-to-ISO-controlled thickness, or mask grooves prior to galvanizing; or use O-ring materials specifically qualified for post-plating exposure. Conclusion: Do not assume Viton O-rings are safe after galvanizing for Straight connection ORFS with UNF socket in carbon steel, type GE-UN. validate with manufacturer and testing or use design/process controls to ensure reliable sealing.

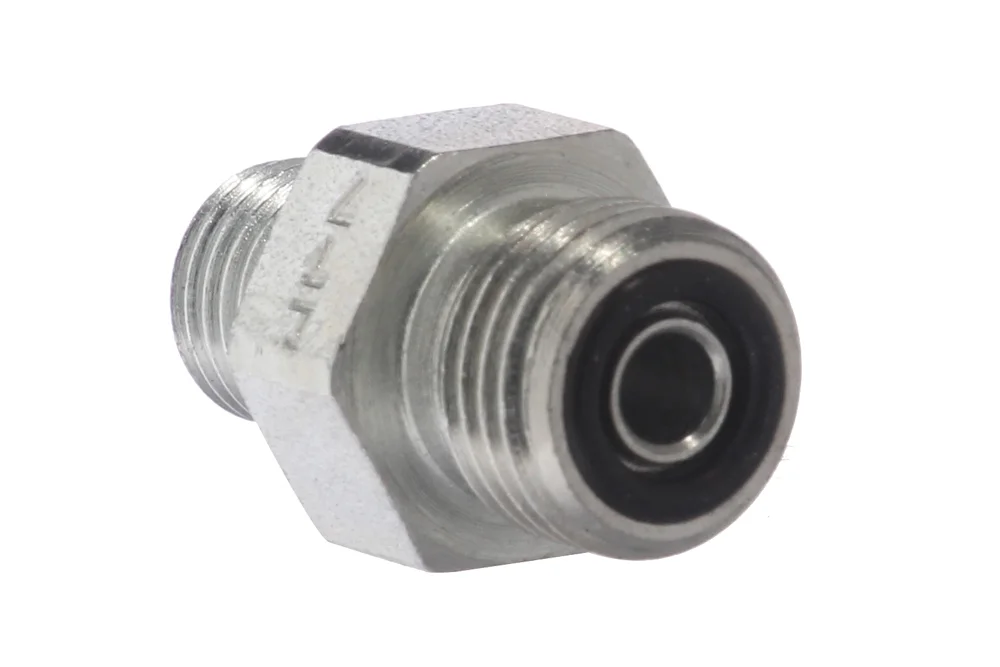

Fitting straight ORFS with UNF male of carbon steel, type GE-UN

Additional information

Material	CS – steel (cast iron)

Fitting straight ORFS with UNF male thread (sealing an O-ring with washer). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HO-GE-09-UN-07	Fitting 7/16"-20 UNF male - male ORFS 9/16"-18	-	630	In stock	Enquiry
HO-GE-09-UN-08	Fitting 1/2"-20 UNF male - male ORFS 9/16"-18	-	630	In stock	Enquiry
HO-GE-09-UN-09	Fitting 9/16"-18 UNF male - male ORFS 9/16"-18	-	630	In stock	Enquiry
HO-GE-09-UN-12	Fitting 3/4"-16 UNF male - male ORFS 9/16"-18	-	630	In stock	Enquiry
HO-GE-11-UN-07	Fitting 7/16"-20 UNF male - male ORFS 11/16"-16	-	630	In stock	Enquiry
HO-GE-11-UN-08	Fitting 1/2"-20 UNF male - male ORFS 11/16"-16	-	630	In stock	Enquiry
HO-GE-11-UN-09	Fitting 9/16"-18 UNF male - male ORFS 11/16"-16	-	630	In stock	Enquiry
HO-GE-11-UN-12	Fitting 3/4"-16 UNF male - male ORFS 11/16"-16	-	630	In stock	Enquiry
HO-GE-11-UN-14	Fitting 7/8"-14 UNF male - male ORFS 11/16"-16	-	630	In stock	Enquiry
HO-GE-11-UN-17	Fitting 1.1/16"-12 UNF male - male ORFS 11/16"-16	-	420	In stock	Enquiry
HO-GE-13-UN-09	Fitting 9/16"-18 UNF male - male ORFS 13/16"-16	-	630	In stock	Enquiry
HO-GE-13-UN-12	Fitting 3/4"-16 UNF male - male ORFS 13/16"-16	-	630	In stock	Enquiry
HO-GE-13-UN-14	Fitting 7/8"-14 UNF male - male ORFS 13/16"-16	-	630	In stock	Enquiry
HO-GE-13-UN-17	Fitting 1.1/16"-12 UNF male - male ORFS 13/16"-16	-	420	In stock	Enquiry
HO-GE-13-UN-21	Fitting 1.5/16"-12 UNF male - male ORFS 13/16"-16	-	420	In stock	Enquiry
HO-GE-16-UN-12	Fitting 3/4"-16 UNF male - male ORFS 1"-14	-	420	In stock	Enquiry
HO-GE-16-UN-14	Fitting 7/8"-14 UNF male - male ORFS 1"-14	-	420	In stock	Enquiry
HO-GE-16-UN-17	Fitting 1.1/16"-12 UNF male - male ORFS 1"-14	-	420	In stock	Enquiry
HO-GE-19-UN-12	Fitting 3/4"-16 UNF male - male ORFS 1.3/16"-12	-	420	In stock	Enquiry
HO-GE-19-UN-14	Fitting 7/8"-14 UNF male - male ORFS 1.3/16"-12	-	420	In stock	Enquiry
HO-GE-19-UN-17	Fitting 1.1/16"-12 UNF male - male ORFS 1.3/16"-12	-	420	In stock	Enquiry
HO-GE-19-UN-21	Fitting 1.5/16"-12 UNF male - male ORFS 1.3/16"-12	-	420	In stock	Enquiry
HO-GE-23-UN-17	Fitting 1.1/16"-12 UNF male - male ORFS 1.7/16"-12	-	420	In stock	Enquiry
HO-GE-23-UN-21	Fitting 1.5/16"-12 UNF male - male ORFS 1.7/16"-12	-	420	In stock	Enquiry
HO-GE-23-UN-26	Fitting 1.5/8"-12 UNF male - male ORFS 1.7/16"-12	-	280	In stock	Enquiry
HO-GE-27-UN-21	Fitting 1.5/16"-12 UNF male - male ORFS 1.11/16"-12	-	280	In stock	Enquiry
HO-GE-27-UN-26	Fitting 1.5/8"-12 UNF male - male ORFS 1.11/16"-12	-	280	In stock	Enquiry
HO-GE-27-UN-30	Fitting 1.7/8"-12 UNF male - male ORFS 1.11/16"-12	-	280	In stock	Enquiry
HO-GE-32-UN-26	Fitting 1.5/8"-12 UNF male - male ORFS 2"-12	-	280	In stock	Enquiry
HO-GE-32-UN-30	Fitting 1.7/8"-12 UNF male - male ORFS 2"-12	-	280	In stock	Enquiry
