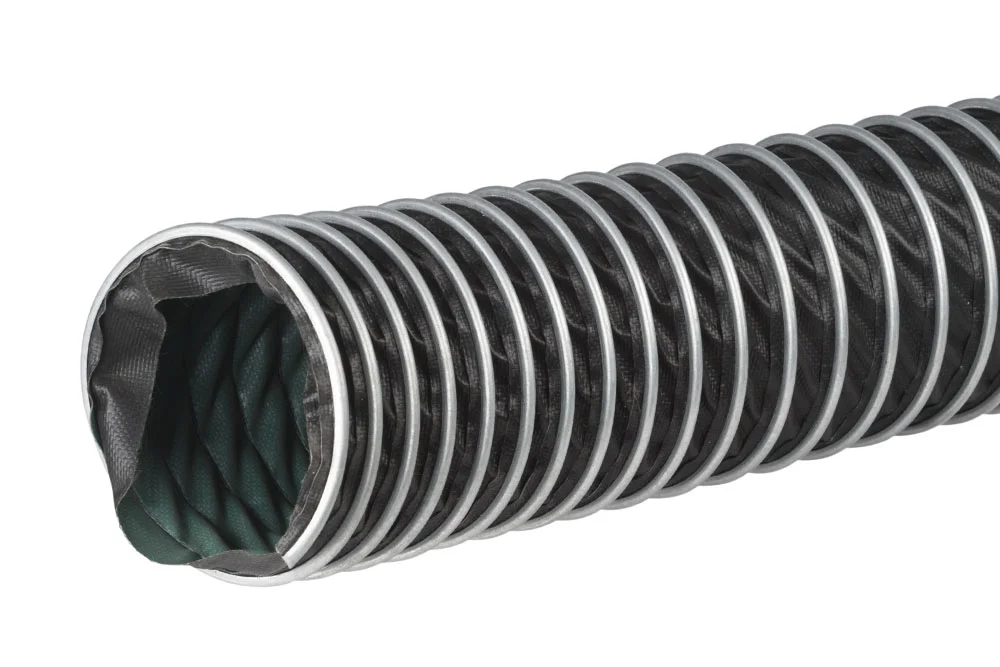

Extraction hose for transfer of chemical fumes, paints, solvents GRIPFLEX FKM

Additional information

Material

PEE – polyester

Maximum operating temperature [°C]

210

Minimum operating temperature [°C]

-25

Vacuum resistance

yes

Standard length [m]

10, 2

Reinforcement

external spiral made of galvanized steel wire and sheet metal

Lightweight, highly flexible and bendable, chemically resistant hose designed for the extraction and transfer of aggressive chemical vapors from solvents, paints, hydrocarbons, chemicals, etc. Thanks to the conductive FKM rubber, it has antistatic properties (surface resistance R <106 Ω). Very good resistance to oil, aromatic substances, most acids, and chemicals. Excellent resistance to elevated temperatures. Resistant to UV radiation and ozone. Characterized by high compressibility – up to 1:6, strong construction resistant to vibrations and stretching, impact resistance due to the external spiral. Used in the paint, chemical, and paper industries. Also available with a stainless steel spiral (from a diameter of 80 mm). Hose installation on couplings with bridge clamps (left-handed). Chemical resistance verification – chemical resistance table for FKM (preliminary selection), confirmation of resistance and application conditions – by Tubes International. Standard length: from 2 to 10 m. Hose material: polyester fabric coated with FKM, antistatic, externally black. Reinforcement: external spiral made of steel sheet and wire. Operating temperature: from -25°C to +210°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TS-VITON-050GRIPFLEX VITON hose 50 mm500.9In stock
Enquiry
TS-VITON-060GRIPFLEX VITON hose 60 mm600.78In stock
Enquiry
TS-VITON-065GRIPFLEX VITON hose 65 mm650.68In stock
Enquiry
TS-VITON-070GRIPFLEX VITON hose 70 mm700.67In stock
Enquiry
TS-VITON-075GRIPFLEX VITON hose 75 mm750.62In stock
Enquiry
TS-VITON-080GRIPFLEX VITON hose 80 mm800.61In stock
Enquiry
TS-VITON-090GRIPFLEX VITON hose 90 mm900.56In stock
Enquiry
TS-VITON-100GRIPFLEX VITON hose 100 mm1000.51In stock
Enquiry
TS-VITON-110GRIPFLEX VITON hose 110 mm1100.48In stock
Enquiry
TS-VITON-120GRIPFLEX VITON hose 120 mm1200.36In stock
Enquiry
TS-VITON-125GRIPFLEX VITON hose 125 mm1250.33In stock
Enquiry
TS-VITON-130GRIPFLEX VITON hose 130 mm1300.28In stock
Enquiry
TS-VITON-140GRIPFLEX VITON hose 140 mm1400.25In stock
Enquiry
TS-VITON-150GRIPFLEX VITON hose 150 mm1500.22In stock
Enquiry
TS-VITON-160GRIPFLEX VITON hose 160 mm1600.21In stock
Enquiry
TS-VITON-170GRIPFLEX VITON hose 170 mm1600.19In stock
Enquiry
TS-VITON-175GRIPFLEX VITON hose 175 mm1800.185In stock
Enquiry
TS-VITON-180GRIPFLEX VITON hose 180 mm1800.172In stock
Enquiry
TS-VITON-200GRIPFLEX VITON hose 200 mm2000.148In stock
Enquiry
TS-VITON-215GRIPFLEX VITON hose 215 mm2200.128In stock
Enquiry
TS-VITON-225GRIPFLEX VITON hose 225 mm2250.115In stock
Enquiry
TS-VITON-250GRIPFLEX VITON hose 250 mm2500.1In stock
Enquiry
TS-VITON-275GRIPFLEX VITON hose 275 mm2750.08In stock
Enquiry
TS-VITON-300GRIPFLEX VITON hose 300 mm3000.07In stock
Enquiry
TS-VITON-315GRIPFLEX VITON hose 315 mm3250.062In stock
Enquiry
TS-VITON-325GRIPFLEX VITON hose 325 mm3250.059In stock
Enquiry
TS-VITON-350GRIPFLEX VITON hose 350 mm3500.056In stock
Enquiry
TS-VITON-375GRIPFLEX VITON hose 375 mm3500.05In stock
Enquiry
TS-VITON-400GRIPFLEX VITON hose 400 mm4000.047In stock
Enquiry
TS-VITON-450GRIPFLEX VITON hose 450 mm4500.045In stock
Enquiry
TS-VITON-500GRIPFLEX VITON hose 500 mm5000.043In stock
Enquiry
TS-VITON-600GRIPFLEX VITON hose 600 mm6000.039In stock
Enquiry
TS-VITON-700GRIPFLEX VITON hose 700 mm7000.031In stock
Enquiry
TS-VITON-800GRIPFLEX VITON hose 800 mm8000.022In stock
Enquiry
TS-VITON-900GRIPFLEX VITON hose 900 mm9000.016In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Lightweight, highly flexible and bendable, chemically resistant hose designed for the extraction and transfer of aggressive chemical vapors from solvents, paints, hydrocarbons, chemicals, etc. Thanks to the conductive FKM rubber, it has antistatic properties (surface resistance R <106 Ω). Very good resistance to oil, aromatic substances, most acids, and chemicals. Excellent resistance to elevated temperatures. Resistant to UV radiation and ozone. Characterized by high compressibility – up to 1:6, strong construction resistant to vibrations and stretching, impact resistance due to the external spiral. Used in the paint, chemical, and paper industries. Also available with a stainless steel spiral (from a diameter of 80 mm). Hose installation on couplings with bridge clamps (left-handed). Chemical resistance verification – chemical resistance table for FKM (preliminary selection), confirmation of resistance and application conditions – by Tubes International. Standard length: from 2 to 10 m. Hose material: polyester fabric coated with FKM, antistatic, externally black. Reinforcement: external spiral made of steel sheet and wire. Operating temperature: from -25°C to +210°C.

Additional information

Material

PEE – polyester

Maximum operating temperature [°C]

210

Minimum operating temperature [°C]

-25

Vacuum resistance

yes

Standard length [m]

10, 2

Reinforcement

external spiral made of galvanized steel wire and sheet metal
