Is the T-piece "T" with GW BSP/GZ BSP/GW BSP, brass, type EW rated for continuous use at 63 bar and temperatures between -10Â°C and +90Â°C?

Yes. The T-piece "T" with GW BSP/GZ BSP/GW BSP, brass, type EW is rated for continuous use at up to 63 bar and for operating temperatures from -10Â°C to +90Â°C, per the provided specification.

Can the T-piece "T" with GW BSP/GZ BSP/GW BSP, brass, type EW be used in potable water systems at up to 63 bar and -10Â°C to +90Â°C?

Yes. The T-piece "T" with GW BSP/GZ BSP/GW BSP, brass, type EW can be used in potable water systems within the specified limits: working pressure up to 63 bar and operating temperature from -10Â°C to +90Â°C. The brass construction and BSP threads are compatible with typical potable water installations, provided all connections, seals (e.g., PTFE tape or approved gasket materials), and installation practices meet local potable water regulations and standards. Ensure any surface treatments, fluxes, or sealants used are certified safe for drinking water.

Does the T-piece "T" with GW BSP/GZ BSP/GW BSP, brass, type EW support fittings for hydraulic systems at up to 63 bar?

Yes. The T-piece "T" with GW BSP/GZ BSP/GW BSP, brass, type EW supports fittings for hydraulic systems up to 63 bar. The product description states: brass material, working pressure up to 63 bar, and operating temperature range from -10Â°C to +90Â°C, which makes it suitable for many hydraulic applications within those pressure and temperature limits. Ensure system compatibility with BSP thread types (2 x internal BSP, 1 x external BSP) and confirm any specific fluid, dynamic loads, or safety factors with your system requirements before use.

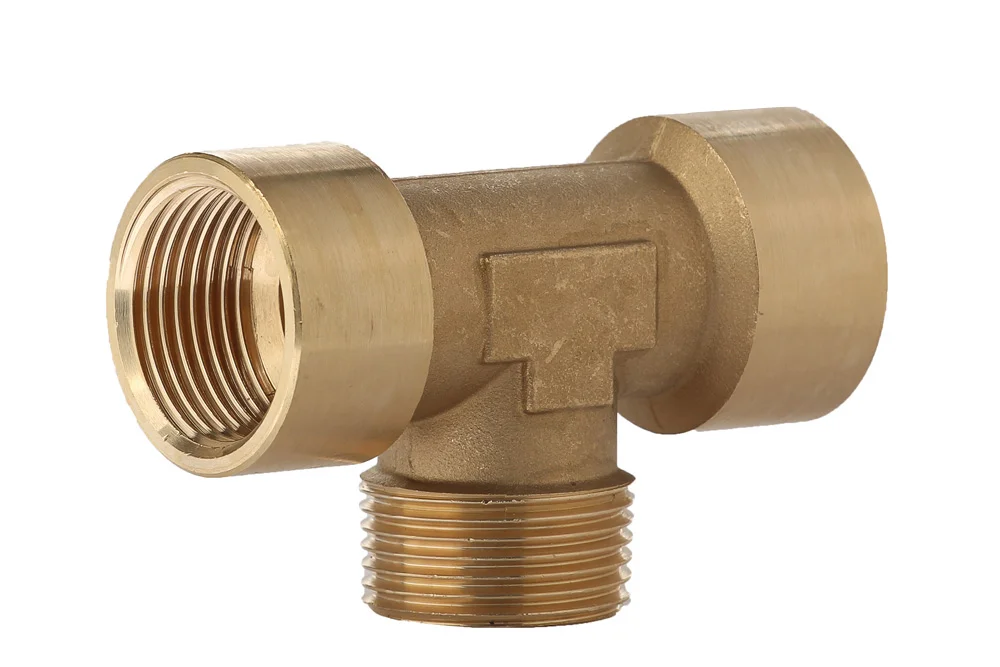

A tee “T” with female thread BSP/BSP male/BSP female, brass, type EW

Additional information

Material	B – brass (bronze)

A brass “T” tee with 2 x a thread internal BSP and 1 x a thread external BSP. Material: brass. Working pressure: up to 63 bar. Operating temperature: from -10°C to +90°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-MS-18562	Tee T with female/male/female 1/8" BSP, brass	-	63	In stock	Enquiry
EW-MS-18563	Tee T with female/male/female 1/4" BSP, brass	-	63	In stock	Enquiry
EW-MS-18565	Tee T with female/male/female 3/8" BSP, brass	-	63	In stock	Enquiry
EW-MS-18567	Tee T with female/male/female 1/2" BSP, brass	-	63	In stock	Enquiry
EW-MS-18568	Tee T with female/male/female 3/4" BSP, brass	-	63	In stock	Enquiry
EW-MS-18569	Tee T with female/male/female 1" BSP, brass	-	63	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A brass “T” tee with 2 x a thread internal BSP and 1 x a thread external BSP. Material: brass. Working pressure: up to 63 bar. Operating temperature: from -10°C to +90°C.
