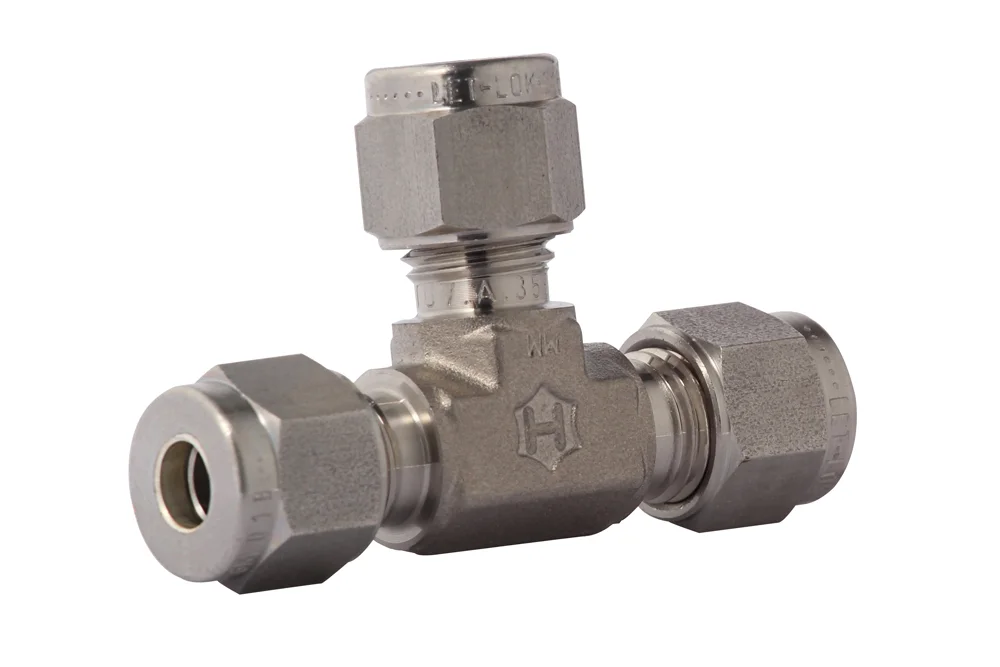

Coupling A tee for a metric tube, steel stainless, M764L

All products, LET-LOK precision connectors/

Additional information

Material	SS – stainless steel

A LET-LOK® tee fitting for a metric tube intended mainly for the chemical, petrochemical and pharmaceutical industry, power generation, nuclear power plants and process engineering. The permissible working pressure is determined on the basis of the outer diameter and the wall thickness of the tube (details in the attachment). Material: steel AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-LM764L-02-SS	Tee fitting for a tube 2 mm, SS	-	-	In stock	Enquiry
HM-LM764L-03-SS	Tee fitting for a tube 3 mm, SS	-	-	In stock	Enquiry
HM-LM764L-04-SS	Tee fitting for a tube 4 mm, SS	-	-	In stock	Enquiry
HM-LM764L-06-SS	Tee fitting for a tube 6 mm, SS	-	-	In stock	Enquiry
HM-LM764L-08-SS	Tee fitting for a tube 8 mm, SS	-	-	In stock	Enquiry
HM-LM764L-10-SS	Tee fitting for a tube 10 mm, SS	-	-	In stock	Enquiry
HM-LM764L-12-SS	Tee fitting for a tube 12 mm, SS	-	-	In stock	Enquiry
HM-LM764L-14-SS	Tee fitting for a tube 14 mm, SS	-	-	In stock	Enquiry
HM-LM764L-15-SS	Tee fitting for a tube 15 mm, SS	-	-	In stock	Enquiry
HM-LM764L-16-SS	Tee fitting for a tube 16 mm, SS	-	-	In stock	Enquiry
HM-LM764L-18-SS	Tee fitting for a tube 18 mm, SS	-	-	In stock	Enquiry
HM-LM764L-20-SS	Tee fitting for a tube 20 mm, SS	-	-	In stock	Enquiry
HM-LM764L-22-SS	Tee fitting for a tube 22 mm, SS	-	-	In stock	Enquiry
HM-LM764L-25-SS	Tee fitting for a tube 25 mm, SS	-	-	In stock	Enquiry
HM-LM764L-38-SS	Tee fitting for a tube 38 mm, SS	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A LET-LOK® tee fitting for a metric tube intended mainly for the chemical, petrochemical and pharmaceutical industry, power generation, nuclear power plants and process engineering. The permissible working pressure is determined on the basis of the outer diameter and the wall thickness of the tube (details in the attachment). Material: steel AISI 316.
