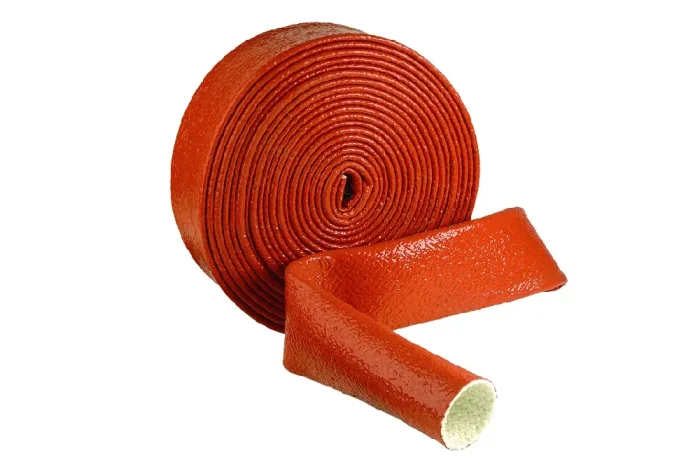

Thermal shield for aerospace, rail and marine industries AEROSTYLE PYROJACKET
Special version of the PYROJACKET shield designed primarily for aviation (manufactured according to SAE Aerospace Standard 1072E), railway industry (compliant with DIN EN 45545-2:2013-08), and marine applications. Additionally, it is certified in diameters from 13 mm to 127 mm by DNV for temperatures up to +800°C for 30 minutes (ISO 15540) and by MSHA (for use in mines). A VCO version with flame-retardant Velcro is available upon request, in diameters ranging from 22 mm to 140 mm, with lengths up to 30 meters. The Velcro mounting allows the shield to be easily installed without disconnecting wires, hoses, or pipes. Material: fiberglass coated with silicone in a rusty color. Operating temperature: from -54°C to +260°C (up to +1093°C for 15 to 20 minutes), (up to +1650°C for 15 to 30 seconds).
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Special version of the PYROJACKET shield designed primarily for aviation (manufactured according to SAE Aerospace Standard 1072E), railway industry (compliant with DIN EN 45545-2:2013-08), and marine applications. Additionally, it is certified in diameters from 13 mm to 127 mm by DNV for temperatures up to +800°C for 30 minutes (ISO 15540) and by MSHA (for use in mines). A VCO version with flame-retardant Velcro is available upon request, in diameters ranging from 22 mm to 140 mm, with lengths up to 30 meters. The Velcro mounting allows the shield to be easily installed without disconnecting wires, hoses, or pipes. Material: fiberglass coated with silicone in a rusty color. Operating temperature: from -54°C to +260°C (up to +1093°C for 15 to 20 minutes), (up to +1650°C for 15 to 30 seconds).
Additional information
| Maximum operating temperature [°C] | 260 |
|---|---|
| Minimum operating temperature [°C] | -54 |
| Standard length [m] | 15, 30 |
