Can Tee body for BANJO twist-on fitting, type D6 withstand continuous 18 bar pressure with hoses made of soft plastics using D7âD10 through bolts and nickel-plated brass construction?

Based on the provided description, Tee body for BANJO twist-on fitting, type D6 Format with D7âD10 through bolts and nickel-plated brass construction is specified with a working pressure of 18 bar and is designed for hoses made of soft plastics using a twist-on nut to secure the hose. Therefore, it is intended to withstand continuous 18 bar pressure when assembled as specified. Important caveats: ensure the specific hose material, wall thickness and the twist-on nut produce a reliable seal at 18 bar; verify compatibility and torque of the chosen through bolt size (D7âD10) and that installation follows manufacturer recommendations. If any component (hose, nut, bolts) differs from the described specification or installation is improper, continuous 18 bar may not be safe.

Does Tee body for BANJO twist-on fitting, type D6 allow rotational positioning while maintaining 18 bar pressure with soft-plastic hoses?

Yes. Tee body for BANJO twist-on fitting, type D6 allows rotational positioning while maintaining up to 18 bar working pressure with soft-plastic hoses. The hose is fitted over the D6 socket and secured by the nut; the design permits orienting the connector to the desired orientation. Ensure proper hose fit, correct tightening of the nut, and use hoses rated for 18 bar to maintain seal and safe operation.

Is Tee body for BANJO twist-on fitting, type D6 compatible with standard hose clamps for soft-plastic hoses?

Yes. Tee body for BANJO twist-on fitting, type D6 is compatible with standard hose clamps for soft-plastic hoses. The product description states the connection is made by fitting the hose onto the D6 socket end and tightening with a nut; for hoses made of soft plastics this type of barbed/twist-on socket is intended to be secured externally. Standard hose clamps (worm-drive, Oetiker-style crimp, or similar) will provide the needed compression to seal soft-plastic hoses on the D6 fitting, provided you choose the correct clamp size and apply proper torque to avoid cutting into the hose material. Practical tips: - Use a clamp sized for the hose OD and the D6 socket profile. - For very soft plastics, consider a wide-band clamp or a captive/ear clamp to reduce hose damage. - Ensure the hose is fully seated on the fitting before tightening the nut/clamp. - Verify compatibility of materials (clamp metal vs. hose chemical exposure) and test at the stated working pressure (18 bar) under operating conditions.

Tee body for BANJO screw-together fitting, type D6

All products, Banjo fittings/

Additional information

Material	B – brass (bronze)

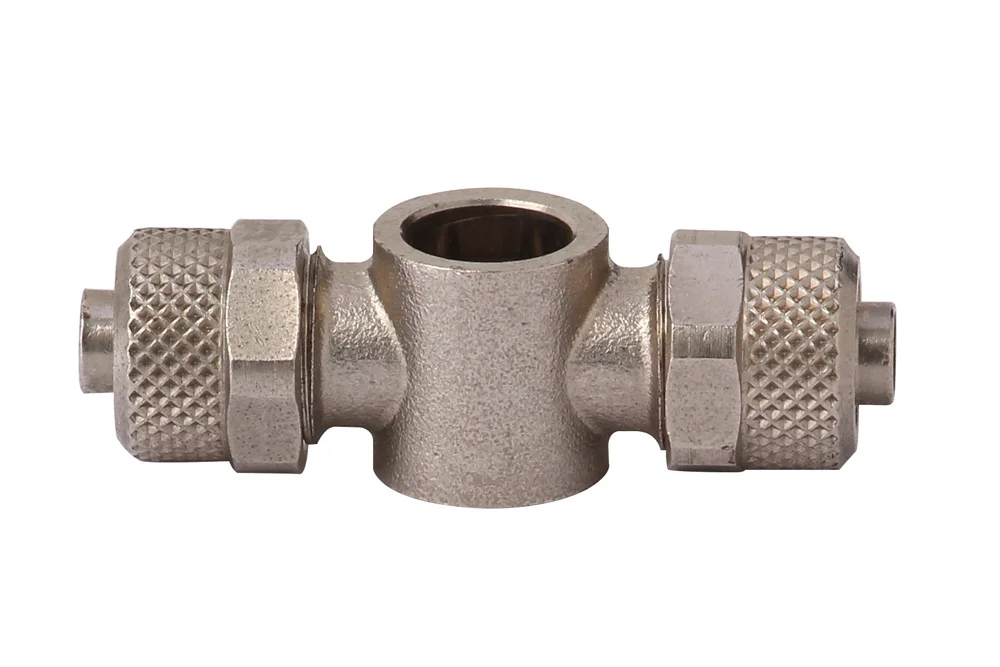

Tee body of the BANJO coupling with push-on connections, type D6, intended for hoses made of soft plastics. The connection is made by pushing the hose onto the fitting and clamping it by tightening the nut. The tee body of the BANJO coupling allows the coupling to be set in the desired position. Through-bolts for the body: D7, D8, D9, D10. Material: nickel-plated brass. Working pressure: 18 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2406001	Tee fitting BANJO D6, push-on, 2 x hose 6/4, for bolt BSP 1/8"	-	18	In stock	Enquiry
MW-2406002	Tee fitting BANJO D6, push-on, 2 x hose 6/4, for bolt BSP 1/4"	-	18	In stock	Enquiry
MW-2406004	Tee fitting BANJO D6, push-on, 2 x hose 8/6, for bolt BSP 1/8"	-	18	In stock	Enquiry
MW-2406005	Tee fitting BANJO D6, push-on, 2 x hose 8/6, for bolt BSP 1/4"	-	18	In stock	Enquiry
MW-2406006	Tee fitting BANJO D6, push-on, 2 x hose 8/6, for bolt BSP 3/8"	-	18	In stock	Enquiry
MW-2406008	Tee fitting BANJO D6, push-on, 2 x hose 10/8, for bolt BSP 1/4"	-	18	In stock	Enquiry
MW-2406009	Tee fitting BANJO D6, push-on, 2 x hose 10/8, for bolt BSP 3/8"	-	18	In stock	Enquiry
MW-2406010	Tee fitting BANJO D6, push-on, 2 x hose 10/8, for bolt BSP 1/2"	-	18	In stock	Enquiry
MW-2406011	Tee fitting BANJO D6, push-on, 2 x hose 12/10, for bolt BSP 1/2"	-	18	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Tee body of the BANJO coupling with push-on connections, type D6, intended for hoses made of soft plastics. The connection is made by pushing the hose onto the fitting and clamping it by tightening the nut. The tee body of the BANJO coupling allows the coupling to be set in the desired position. Through-bolts for the body: D7, D8, D9, D10. Material: nickel-plated brass. Working pressure: 18 bar.
