Is the TR-S reducing tee fitting, carbon steel, zinc-nickel, suitable for use in saline or coastal environments given its 6â10 Âµm Zn-Ni coating and 720-hour salt spray resistance?

Short answer: Yes . with caveats. The TR-S reducing tee fitting, carbon steel, zinc-nickel, with a ZnâNi coating thickness of 6â10 Âµm and certified resistance up to 720 hours in a neutral salt spray (NSS) test offers significantly better corrosion protection than standard zinc plating and is commonly accepted for many coastal and moderately saline environments. ZnâNi coatings provide excellent barrier and sacrificial protection and good adhesion to carbon steel, delaying white rust and pitting. Caveats to consider: - NSS 720h is a good laboratory indicator but does not fully replicate all field conditions (continuous wet/dry cycles, chlorides, temperature, biological factors). Actual service life in a harsh marine splash zone or submerged conditions may be shorter. - For long-term use in highly aggressive marine environments (splash zone, tidal areas, direct seawater contact), stainless steel (e.g., 316/316L) or additional protective measures (paints, seals, sacrificial anodes, regular maintenance) are often recommended. - Threaded hydraulic fittings are also vulnerable at mechanical contact points and sealing surfaces; ensure installation practices and inspection/maintenance schedules are adequate. Recommendation: For indoor coastal, sheltered outdoor, or applications with occasional salt exposure, TR-S reducing tee fitting, carbon steel, zinc-nickel is suitable. For continuous, heavy marine exposure or critical systems, consider stainless alternatives or further corrosion protection.

Does the TR-S reducing tee fitting, carbon steel, zinc-nickel, meet corrosion resistance requirements for offshore hydraulic systems?

Yes. The TR-S reducing tee fitting, carbon steel, zinc-nickel, meets typical offshore hydraulic corrosion resistance requirements. It is a DIN 2353 reducing tee (type TL-S) with 24Â° socket and external metric thread, safety factor 4:1, heavy series S, and a zincânickel coating 6â10 Âµm thick. The specified coating provides very high corrosion resistance-tested up to 720 hours in salt spray without corrosion-which aligns with common offshore standards for protection against marine atmospheres. For final approval in a specific installation, verify project specifications, applicable marine/offshore standards (e.g., NORSOK, ISO, client specs), and any required thirdâparty certification.

Can the TR-S reducing tee fitting, carbon steel, zinc-nickel, withstand long-term exposure to de-icing salts on road maintenance equipment?

Yes. the TR-S reducing tee fitting, carbon steel, zinc-nickel, is suitable for long-term exposure to de-icing salts used in road maintenance equipment, with some practical caveats. Why it performs well - Zincânickel coating (6â10 Âµm) provides very high corrosion resistance; specified testing shows up to 720 hours without corrosion in a neutral salt spray chamber (ASTM B117 equivalent), which indicates excellent protection against chloride-induced corrosion compared with standard zinc plating. - Carbon steel base with a robust zincânickel layer and 4:1 safety factor (DIN 2353 TLâS design) gives both mechanical strength and durable surface protection appropriate for hydraulic and fluid systems on equipment exposed to road salts. - Heavy series (S) construction further improves durability under mechanical stress and vibration typical of maintenance vehicles. Practical considerations and limitations - Salt spray testing is an accelerated lab method; real-world longevity depends on exposure intensity, temperature cycles, mechanical wear, and maintenance (e.g., frequent salt wash-off reduces cumulative attack). - Local damage to the coating (scratches, impacts, galvanic coupling with dissimilar metals) can accelerate corrosion at those sites. Proper assembly, use of compatible materials, and protection of threads/seals minimize risk. - For critical or prolonged marine/coastal exposure, thicker coatings or additional corrosion protection (sealants, sacrificial anodes, stainless alternatives) may be considered. Bottom line The TR-S reducing tee fitting, carbon steel, zinc-nickel, with 6â10 Âµm zincânickel coating and demonstrated 720âhour salt spray resistance, is well suited for long-term exposure to deâicing salts on road maintenance equipment when installed and maintained correctly; inspect for coating damage and consider extra protection in the harshest or continuous salt environments.

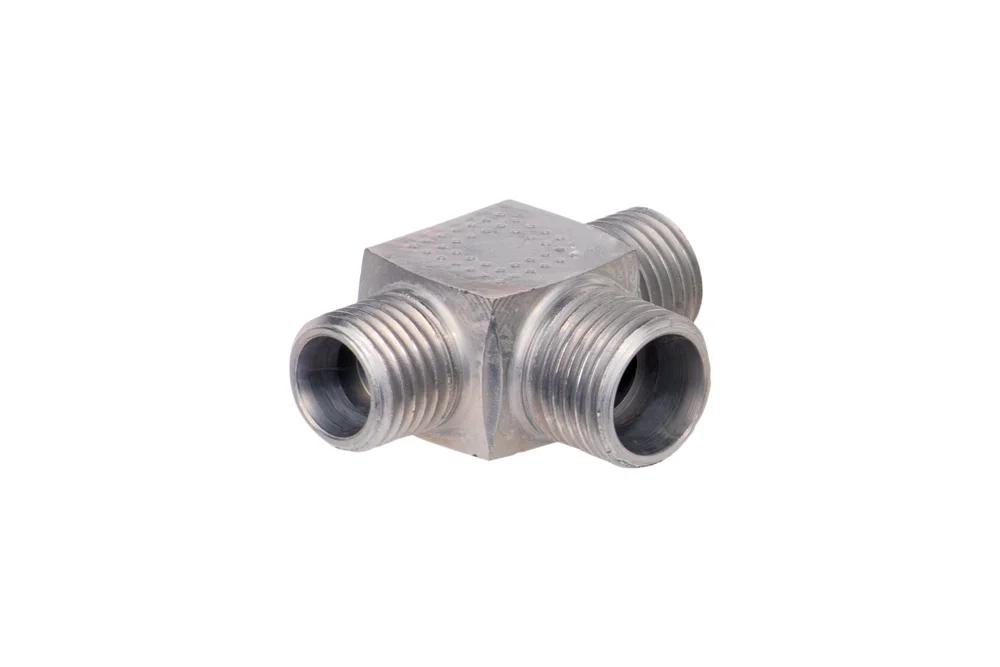

TR-S reducing tee fitting, carbon steel, zinc-nickel

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 15, 2

DIN 2353 reducing tee fitting, type TL-S: 24° DIN 2353 socket with external metric thread. Safety factor 4:1. Available as: S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-TR-10-06-10S-CN	Reduction fitting DIN 2353 TR 10/6/10S, Zn-Ni	-	800	In stock	Enquiry
HD-TR-12-08-08S-CN	Reduction fitting DIN 2353 TR 12/8/8S, Zn-Ni	-	630	In stock	Enquiry
HD-TR-12-08-12S-CN	Reduction fitting DIN 2353 TR 12/8/12S, Zn-Ni	-	630	In stock	Enquiry
HD-TR-12-10-12S-CN	Reducer fitting DIN 2353 TR 12/10/12S, Zn-Ni	-	630	In stock	Enquiry
HD-TR-12-16-12S-CN	Reduction fitting DIN 2353 TR 12/16/12S, Zn-Ni	-	630	In stock	Enquiry
HD-TR-16-06-16S-CN	Reducer fitting DIN 2353 TR 16/6/16S, Zn-Ni	-	630	In stock	Enquiry
HD-TR-16-08-16S-CN	Reduction fitting DIN 2353 TR 16/8/16S, Zn-Ni	-	630	In stock	Enquiry
HD-TR-16-10-16S-CN	Reduction fitting DIN 2353 TR 16/10/16S, Zn-Ni	-	630	In stock	Enquiry
HD-TR-16-12-16S-CN	Reduction fitting DIN 2353 TR 16/12/16S, Zn-Ni	-	630	In stock	Enquiry
HD-TR-16-20-16S-CN	Reduction fitting DIN 2353 TR 16/20/16S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-20-10-20S-CN	Reduction fitting DIN 2353 TR 20/10/20S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-20-12-20S-CN	Reduction fitting DIN 2353 TR 20/12/20S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-20-16-20S-CN	Reduction fitting DIN 2353 TR 20/16/20S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-20-25-20S-CN	Reduction fitting DIN 2353 TR 20/25/20S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-25-12-25S-CN	Reduction fitting DIN 2353 TR 25/12/25S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-25-16-25S-CN	Reduction fitting DIN 2353 TR 25/16/25S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-25-20-25S-CN	Reduction fitting DIN 2353 TR 25/20/25S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-25-30-25S-CN	Reduction fitting DIN 2353 TR 25/30/25S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-30-16-30S-CN	Reduction fitting DIN 2353 TR 30/16/30S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-30-20-30S-CN	Reduction fitting DIN 2353 TR 30/20/30S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-38-16-38S-CN	Reduction fitting DIN 2353 TR 38/16/38S, Zn-Ni	-	420	In stock	Enquiry
HD-TR-38-25-38S-CN	Reduction fitting DIN 2353 TR 38/25/38S, Zn-Ni	-	420	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 reducing tee fitting, type TL-S: 24° DIN 2353 socket with external metric thread. Safety factor 4:1. Available as: S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
