Is the TRICLOVER flange end with smooth tail, stainless steel, type FXXTC suitable for PTFE, thermoplastic, and rubber hoses in pharmaceutical and food applications?

Yes. The TRICLOVER flange end with smooth tail, stainless steel, type FXXTC is suitable for PTFE (HYPERLINE FX, HYPERLINE SB), thermoplastic, and rubber hoses used in pharmaceutical and food applications. It is specifically designed for those hose types and intended for use in pharmaceutical, biotechnology, cosmetic, food, and chemical industries handling liquid and highâviscosity media. Installation requires the appropriate clamp sleeves: AF-THU for PTFE, specific sleeves for thermoplastic hoses, and TI-L for rubber hoses. Material is AISI 316 stainless steel. Note the working pressure depends on connection size and clamp type (minimum 16 bar for 2" size; 10 bar for sizes above 2").

Can TRICLOVER flange end with smooth tail, stainless steel, type FXXTC be used with AF-THU clamp sleeves for PTFE hoses under 16 bar?

Yes - TRICLOVER flange end with smooth tail, stainless steel, type FXXTC can be used with AF-THU clamp sleeves for PTFE hoses, provided the assembly size meets the stated working-pressure limits. The product description specifies AF-THU sleeves for PTFE hoses and notes working pressure depends on connection size and clamp type: at least 16 bar for 2" size, 10 bar for sizes above 2". Therefore, for assemblies of size 2" (or sizes rated â¥16 bar) the combination is suitable for operation under 16 bar; for sizes above 2" check that the specific size and clamp rating achieve the required 16 bar before use.

Can TRICLOVER flange end with smooth tail, stainless steel, type FXXTC be used with TI-L sleeves for rubber hoses above 10 bar?

No. not for rubber hoses above 10 bar. Explanation: The TRICLOVER flange end with smooth tail, stainless steel, type FXXTC is specified for use with clamp sleeves, including TI-L sleeves for rubber hoses. However the published working-pressure guidance states that for sizes above 2" the working pressure is 10 bar. Using TI-L sleeves with rubber hoses at pressures above 10 bar would exceed the stated working-pressure limit for those connection sizes and so would not be compliant with the specification. For size 2" the minimum working pressure indicated is at least 16 bar, so only that specific size could potentially meet higher pressure requirements. but for sizes above 2" the maximum per the specification is 10 bar. Recommendation: If you need to operate rubber hoses above 10 bar for sizes >2", consult the manufacturer or engineering data for validated sleeve/clamp combinations, or choose a connection/clamp rated for the required pressure.

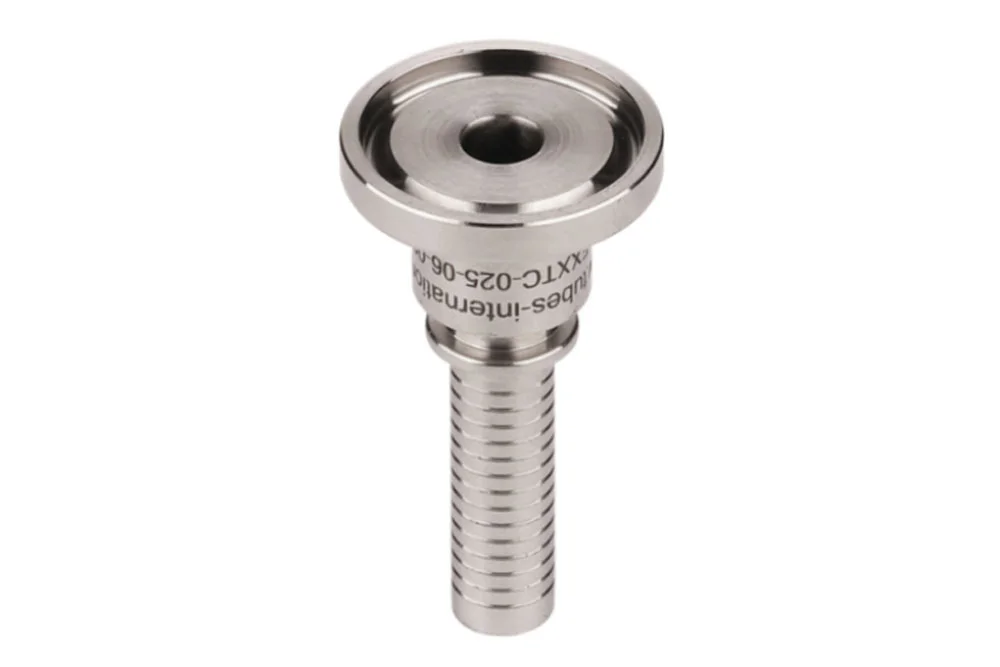

TRICLOVER flange end with smooth tail, stainless steel, type FXXTC

All products, Hygienic stainless steel couplings/

Additional information

Material	SS – stainless steel

TRICLOVER flange end with a smooth “tail” for HYPERLINE FX, HYPERLINE SB PTFE hoses, thermoplastic hoses, and rubber hoses. For use in the pharmaceutical, biotechnology, cosmetic, food, and chemical industries, for liquid and high-viscosity media. The working pressure depends on the size of the connection and the type of clamp used (at least 16 bar for size 2″, 10 bar for sizes above 2″). Installation: clamp sleeves for PTFE hoses AF-THU, sleeves for thermoplastic hoses, sleeves for rubber hoses TI-L. Material: AISI 316 stainless steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AF-FXXTC-025-04-006	End. TRICLOVER coupling 25/4 mm, hose 6 mm	6	16	In stock	Enquiry
AF-FXXTC-025-05-006	End. TRICLOVER fitting 25/4.57 mm, hose 6 mm	6	16	In stock	Enquiry
AF-FXXTC-025-06-008	End. TRICLOVER coupling 25/6 mm, hose 8 mm	8	16	In stock	Enquiry
AF-FXXTC-025-07-010	End. TRICLOVER coupling 25/7.75 mm, hose 10 mm	10	16	In stock	Enquiry
AF-FXXTC-025-07B-010	End. TRICLOVER coupling 25/7 mm, hose 10 mm	10	16	In stock	Enquiry
AF-FXXTC-025-08-010	End. TRICLOVER coupling 25/8 mm, hose 10 mm	10	16	In stock	Enquiry
AF-FXXTC-025-09-006	End. TRICLOVER fitting 25/9.4 mm, hose 6 mm	6	16	In stock	Enquiry
AF-FXXTC-025-09-010	End. TRICLOVER coupling 25/9.4 mm, hose 10 mm	10	16	In stock	Enquiry
AF-FXXTC-025-09-013	End. TRICLOVER coupling 25/9.4 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-025-10-013	End. TRICLOVER coupling 25/10 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-025-11-013	End. TRICLOVER coupling 25/10.3 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-025-12-013	End. TRICLOVER coupling 25/12 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-025-14-013	End. TRICLOVER fitting 25/14 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-025-15-010	End. TRICLOVER coupling 25/15.75 mm, hose 10 mm	10	16	In stock	Enquiry
AF-FXXTC-025-15-013	End. TRICLOVER coupling 25/15.75 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-025-15-016	End. TRICLOVER fitting 25/15.75 mm, hose 16 mm	16	16	In stock	Enquiry
AF-FXXTC-025-15-019	End. TRICLOVER fitting 25/15.75 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-025-16-019	End. TRICLOVER coupling 25/16 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-034-10-008	End. TRICLOVER coupling 34/10 mm, hose 8 mm	8	16	In stock	Enquiry
AF-FXXTC-034-10-010	End. TRICLOVER coupling 34/10 mm, hose 10 mm	10	16	In stock	Enquiry
AF-FXXTC-034-10-013	End. TRICLOVER coupling 34/10 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-034-10B-010	End. TRICLOVER coupling 34/10.3 mm, hose 10 mm	10	16	In stock	Enquiry
AF-FXXTC-034-10B-013	End. TRICLOVER coupling 34/10.3 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-034-11-013	End. TRICLOVER coupling 34/10.7 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-034-14-013	End. TRICLOVER coupling 34/14 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-034-14-016	End. TRICLOVER coupling 34/14 mm, hose 16 mm	16	16	In stock	Enquiry
AF-FXXTC-034-15-013	End. TRICLOVER coupling 34/15.2 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-034-15-016	End. TRICLOVER coupling 34/15.2 mm, hose 16 mm	16	16	In stock	Enquiry
AF-FXXTC-034-15-019	End. TRICLOVER coupling 34/15.2 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-034-16-016	End. TRICLOVER coupling 34/16 mm, hose 16 mm	16	16	In stock	Enquiry
AF-FXXTC-034-16-019	End. TRICLOVER coupling 34/16 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-034-18-016	End. TRICLOVER coupling 34/18.1 mm, hose 16 mm	16	16	In stock	Enquiry
AF-FXXTC-034-18-019	End. TRICLOVER coupling 34/18.1 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-034-19-016	End. TRICLOVER coupling 34/19.3 mm, hose 16 mm	16	16	In stock	Enquiry
AF-FXXTC-034-19-019	End. TRICLOVER coupling 34/19.3 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-034-20-016	End. TRICLOVER coupling 34/20 mm, hose 16 mm	16	16	In stock	Enquiry
AF-FXXTC-034-20-019	End. TRICLOVER coupling 34/20 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-09-013	End. TRICLOVER coupling 50.5/9.4 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-050-15-013	End. TRICLOVER coupling 50.5/15.75 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-050-15-019	End. TRICLOVER coupling 50.5/15.75 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-18-019	End. TRICLOVER coupling 50.5/18.1 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-22-013	End. TRICLOVER coupling 50.5/22.1 mm, hose 13 mm	12	16	In stock	Enquiry
AF-FXXTC-050-22-016	End. TRICLOVER coupling 50.5/22.1 mm, hose 16 mm	16	16	In stock	Enquiry
AF-FXXTC-050-22-019	End. TRICLOVER coupling 50.5/22.1 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-22-025	End. TRICLOVER coupling 50.5/22.1 mm, hose 25 mm	25	16	In stock	Enquiry
AF-FXXTC-050-23-019	End. TRICLOVER coupling 50.5/22.6 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-23-025	End. TRICLOVER coupling 50.5/22.6 mm, hose 25 mm	25	16	In stock	Enquiry
AF-FXXTC-050-24-019	End. TRICLOVER coupling 50.5/23.7 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-24-025	End. TRICLOVER coupling 50.5/23.7 mm, hose 25 mm	25	16	In stock	Enquiry
AF-FXXTC-050-26-016	End. TRICLOVER coupling 50.5/26 mm, hose 16 mm	16	16	In stock	Enquiry
AF-FXXTC-050-26-019	End. TRICLOVER coupling 50.5/26 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-26-025	End. TRICLOVER coupling 50.5/26 mm, hose 25 mm	25	16	In stock	Enquiry
AF-FXXTC-050-30-019	End. TRICLOVER coupling 50.5/29.7 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-30-025	End. TRICLOVER coupling 50.5/29.7 mm, hose 25 mm	25	16	In stock	Enquiry
AF-FXXTC-050-31-025	End. TRICLOVER coupling 50.5/31.3 mm, hose 25 mm	25	16	In stock	Enquiry
AF-FXXTC-050-32-019	End. TRICLOVER coupling 50.5/32 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-32-025	End. TRICLOVER coupling 50.5/32 mm, hose 25 mm	25	16	In stock	Enquiry
AF-FXXTC-050-32-032	End. TRICLOVER coupling 50.5/32 mm, hose 32 mm	32	16	In stock	Enquiry
AF-FXXTC-050-35-019	End. TRICLOVER coupling 50.5/34.8 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-35-025	End. TRICLOVER coupling 50.5/34.8 mm, hose 25 mm	25	16	In stock	Enquiry
AF-FXXTC-050-38-010	End. TRICLOVER coupling 50.5/38 mm, hose 10 mm	10	16	In stock	Enquiry
AF-FXXTC-050-38-019	End. TRICLOVER coupling 50.5/38 mm, hose 19 mm	20	16	In stock	Enquiry
AF-FXXTC-050-38-025	End. TRICLOVER coupling 50.5/38 mm, hose 25 mm	25	16	In stock	Enquiry
AF-FXXTC-064-48-025	End. TRICLOVER coupling 64/38,47,5 mm, hose 25 mm	25	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

TRICLOVER flange end with a smooth “tail” for HYPERLINE FX, HYPERLINE SB PTFE hoses, thermoplastic hoses, and rubber hoses. For use in the pharmaceutical, biotechnology, cosmetic, food, and chemical industries, for liquid and high-viscosity media. The working pressure depends on the size of the connection and the type of clamp used (at least 16 bar for size 2″, 10 bar for sizes above 2″). Installation: clamp sleeves for PTFE hoses AF-THU, sleeves for thermoplastic hoses, sleeves for rubber hoses TI-L. Material: AISI 316 stainless steel.
