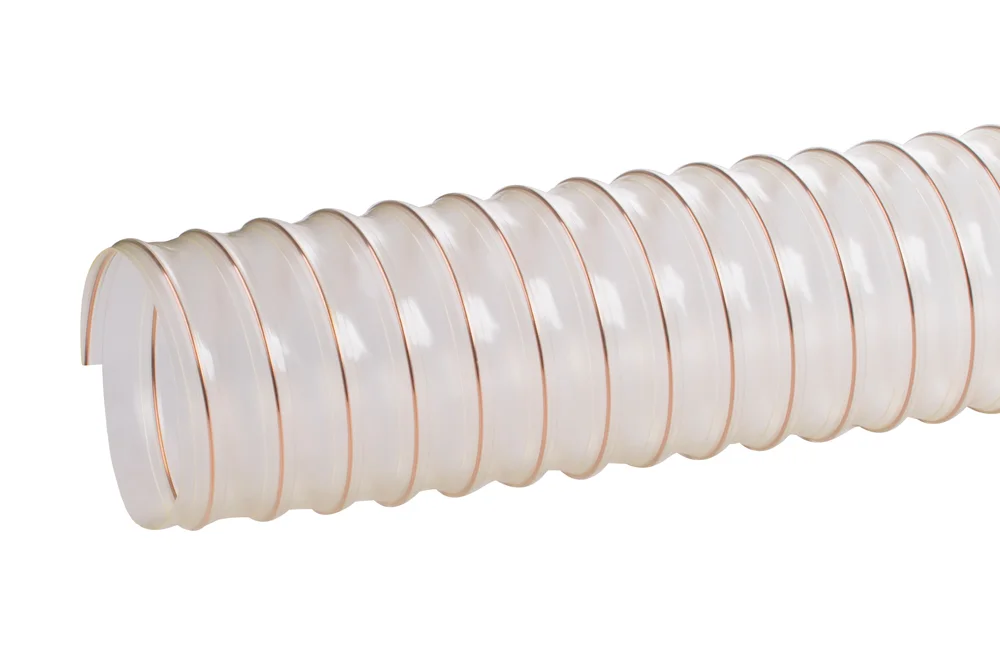

Extra lightweight, eco-friendly extraction hose ECO 0.4

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10

Reinforcement

steel spiral

Very lightweight and flexible hose designed for the transport of air, dust, powders, fine wood shavings and chips, very light bulk materials, etc. Suitable for all types of industry, particularly commonly used for dust extraction and the removal of fine solid particles in the woodworking, furniture, ceramics, and plastics industries. Highly flexible and very axially compressible, also elastic at low temperatures. Good abrasion resistance, also resistant to microbes and hydrolysis. Non-toxic, free from halogen compounds and plasticizers. Resistant to oils and gasoline. The hose is marked with an arrow indicating the correct direction of medium flow. Wall thickness of the hose is measured between the spiral. Installation on couplings with bridge clamps (right-handed). Other diameters may be available upon special request. The hose is available in the following versions: ECO – standard version, ECO SE – version made of flame-retardant material (without fire classification), ECO AS – permanently antistatic version (ISO 8031: R <109 Ω, TRGS 727 (6.4.2.4): R <2.5 x 108 Ωm, directive 2014/34/EU (ATEX): can be used in specific explosion hazard zones after risk analysis), ECO SE AS – antistatic and flame-retardant version (available on special request). The ECO hose is produced in a manufacturing process compliant with sustainable development policies, using raw materials from the recycling of clean production waste, renewable energy, closed water cycles, and other innovations. Hose material: transparent polyester-polyurethane. Reinforcement: steel wire spiral. Wall thickness measured between the spiral: 0.4 mm. Operating temperature: from -40°C to +100°C (temporarily up to +125°C).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SC-ECO-025-04ECO hose 0.4 25 mm250.62In stock
Enquiry
SC-ECO-025-04SEECO SE hose 0.4 25 mm250.62In stock
Enquiry
SC-ECO-030-04ECO hose 0.4 30 mm300.6In stock
Enquiry
SC-ECO-030-04SEECO SE Hose 0.4 30 mm300.6In stock
Enquiry
SC-ECO-035-04ECO hose 0.4 35 mm350.5In stock
Enquiry
SC-ECO-035-04SEECO SE hose 0.4 35 mm350.5In stock
Enquiry
SC-ECO-040-04ECO hose 0.4 40 mm400.48In stock
Enquiry
SC-ECO-040-04SEECO SE Hose 0.4 40 mm400.48In stock
Enquiry
SC-ECO-050-04ECO hose 0.4 50 mm500.38In stock
Enquiry
SC-ECO-050-04SEECO SE hose 0.4 50 mm500.38In stock
Enquiry
SC-ECO-060-04ECO hose 0.4 60 mm600.38In stock
Enquiry
SC-ECO-060-04SEECO SE Hose 0.4 60 mm600.38In stock
Enquiry
SC-ECO-065-04ECO hose 0.4 65 mm650.35In stock
Enquiry
SC-ECO-065-04SEECO SE hose 0.4 65 mm650.35In stock
Enquiry
SC-ECO-070-04ECO hose 0.4 70 mm700.33In stock
Enquiry
SC-ECO-070-04SEECO SE Hose 0.4 70 mm700.33In stock
Enquiry
SC-ECO-075-04ECO hose 0.4 75 mm750.28In stock
Enquiry
SC-ECO-075-04SEECO SE Hose 0.4 75 mm750.28In stock
Enquiry
SC-ECO-080-04ECO hose 0.4 80 mm800.27In stock
Enquiry
SC-ECO-080-04SEECO SE Hose 0.4 80 mm800.27In stock
Enquiry
SC-ECO-090-04ECO hose 0.4 90 mm900.23In stock
Enquiry
SC-ECO-090-04SEECO SE Hose 0.4 90 mm900.23In stock
Enquiry
SC-ECO-100-04ECO hose 0.4 100 mm1000.19In stock
Enquiry
SC-ECO-100-04SEECO SE Hose 0.4 100 mm1000.19In stock
Enquiry
SC-ECO-102-04ECO hose 0.4 102 mm1000.19In stock
Enquiry
SC-ECO-110-04ECO hose 0.4 110 mm1100.19In stock
Enquiry
SC-ECO-110-04SEECO SE hose 0.4 110 mm1100.19In stock
Enquiry
SC-ECO-120-04ECO hose 0.4 120 mm1200.19In stock
Enquiry
SC-ECO-120-04SEECO SE hose 0.4 120 mm1200.19In stock
Enquiry
SC-ECO-125-04ECO hose 0.4 125 mm1250.19In stock
Enquiry
SC-ECO-125-04SEECO SE hose 0.4 125 mm1250.19In stock
Enquiry
SC-ECO-130-04ECO hose 0.4 130 mm1300.16In stock
Enquiry
SC-ECO-130-04SEECO SE Hose 0.4 130 mm1300.16In stock
Enquiry
SC-ECO-140-04ECO hose 0.4 140 mm1400.14In stock
Enquiry
SC-ECO-140-04SEECO SE hose 0.4 140 mm1400.14In stock
Enquiry
SC-ECO-150-04ECO hose 0.4 150 mm1500.09In stock
Enquiry
SC-ECO-150-04SEECO SE hose 0.4 150 mm1500.09In stock
Enquiry
SC-ECO-160-04Hose ECO 0.4 160 mm1600.09In stock
Enquiry
SC-ECO-160-04SEECO SE hose 0.4 160 mm1600.09In stock
Enquiry
SC-ECO-175-04ECO hose 0.4 175 mm1800.08In stock
Enquiry
SC-ECO-175-04SEECO SE hose 0.4 175 mm1800.08In stock
Enquiry
SC-ECO-180-04ECO hose 0.4 180 mm1800.08In stock
Enquiry
SC-ECO-180-04SEECO SE hose 0.4 180 mm1800.08In stock
Enquiry
SC-ECO-200-04ECO hose 0.4 200 mm2000.07In stock
Enquiry
SC-ECO-200-04SEECO SE hose 0.4 200 mm2000.07In stock
Enquiry
SC-ECO-203-04ECO hose 0.4 203 mm2000.07In stock
Enquiry
SC-ECO-225-04ECO hose 0.4 225 mm2250.06In stock
Enquiry
SC-ECO-225-04SEECO SE hose 0.4 225 mm2250.06In stock
Enquiry
SC-ECO-250-04ECO hose 0.4 250 mm2500.06In stock
Enquiry
SC-ECO-250-04SEECO SE Hose 0.4 250 mm2500.06In stock
Enquiry
SC-ECO-275-04ECO hose 0.4 275 mm2750.04In stock
Enquiry
SC-ECO-300-04ECO hose 0.4 300 mm3000.03In stock
Enquiry
SC-ECO-300-04SEECO SE hose 0.4 300 mm3000.03In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Very lightweight and flexible hose designed for the transport of air, dust, powders, fine wood shavings and chips, very light bulk materials, etc. Suitable for all types of industry, particularly commonly used for dust extraction and the removal of fine solid particles in the woodworking, furniture, ceramics, and plastics industries. Highly flexible and very axially compressible, also elastic at low temperatures. Good abrasion resistance, also resistant to microbes and hydrolysis. Non-toxic, free from halogen compounds and plasticizers. Resistant to oils and gasoline. The hose is marked with an arrow indicating the correct direction of medium flow. Wall thickness of the hose is measured between the spiral. Installation on couplings with bridge clamps (right-handed). Other diameters may be available upon special request. The hose is available in the following versions: ECO – standard version, ECO SE – version made of flame-retardant material (without fire classification), ECO AS – permanently antistatic version (ISO 8031: R <109 Ω, TRGS 727 (6.4.2.4): R <2.5 x 108 Ωm, directive 2014/34/EU (ATEX): can be used in specific explosion hazard zones after risk analysis), ECO SE AS – antistatic and flame-retardant version (available on special request). The ECO hose is produced in a manufacturing process compliant with sustainable development policies, using raw materials from the recycling of clean production waste, renewable energy, closed water cycles, and other innovations. Hose material: transparent polyester-polyurethane. Reinforcement: steel wire spiral. Wall thickness measured between the spiral: 0.4 mm. Operating temperature: from -40°C to +100°C (temporarily up to +125°C).

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10

Reinforcement

steel spiral
