Is the T-piece "Y" with BSP female thread, cast iron, type 220/220 suitable for 300Â°C operation at 20 bar?

Yes. The T-piece "Y" with BSP female thread, cast iron, type 220/220 is specified for operation up to +300Â°C with a working pressure rating of 20 bar at that temperature. Given the product description . ductile iron material, operating temperature up to +300Â°C, working pressure 25 bar (up to +120Â°C) and 20 bar (up to +300Â°C) . it is suitable for use at 300Â°C and 20 bar, provided installation and service conditions follow manufacturer guidelines and applicable standards (e.g., correct threading, compatible media, proper jointing, and any required de-rating for transient conditions).

Can the T-piece "Y" with BSP female thread, cast iron, type 220/220 handle 25 bar at temperatures up to 120Â°C and 20 bar up to 300Â°C?

Yes. The T-piece "Y" with BSP female thread, cast iron, type 220/220 is specified for an operating temperature up to +300Â°C and a working pressure of 25 bar up to +120Â°C, and 20 bar up to +300Â°C, so it can handle 25 bar at temperatures up to 120Â°C and 20 bar at temperatures up to 300Â°C.

Does the T-piece "Y" with BSP female thread, cast iron, type 220/220 comply with pressure ratings at varying temperatures?

Yes. The T-piece "Y" with BSP female thread, cast iron, type 220/220 meets the specified pressure ratings but only within the stated temperature ranges. Specifically: - Up to +120Â°C the working pressure rating is 25 bar. - From above +120Â°C up to +300Â°C the working pressure rating is reduced to 20 bar. These limits reflect the material and design characteristics of the Y-branch with internal BSP thread for use in piping connections of industrial installations, made of ductile iron and rated for operation up to +300Â°C. Do not exceed the corresponding pressure for the actual operating temperature to ensure safe use.

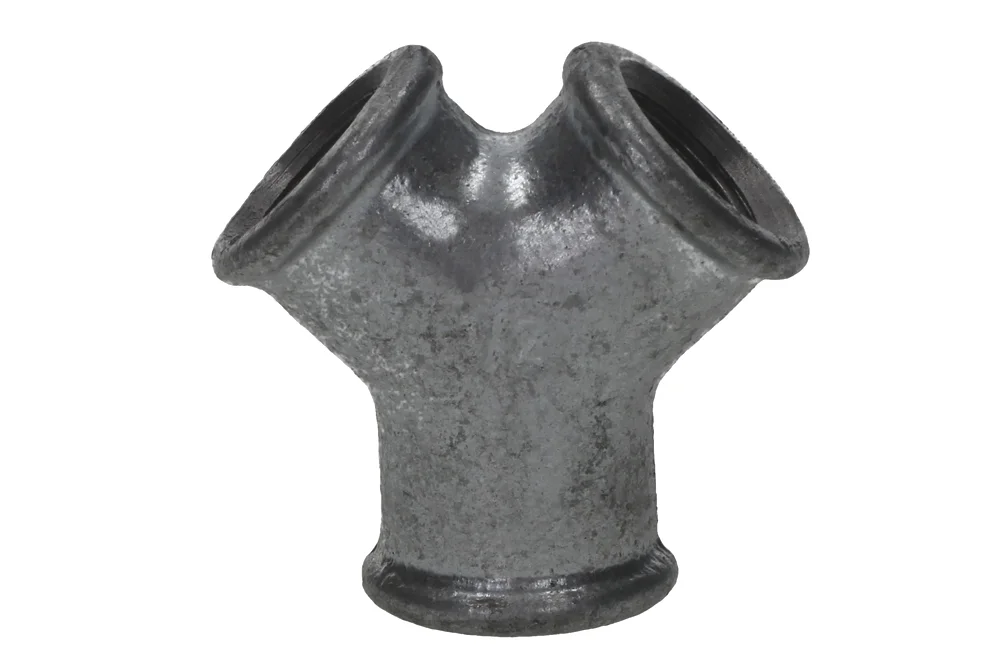

T-piece “Y” with BSP female thread, cast iron, type 220/220

Additional information

Material	CS – steel (cast iron)

Y-branch with internal BSP thread for use in piping connections of industrial installations. Material: ductile iron. Operating temperature: up to +300°C. Working pressure: 25 bar (up to +120°C), 20 bar (up to +300°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EE-220220-08	Y-branch with G 1/2" BSP, galvanized cast iron.	-	25	In stock	Enquiry
EE-220220-12	Y-branch fitting with BSP thread 3/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-220220-16	Y-branch with G1" BSP, galvanized cast iron.	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Y-branch with internal BSP thread for use in piping connections of industrial installations. Material: ductile iron. Operating temperature: up to +300°C. Working pressure: 25 bar (up to +120°C), 20 bar (up to +300°C).
