Can the 45Â° NON SKIVE DKJ end, carbon steel, type NJW310, be crimped onto 4SP/4SH/R13/R15 hoses with TI-N sleeve without cutting the hose rubber?

Yes. The 45Â° NON SKIVE DKJ end, carbon steel, type NJW310, is designed to be crimped onto 4SP/4SH/R13/R15 hoses using a TI-N crimping sleeve without cutting the hose rubber. Its NON SKIVE design and internal UNF thread with a 74Â° cone seal (DKJ) allow installation over the hose cover so the hose inner layers remain intact. Material (carbon steel, galvanized) and the TI-N sleeve are specified for compatible crimping, ensuring a secure, sealed connection when installed per manufacturer crimping specifications and tooling parameters.

Does the 45Â° NON SKIVE DKJ end, carbon steel, type NJW310, require hose end prep before crimping onto 4SP/4SH/R13/R15 with TI-N sleeve?

No. The 45Â° NON SKIVE DKJ end, carbon steel, type NJW310, does not require hose end prep before crimping onto 4SP/4SH/R13/R15 with the TI-N sleeve. It is designed for non-skive installation - installation without cutting or removing the hose rubber - and is intended specifically for crimping with the TI-N crimping sleeve onto those hose types. Use the correct TI-N sleeve and follow the crimping specifications for the hose and sleeve to ensure a proper assembly.

Is the 45Â° NON SKIVE DKJ end, carbon steel, type NJW310, compatible with TI-N sleeve crimping on 4SP/4SH/R13/R15 hoses without adhesives?

Yes. the 45Â° NON SKIVE DKJ end, carbon steel, type NJW310 Format is compatible with TI-N sleeve crimping on 4SP/4SH/R13/R15 hoses without adhesives. Why: - The product description explicitly states it is intended for crimping in hoses type 4SP, 4SH, R13, and R15 using TI-N crimping sleeve. - It is a NON SKIVE design, so installation is performed without cutting or removing the hose rubber (matches your âwithout adhesivesâ and âwithout cutting the hose rubberâ requirement). - The internal UNF thread and 74Â° cone sealing (DKJ) are standard for this end type and compatible with TI-N sleeve crimp crimps on the listed hose types. - Material (carbon steel, galvanized) is suitable for conventional crimped hydraulic fittings. Notes/precautions: - Ensure correct TI-N sleeve dimension and crimping force/profile for the specific hose and fitting combination per manufacturer crimp specifications. - Verify crimping equipment is calibrated and tooling matches TI-N sleeve and NJW310 geometry to achieve proper swage and seal. - Follow hose and fitting manufacturer installation instructions and any applicable standards for pressure ratings and testing after crimping.

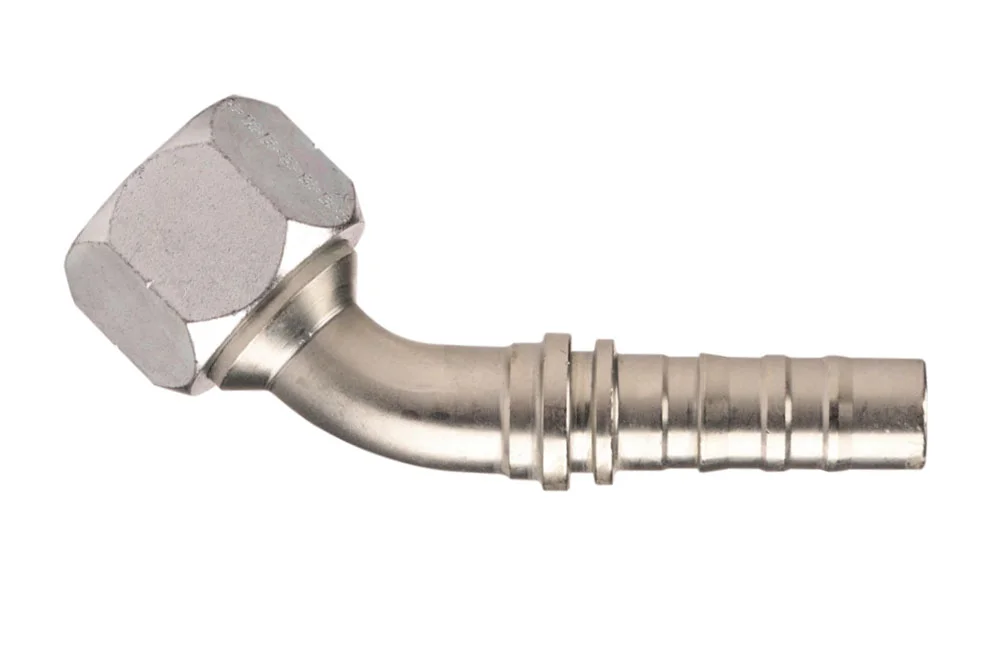

45° NON SKIVE DKJ end, carbon steel, type NJW310

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

45° NON SKIVE end with internal UNF thread, with sealing on a 74° cone (DKJ), intended for crimping in hoses type 4SP, 4SH, R13, and R15 using TI-N crimping sleeve… Installation: without cutting the hose rubber. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NJW310-17-12	End. JIC 45° NON SKIVE G1 1/16", hose 3/4"	20	-	In stock	Enquiry
TI-NJW310-21-12	End. JIC 45° NON SKIVE G1.5/16", hose 3/4"	20	-	In stock	Enquiry
TI-NJW310-21-16	End. JIC 45° NON SKIVE G1.5/16", hose 1"	25	-	In stock	Enquiry
TI-NJW310-26-16	End. JIC 45° NON SKIVE G1.5/8", hose 1"	25	-	In stock	Enquiry
TI-NJW310-26-20	End. JIC 45° NON SKIVE G1.5/8", hose 1.1/4"	32	-	In stock	Enquiry
TI-NJW310-30-24	End. JIC 45° NON SKIVE G1.7/8", hose 1.1/2"	38	-	In stock	Enquiry
TI-NJW310-40-32	End. JIC 45° NON SKIVE G1/2", hose 2"	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

45° NON SKIVE end with internal UNF thread, with sealing on a 74° cone (DKJ), intended for crimping in hoses type 4SP, 4SH, R13, and R15 using TI-N crimping sleeve… Installation: without cutting the hose rubber. Material: carbon steel, galvanized.
