Is the Measuring connection 5/8" BSF with metal cap and male thread compatible with hydraulic systems using BSP fittings and 420 bar working pressure?

Yes . the Measuring connection 5/8â BSF with metal cap and male thread Format is compatible with hydraulic systems using BSP fittings and 420 bar working pressure. The product description specifies an external BSP thread (male), a ball valve, carbon steel construction (galvanized), NBR sealing, and a rated working pressure of 420 bar, with operating temperature from -30Â°C to +120Â°C. These characteristics indicate it is designed for direct connection into hydraulic installations using BSP-compatible female ports and for service at the stated pressure and temperature ranges. Ensure thread form and size match the systemâs BSP female port and that NBR sealing and the specified temperature range suit your fluid and operating conditions.

Does the Measuring connection 5/8" BSF with metal cap and male thread include an integrated ball valve for isolation during maintenance?

Yes. The Measuring connection 5/8â BSF with metal cap and male thread includes an integrated ball valve for isolation during maintenance. The unit is carbon steel (galvanized), sealed with NBR, rated to 420 bar, and suitable for â30Â°C to +120Â°C.

Can the Measuring connection 5/8" BSF with metal cap and male thread be used between -30Â°C and +120Â°C?

Yes. The Measuring connection 5/8â BSF with metal cap and male thread can be used between -30Â°C and +120Â°C. The product specification explicitly lists the operating temperature range as from -30Â°C to +120Â°C. Note the sealing material is NBR (nitrile rubber), which is compatible with that temperature range and typical hydraulic fluids; ensure fluid compatibility and system conditions (pressure up to 420 bar) are met for safe operation.

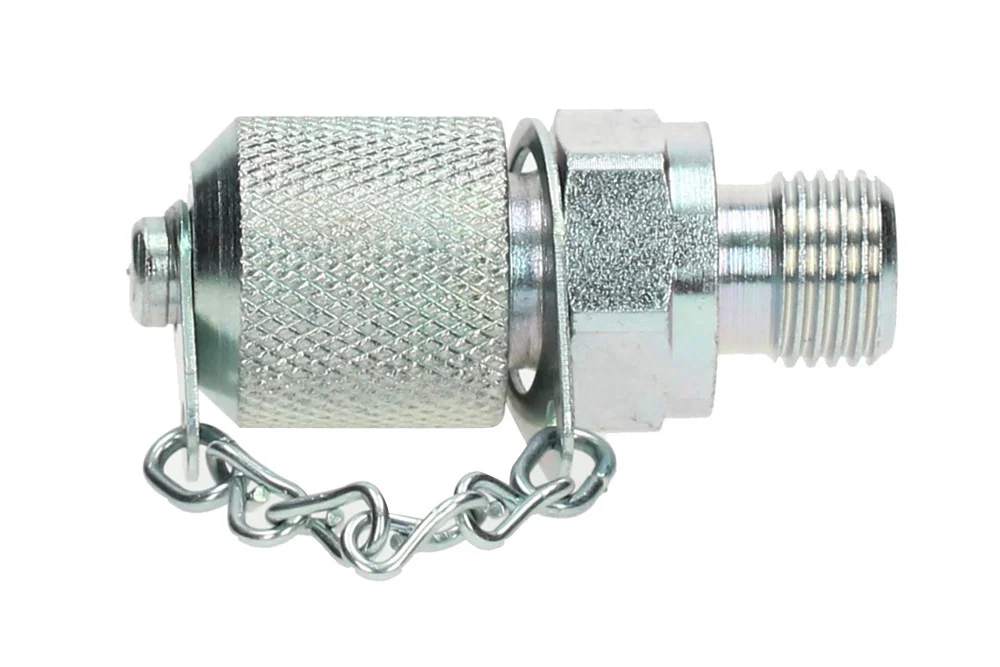

Measuring connection 5/8’ BSF with metal cap and male thread

All products, Measurement couplings/

Additional information

Material	CS – steel (cast iron)

Measurement connection 5/8″ BSF, British type HSP, JCB standard with metal cap and external BSP thread, for connection to hydraulic installation. The connection is equipped with a ball valve. Material: carbon steel, galvanized. Sealing: NBR. Working pressure: 420 bar. Operating temperature: from -30°C to +120°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
PS-616-01-202-21	5/8" BSF measuring connector, GZ 1/8" BSP fitting, type E, metal plug	-	420	In stock	0 zł		Enquiry
PS-616-01-204-21	5/8" BSF measuring connector, GZ 1/4 BSP fitting, type E, metal cap	-	420	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Measurement connection 5/8″ BSF, British type HSP, JCB standard with metal cap and external BSP thread, for connection to hydraulic installation. The connection is equipped with a ball valve. Material: carbon steel, galvanized. Sealing: NBR. Working pressure: 420 bar. Operating temperature: from -30°C to +120°C.
