Is the Adaptor - Hydraulic reduction with BSP female and male threads compatible with hydraulic fluids at operating temperatures from -30Â°C to +120Â°C?

Yes. The Adaptor - Hydraulic reduction with BSP female and male threads is compatible with hydraulic fluids at operating temperatures from -30Â°C to +120Â°C. Its NBR (nitrile rubber) seal and steel body with zinc-nickel coating are specified for an operating temperature range of -30Â°C to +120Â°C, and the adaptorâs working pressure rating (400â630 bar depending on size) supports typical hydraulic system conditions. Ensure your specific hydraulic fluid is NBR-compatible (most mineral oils are; some synthetic fluids or aggressive additives may not be) and verify pressure/temperature conditions for your exact application.

Can Adaptor - Hydraulic reduction with BSP female and male threads sustain pressures up to 630 bar across all sizes?

Adaptor - Hydraulic reduction with BSP female and male threads Format: Working pressure depends on size; it can sustain pressures from 400 bar up to 630 bar, but not all sizes reach 630 bar. Maximum 630 bar is achievable only for certain sizes within the range. Selection must be based on the specific size to ensure the required working pressure.

Does Adaptor - Hydraulic reduction with BSP female and male threads require specific installation torque to ensure the rubber shaped E-seal functions correctly?

Adaptor - Hydraulic reduction with BSP female and male threads: Yes. the rubber shaped E-seal (NBR) requires correct installation torque to function reliably. Proper torque ensures the seal is compressed uniformly between the mating faces and the thread engagement is sufficient to prevent leakage without damaging the seal or the threads. Recommended guidance: - Follow the manufacturerâs specified torque values for the particular size of the adaptor whenever available. Torque depends on thread size, nominal pressure rating (400â630 bar), and material/coating. - If no specific value is provided, use standard torque charts for BSP threaded steel hydraulic fittings with an NBR face seal as a starting point, then verify assembly with a pressure test. - Apply torque gradually and evenly; avoid over-tightening, which can extrude or deform the NBR E-seal, and under-tightening, which can leave gaps and cause leakage under high pressure. - Inspect the seal and sealing surfaces before assembly for damage, contamination or burrs; ensure proper alignment during tightening. - After initial assembly, perform a hydrostatic or leak test at an appropriate pressure (typically at or above working pressure) to confirm integrity. Re-check torque after the first pressure cycle if recommended. In summary, correct installation torque and careful assembly are necessary for the Adaptor - Hydraulic reduction with BSP female and male threads to ensure the NBR E-seal performs correctly under the specified pressures and temperatures.

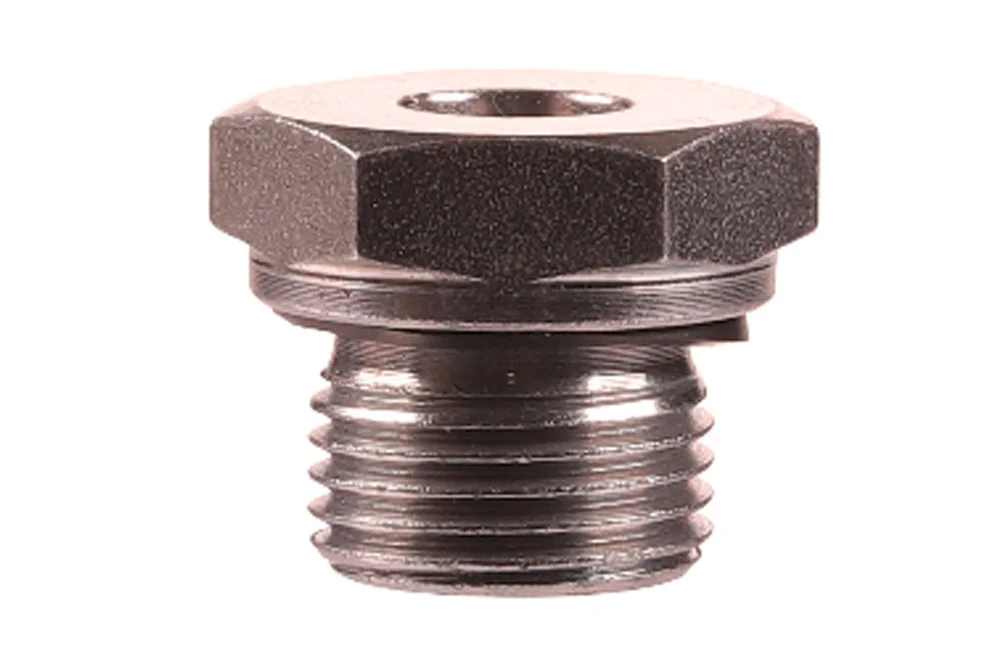

Adapter – hydraulic reducer with BSP female and male threads

All products, Measurement couplings/

Additional information

Material	CS – steel (cast iron)

High-pressure hydraulic adapter; reduces a metric or BSP female thread (thread sealing) to a BSP male thread (type E sealing – shaped rubber gasket). Material: steel with zinc-nickel coating. Sealing: NBR. Working pressure: from 400 bar to 630 bar – depending on size. Operating temperature: from -30°C to +120°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
PS-630-01-204-20	Reducing adapter M10x1 female / 1/4" BSP male type E	-	630	In stock	Enquiry
PS-630-01-206-20	Reducing adapter M10x1 female / 3/8" BSP male type E	-	630	In stock	Enquiry
PS-630-01-208-20	Reducing adapter M10x1 female / 1/2" BSP male type E	-	400	In stock	Enquiry
PS-630-01-212-20	Reducing adapter M10x1 female / 3/4" maleBSP type E	-	400	In stock	Enquiry
PS-630-01-216-20	Reducing adapter 3/8" BSP female / 1" BSP male type E	-	400	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure hydraulic adapter; reduces a metric or BSP female thread (thread sealing) to a BSP male thread (type E sealing – shaped rubber gasket). Material: steel with zinc-nickel coating. Sealing: NBR. Working pressure: from 400 bar to 630 bar – depending on size. Operating temperature: from -30°C to +120°C.
