What is the maximum working pressure for the Adaptor 90Â° with GW BSP, stainless steel, type A115A?

The maximum working pressure for the Adaptor 90Â° with GW BSP, stainless steel, type A115A depends primarily on the material (AISI 316) and the threaded BSP connection with seal on the thread. For A115A in typical high-pressure applications with internal BSP threads and AISI 316 construction, maximum working pressures commonly range up to 600â1000 bar depending on thread size, wall thickness and manufacturerâs specific rating. Without the manufacturerâs exact pressure rating for the specific thread size and dimensions, a safe assumption cannot be given. To obtain the precise maximum working pressure for Adaptor 90Â° with GW BSP, stainless steel, type A115A, consult the product datasheet or the manufacturerâs technical specifications.

Can Adaptor 90Â° with GW BSP, stainless steel, type A115A be used with PTFE tape or must a different thread sealant be used?

Adaptor 90Â° with GW BSP, stainless steel, type A115A has internal BSP threads that are specified as "seal on the thread." That typically means the metal-to-metal thread sealing is intended (often via a BSP parallel thread with an O-ring or taper seat), so adding PTFE tape is not recommended because it can prevent proper metal sealing, contaminate the system or interfere with torquing. Use the thread sealing method specified by the manufacturer-if it relies on a metal seal or built-in Oâring, do not use PTFE tape; if a liquid sealant is required, choose a compatible, PTFEâfree thread sealant rated for stainless steel, high pressure and your media (e.g., a suitable anaerobic or pipe thread sealant). When in doubt, confirm with the manufacturer's installation instructions.

Does Adaptor 90Â° with GW BSP, stainless steel, type A115A require specific torque values for installation?

Adaptor 90Â° with GW BSP, stainless steel, type A115A does not have a universally fixed torque value specified in the provided description. The fitting is AISI 316 high-pressure adaptor with internal BSP thread that seals on the thread; torque requirements depend on factors such as thread size, sealant type (PTFE tape, liquid sealant, or metal-to-metal fit), mating material, and application pressure. General guidance: - Follow manufacturer or component supplier torque recommendations when available. - If no manufacturer torque is given, use standard torque ranges for BSP threaded stainless steel fittings of the specific nominal size (consult engineering tables or ISO/BS standards for BSP torque values). - Apply manufacturer-recommended sealant type and proper thread preparation; over-torquing can damage threads or distort sealing surfaces, under-torquing can cause leaks. - For critical or high-pressure systems perform torque-controlled assembly and, if possible, a pressure test after installation. - When in doubt, consult a qualified engineer or the adaptor supplier with exact thread size and application conditions to obtain precise torque values. In summary: Adaptor 90Â° with GW BSP, stainless steel, type A115A requires appropriate torque based on thread size and sealing method, but no specific torque value is provided in the descriptionâobtain manufacturer guidance or use standard BSP torque tables and proper installation practice.

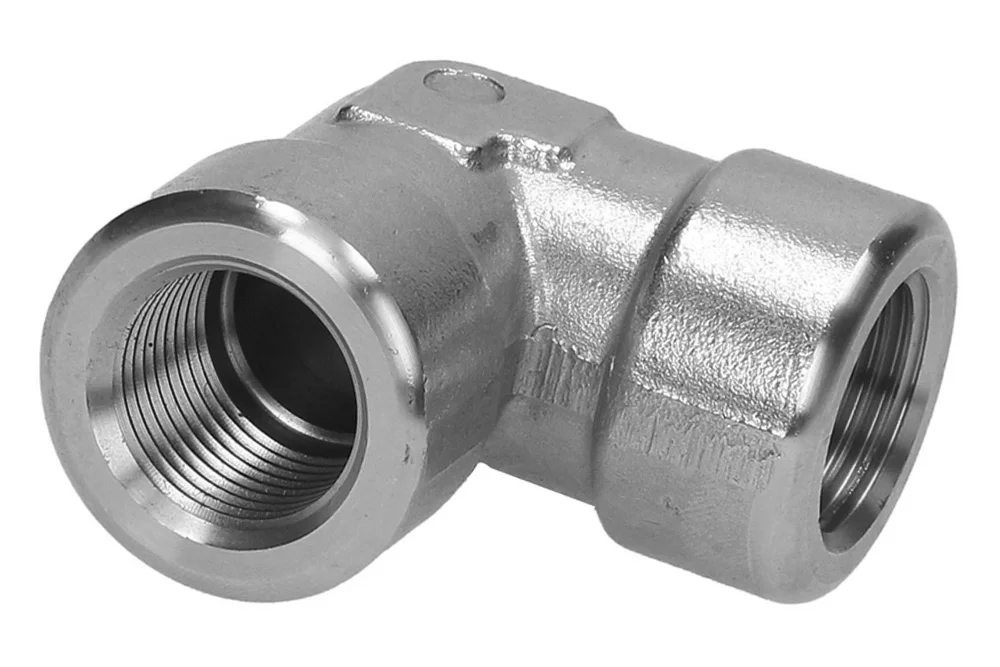

Adaptor 90° with GW BSP, stainless steel, type A115A

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

90° high-pressure adaptor type A115A with internal BSP thread (seal on the thread) and with internal BSP thread (seal on the thread). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A115A-04-SS	90° Adapter GW BSP 1/4" / GW BSP 1/4", AISI 316	-	350	In stock	Enquiry
TI-A115A-06-SS	90° Adapter GW BSP 3/8" / GW BSP 3/8", AISI 316	-	250	In stock	Enquiry
TI-A115A-08-SS	90° Adapter GW BSP 1/2" / GW BSP 1/2", AISI 316	-	225	In stock	Enquiry
TI-A115A-12-SS	90° Adapter GW BSP 3/4" / GW BSP 3/4", AISI 316	-	200	In stock	Enquiry
TI-A115A-16-SS	90° Adapter GW BSP 1" / GW BSP 1", AISI 316	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° high-pressure adaptor type A115A with internal BSP thread (seal on the thread) and with internal BSP thread (seal on the thread). Material: AISI 316 steel.
