Is the 90Â° angle plug connector with BSP male thread, type PLM compatible with standard calibrated metric OD flexible pneumatic hoses?

Yes. The 90Â° angle plug connector with BSP male thread, type PLM Format is designed specifically as an economic solution for connecting flexible pneumatic hoses with a calibrated metric outer diameter. Its description states compatibility with calibrated metric OD hoses, provides easy and quick use, and its material and specifications (plastic body, NBR sealing, working pressure up to 10 bar, vacuum 0.99 bar, operating temperature 0â60Â°C) make it suitable for standard pneumatic applications using metric OD flexible hoses. Ensure the hose OD and BSP thread size match the specific PLM variant before installation.

Can the 90Â° angle plug connector with BSP male thread, type PLM be used in applications requiring up to 10 bar working pressure and 0.99 bar vacuum?

Yes. The 90Â° angle plug connector with BSP male thread, type PLM can be used for applications requiring up to 10 bar working pressure and 0.99 bar vacuum. Its specifications list a working pressure of 10 bar and a vacuum rating of 0.99 bar, with NBR sealing and operating temperature range 0Â°C to +60Â°C. Ensure compatibility with the hose outer diameter and application temperature; avoid pressures, vacuums or temperatures beyond these limits.

Can the 90Â° angle plug connector with BSP male thread, type PLM be assembled and disassembled repeatedly without damaging the plastic material?

Yes. the 90Â° angle plug connector with BSP male thread, type PLM can be assembled and disassembled repeatedly without damaging the plastic material, provided normal use within its specified limits. The connector is an economic plastic solution designed for quick and easy connection of flexible pneumatic hoses (calibrated metric OD). Its rated working pressure is 10 bar, vacuum rating 0.99 bar, and operating temperature range 0Â°C to +60Â°C. Sealing is NBR, which is compatible with typical pneumatic applications. To avoid damage and ensure long life: - Operate within the specified pressure (â¤10 bar) and temperature range (0â60Â°C). - Use appropriate hose sizes (calibrated metric OD) to prevent excessive mechanical stress. - Avoid excessive mechanical torque when tightening the BSP male thread; hand-tighten and finish with a minimal wrench torque as recommended for plastic fittings. - Prevent exposure to aggressive chemicals, solvents or oils that could degrade the plastic or NBR seal. - Minimize repetitive over-flexing or side loads at the elbow which could stress the plastic over time. When used properly within these limits, repeated assembly/disassembly is feasible without compromising the connectorâs integrity.

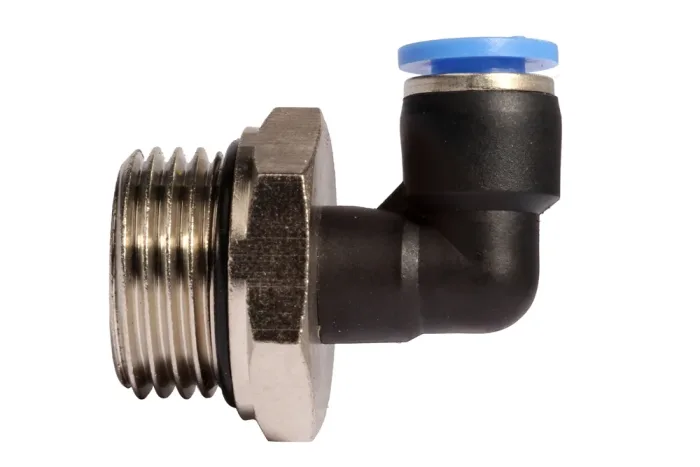

Coupling push-in angled 90° with a male BSP thread, type PLM

All products, Push-in fittings/

Additional information

Material	P – material (plastic)

Fitting angled 90° with a male BSP thread, series S, type PLM. economical solution for connecting flexible hoses pneumatic o metric calibrated diameter outer. easy and fast in use. Material: plastic plastic. Working pressure: 10 bar. Vacuum: 0.99 bar. Operating temperature: od 0°C up to +60°C. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
SH-PLM-04-02B	Fitting angled PLM, hose 4 mm, 1/8" BSP male	-	10	In stock	Enquiry
SH-PLM-04-04B	Fitting angled PLM, hose 4 mm, 1/4" BSP male	-	10	In stock	Enquiry
SH-PLM-04-06B	Fitting angled PLM, hose 4 mm, 3/8" BSP male	-	10	In stock	Enquiry
SH-PLM-06-02B	Fitting angled PLM, hose 6 mm, 1/8" BSP male	-	10	In stock	Enquiry
SH-PLM-06-04B	Fitting angled PLM, hose 6 mm, 1/4" BSP male	-	10	In stock	Enquiry
SH-PLM-06-06B	Fitting angled PLM, hose 6 mm, 3/8" BSP male	-	10	In stock	Enquiry
SH-PLM-06-08B	Fitting angled PLM, hose 6 mm, 1/2" BSP male	-	10	In stock	Enquiry
SH-PLM-08-02B	Fitting angled PLM, hose 8 mm, 1/8" BSP male	-	10	In stock	Enquiry
SH-PLM-08-04B	Fitting angled PLM, hose 8 mm, 1/4" BSP male	-	10	In stock	Enquiry
SH-PLM-08-06B	Fitting angled PLM, hose 8 mm, 3/8" BSP male	-	10	In stock	Enquiry
SH-PLM-08-08B	Fitting angled PLM, hose 8 mm, 1/2" BSP male	-	10	In stock	Enquiry
SH-PLM-10-02B	Fitting angled PLM, hose 10 mm, 1/8" BSP male	-	10	In stock	Enquiry
SH-PLM-10-04B	Fitting angled PLM, hose 10 mm, 1/4" BSP male	-	10	In stock	Enquiry
SH-PLM-10-06B	Fitting angled PLM, hose 10 mm, 3/8" BSP male	-	10	In stock	Enquiry
SH-PLM-10-08B	Fitting angled PLM, hose 10 mm, 1/2" BSP male	-	10	In stock	Enquiry
SH-PLM-12-02B	Fitting angled PLM, hose 12 mm, 1/8" BSP male	-	10	In stock	Enquiry
SH-PLM-12-04B	Fitting angled PLM, hose 12 mm, 1/4" BSP male	-	10	In stock	Enquiry
SH-PLM-12-06B	Fitting angled PLM, hose 12 mm, 3/8" BSP male	-	10	In stock	Enquiry
SH-PLM-12-08B	Fitting angled PLM, hose 12 mm, 1/2" BSP male	-	10	In stock	Enquiry
SH-PLM-14-04B	Fitting angled PLM, hose 14 mm, 1/4" BSP male	-	10	In stock	Enquiry
SH-PLM-14-06B	Fitting angled PLM, hose 14 mm, 3/8" BSP male	-	10	In stock	Enquiry
SH-PLM-14-08B	Fitting angled PLM, hose 14 mm, 1/2" BSP male	-	10	In stock	Enquiry
SH-PLM-16-06B	Fitting angled PLM, hose 16 mm, 3/8" BSP male	-	10	In stock	Enquiry
SH-PLM-16-08B	Fitting angled PLM, hose 16 mm, 1/2" BSP male	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting angled 90° with a male BSP thread, series S, type PLM. economical solution for connecting flexible hoses pneumatic o metric calibrated diameter outer. easy and fast in use. Material: plastic plastic. Working pressure: 10 bar. Vacuum: 0.99 bar. Operating temperature: od 0°C up to +60°C. sealing: NBR.
