Is the 90Â° angle plug connector with NPT male thread, PLC type compatible with inch-calibrated flexible pneumatic hoses and quick to install?

Yes. The 90Â° angle plug connector with NPT male thread, PLC type is designed as an economic solution for connecting flexible pneumatic hoses with inch-calibrated outer diameters, so it is compatible with such hoses. Itâs plastic, rated to 10 bar working pressure (vacuum to 0.99 bar), and operates between 0Â°C and +60Â°C with NBR sealing. The description also notes it is easy and quick to use, so installation should be fast.especially for common push-fit or clamp-style hose connections. Ensure the hose outer diameter matches the connectorâs specified inch calibration and that the pressure/temperature limits and NBR sealing are suitable for your application before final installation.

Can the 90Â° angle plug connector with NPT male thread, PLC type withstand temperatures from 0Â°C to +60Â°C while maintaining seal integrity?

Yes. The 90Â° angle plug connector with NPT male thread, PLC type is specified for an operating temperature range of 0Â°C to +60Â°C and uses NBR sealing. Within this temperature range the material and NBR seal are rated to maintain seal integrity under the stated working pressure (10 bar) and vacuum (0.99 bar). Therefore, when used within those temperature and pressure limits, the connector will retain its sealing performance.

Does the 90Â° angle plug connector with NPT male thread, PLC type support NBR sealing for vacuum applications down to 0.01 bar?

Yes. The 90Â° angle plug connector with NPT male thread, PLC type (series S) uses NBR sealing and is specified for vacuum down to 0.99 bar (i.e., it supports a vacuum level of 0.99 bar relative to atmospheric pressure). This corresponds to a residual absolute pressure of about 0.01 bar, so the connectorâs stated vacuum rating aligns with your 0.01 bar requirement. Note the connector is made of plastic and rated for working pressure up to 10 bar and operating temperatures 0Â°C to +60Â°C; ensure these material and temperature limits suit your application for reliable vacuum sealing.

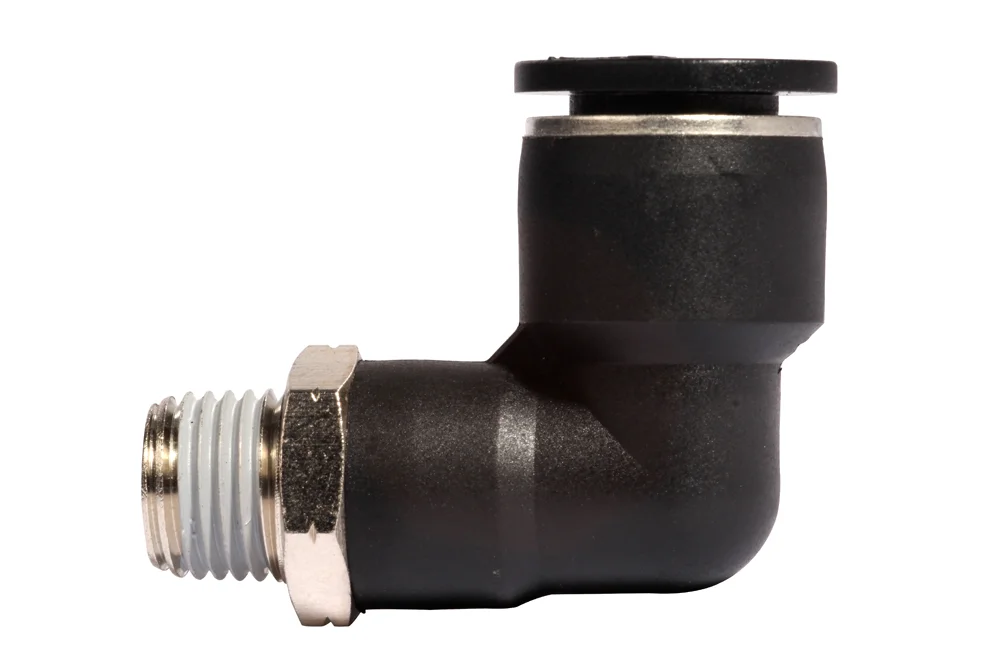

Coupling push-in angled 90° with a male NPT thread, type PLC

All products, Push-in fittings/

Additional information

Material	P – material (plastic)

Fitting angled 90° with a male NPT thread, series S, type PLC. economical solution for connecting flexible hoses pneumatic o inch calibrated diameter outer. easy and fast in use. Material: plastic plastic. Working pressure: 10 bar. Vacuum: 0.99 bar. Operating temperature: od 0°C up to +60°C. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
SH-PLC-02,5-02N	Fitting angled PLC, hose 5/32", 1/8" NPT male	-	10	In stock	Enquiry
SH-PLC-02,5-04N	Fitting angled PLC, hose 5/32", 1/4" NPT male	-	10	In stock	Enquiry
SH-PLC-03-02N	Fitting angled PLC, hose 3/16", 1/8" NPT male	-	10	In stock	Enquiry
SH-PLC-03-04N	Fitting angled PLC, hose 3/16", 1/4" NPT male	-	10	In stock	Enquiry
SH-PLC-03-06N	Fitting angled PLC, hose 3/16", 3/8" NPT male	-	10	In stock	Enquiry
SH-PLC-04-02N	Fitting angled PLC, hose 1/4", 1/8" NPT male	-	10	In stock	Enquiry
SH-PLC-04-04N	Fitting angled PLC, hose 1/4", 1/4" NPT male	-	10	In stock	Enquiry
SH-PLC-04-06N	Fitting angled PLC, hose 1/4", 3/8" NPT male	-	10	In stock	Enquiry
SH-PLC-05-02N	Fitting angled PLC, hose 5/16", 1/8" NPT male	-	10	In stock	Enquiry
SH-PLC-05-04N	Fitting angled PLC, hose 5/16", 1/4" NPT male	-	10	In stock	Enquiry
SH-PLC-05-06N	Fitting angled PLC, hose 5/16", 3/8" NPT male	-	10	In stock	Enquiry
SH-PLC-05-08N	Fitting angled PLC, hose 5/16", 1/2" NPT male	-	10	In stock	Enquiry
SH-PLC-06-02N	Fitting angled PLC, hose 3/8", 1/8" NPT male	-	10	In stock	Enquiry
SH-PLC-06-04N	Fitting angled PLC, hose 3/8", 1/4" NPT male	-	10	In stock	Enquiry
SH-PLC-06-06N	Fitting angled PLC, hose 3/8", 3/8" NPT male	-	10	In stock	Enquiry
SH-PLC-06-08N	Fitting angled PLC, hose 3/8", 1/2" NPT male	-	10	In stock	Enquiry
SH-PLC-08-04N	Fitting angled PLC, hose 1/2", 1/4" NPT male	-	10	In stock	Enquiry
SH-PLC-08-06N	Fitting angled PLC, hose 1/2", 3/8" NPT male	-	10	In stock	Enquiry
SH-PLC-08-08N	Fitting angled PLC, hose 1/2", 1/2" NPT male	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting angled 90° with a male NPT thread, series S, type PLC. economical solution for connecting flexible hoses pneumatic o inch calibrated diameter outer. easy and fast in use. Material: plastic plastic. Working pressure: 10 bar. Vacuum: 0.99 bar. Operating temperature: od 0°C up to +60°C. sealing: NBR.
