Is the Screwed hydraulic end 90Â° GW BSP, carbon steel, DKR type S compatible with standard BSP internal-threaded hydraulic hoses and screwed sleeves?

Yes. The Screwed hydraulic end 90Â° GW BSP, carbon steel, DKR type S is designed to be compatible with standard BSP internal-threaded hydraulic hoses and screwed sleeves. It features an internal BSP thread and nut with a 60Â° sealing cone (DKR) and is specifically intended for screwing into rubber and thermoplastic hoses using a screwed sleeve. Material (carbon steel, galvanized) and the 60Â° DKR sealing cone match common BSP hose fittings, so when used with correctly sized BSP internal-threaded hoses and the appropriate screwed sleeve, it will form a proper mechanical and sealed connection. Ensure you select the matching hose inner diameter, sleeve size, and follow manufacturer assembly/crimping guidelines to achieve reliable sealing and pressure performance.

Does Screwed hydraulic end 90Â° GW BSP, carbon steel, DKR type S require a specific hose sleeve size or standard sleeves suffice?

Screwed hydraulic end 90Â° GW BSP, carbon steel, DKR type S is designed for use with a screwed sleeve for rubber and thermoplastic hoses. That means standard industry sleeves sized to match the hose and the fittingâs nominal size are required-use the specific screwed sleeve dimension corresponding to the hose inner/outer diameter and the fitting size. Do not substitute with generic/undersized sleeves: the correct screwed sleeve ensures proper clamping, sealing with the 60Â° cone (DKR) and safe performance. If unsure, match sleeve part numbers or dimensions to the hose spec and the fitting nominal size provided by the manufacturer.

Can Screwed hydraulic end 90Â° GW BSP, carbon steel, DKR type S be used with hoses operating above 200Â°C?

No. Screwed hydraulic end 90Â° GW BSP, carbon steel, DKR type S should not be used with hoses operating above 200Â°C. Reasoning: - The product description specifies design for rubber and thermoplastic hoses using a screwed sleeve. Typical rubber and thermoplastic hose materials and their seals/constructions have maximum continuous temperature ratings well below or around 100â150Â°C; some specialized high-temperature elastomers or PTFE-lined assemblies can tolerate higher, but the description does not indicate such materials. - Carbon steel, galvanized components can withstand higher temperatures mechanically, but galvanizing (zinc coating) degrades significantly above ~200Â°C, risking coating failure, corrosion and loss of protective properties. Threaded connections and sealing cones (60Â° DKR) rely on proper material behavior and seal integrity that can be compromised at elevated temperatures. - Sealing surfaces, hose ferrules and internal components are not specified for >200Â°C; without explicit high-temperature ratings from the manufacturer for the complete assembly (fitting, hose, sleeve, seals), using the fitting above 200Â°C risks leakage, failure, and safety hazards. Recommendation: Consult the manufacturerâs technical datasheet or supplier for explicit maximum operating temperature and approved hose materials for Screwed hydraulic end 90Â° GW BSP, carbon steel, DKR type S before any use above 200Â°C. If high-temperature service is required, consider fittings and hose assemblies specifically rated for those temperatures (e.g., stainless steel fittings, PTFE-lined hoses, high-temperature seals).

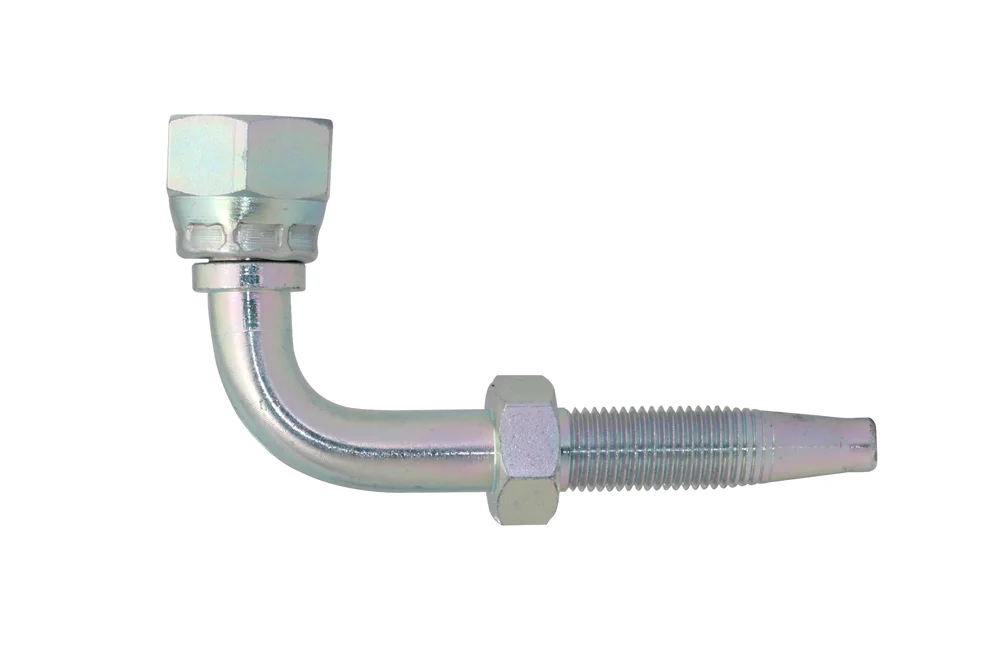

Fitting hydraulic screw-together 90° BSP female, carbon steel, DKR type S

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	30

Fitting hydraulic screw-together, type S, with BSP female thread with a nut, 60° sealing cone (DKR), angled 90°. intended for screwing onto hoses rubber and termoplastycznych using a ferrule screw-together. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-SBW210-02-025	Fitting screw-together 90° 1/8" BSP female, hose 5/32"	4	-	In stock	Enquiry
TI-SBW210-02-03	Fitting screw-together 90° 1/8" BSP female, hose 3/16"	5	-	In stock	Enquiry
TI-SBW210-04-025	Fitting screw-together 90° 1/4" BSP female, hose 5/32"	4	-	In stock	Enquiry
TI-SBW210-04-03	Fitting screw-together 90° 1/4" BSP female, hose 3/16"	5	-	In stock	Enquiry
TI-SBW210-04-04	Fitting screw-together 90° 1/4" BSP female, hose 1/4"	6	-	In stock	Enquiry
TI-SBW210-04-05	Fitting screw-together 90° 1/4" BSP female, hose 5/16"	8	-	In stock	Enquiry
TI-SBW210-06-05	Fitting screw-together 90° 3/8" BSP female, hose 5/16"	8	-	In stock	Enquiry
TI-SBW210-06-06	Fitting screw-together 90° 3/8" BSP female, hose 3/8"	10	-	In stock	Enquiry
TI-SBW210-08-08	Fitting screw-together 90° 1/2" BSP female, hose 1/2"	12	-	In stock	Enquiry
TI-SBW210-10-10	Fitting screw-together 90° 5/8" BSP female, hose 5/8"	16	-	In stock	Enquiry
TI-SBW210-12-12	Fitting screw-together 90° 3/4" BSP female, hose 3/4"	20	-	In stock	Enquiry
TI-SBW210-16-16	Fitting screw-together 90° 1" BSP female, hose 1"	25	-	In stock	Enquiry
TI-SBW210-20-20	Fitting screw-together 90° 1.1/4" BSP female, hose 1.1/4"	32	-	In stock	Enquiry
TI-SBW210-24-24	Fitting screw-together 90° 1.1/2" BSP female, hose 1.1/2"	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting hydraulic screw-together, type S, with BSP female thread with a nut, 60° sealing cone (DKR), angled 90°. intended for screwing onto hoses rubber and termoplastycznych using a ferrule screw-together. Material: carbon steel, galvanized.
