Is the Flanged connection 90Â° SAE 6000 / GW BSP, carbon steel, type D6 compatible with other SAE 6000 fittings and BSP-threaded components in hydraulic systems?

Yes . the Flanged connection 90Â° SAE 6000 / GW BSP, carbon steel, type D6 is designed to be compatible with other SAE 6000 fittings and BSPâthreaded components in hydraulic systems. Key compatibility points: - Threading: It features an internal BSP thread (GW BSP), so it will mate correctly with components using the same BSP standard. - Flange standard: The 90Â° SAE 6000 designation indicates it matches the SAE 6000 flange interface, so it should fit other SAE 6000 fittings. - Sealing: Supplied with an Oâring seal (NBR) and mounting screws, it provides the proper sealing method typical for flangeâtoâflange SAE connections; ensure mating parts accommodate the Oâring groove and screw pattern. - Materials & temperatures: Made of galvanized carbon steel and rated for â20Â°C to +100Â°C, it is suitable for typical hydraulic fluids and service ranges.confirm material compatibility and temperature limits with your system and fluid. - Practical checks: Verify that mating components are indeed SAE 6000 and BSP (not mixed imperial NPT or metric), confirm bolt hole pattern and Oâring dimensions match, and ensure pressure ratings of both components are compatible. When these conditions are met, the Flanged connection 90Â° SAE 6000 / GW BSP, carbon steel, type D6 will interoperate correctly in hydraulic systems.

Can the Flanged connection 90Â° SAE 6000 / GW BSP, carbon steel, type D6 be used with different O-ring materials for extreme temperatures?

Flanged connection 90Â° SAE 6000 / GW BSP, carbon steel, type D6 is supplied standard with an NBR O-ring and rated for operation from -20Â°C to +100Â°C. If you need extreme temperatures outside that range, you can use alternative O-ring materials (e.g., FKM/Viton for higher temperatures up to ~200Â°C, or FFKM for very high temperatures and chemical resistance; silicone or FKM blends for low-temperature performance down to about -60Â°C, or PTFE-encapsulated elastomers for broader ranges). However, changing the O-ring material must respect compatibility with hydraulic fluid, pressure, and the flange groove dimensions. Confirm with the manufacturer or supplier that the specific alternative O-ring size and material are approved for use in Flanged connection 90Â° SAE 6000 / GW BSP, carbon steel, type D6 under your applicationâs temperature, fluid, and pressure conditions.

Does the Flanged connection 90Â° SAE 6000 / GW BSP, carbon steel, type D6 require specific tightening torque for mounting screws?

Flanged connection 90Â° SAE 6000 / GW BSP, carbon steel, type D6 does require correct tightening of the supplied mounting screws to ensure a reliable flange joint and proper sealing of the O-ring (NBR). However, the product description provided does not specify exact torque values. Recommended practice: - Use the mounting screws supplied with the Flanged connection 90Â° SAE 6000 / GW BSP, carbon steel, type D6 when possible. - Tighten screws evenly in a criss-cross (star) pattern to compress the O-ring uniformly and avoid flange distortion. - Apply a final controlled torque using a calibrated torque wrench. If the manufacturerâs torque value is not provided, use conservative torques typical for similar carbon steel SAE 6000 flange connections with NBR O-ring: - For M8 screws: 20â25 Nm - For M10 screws: 35â45 Nm - For M12 screws: 55â65 Nm (These are general guidance ranges; actual required torque depends on screw grade, thread engagement, lubrication, and gasket compression.) - If screws are pre-lubricated or coated (galvanized parts), adjust torque downward to account for reduced friction; follow screw manufacturer data where available. - After initial assembly, perform a pressure/leak test at operating conditions and recheck torque after the first operational hours. For safe, guaranteed values, obtain the specific tightening torque from the Flanged connection 90Â° SAE 6000 / GW BSP, carbon steel, type D6 manufacturer or technical datasheet.

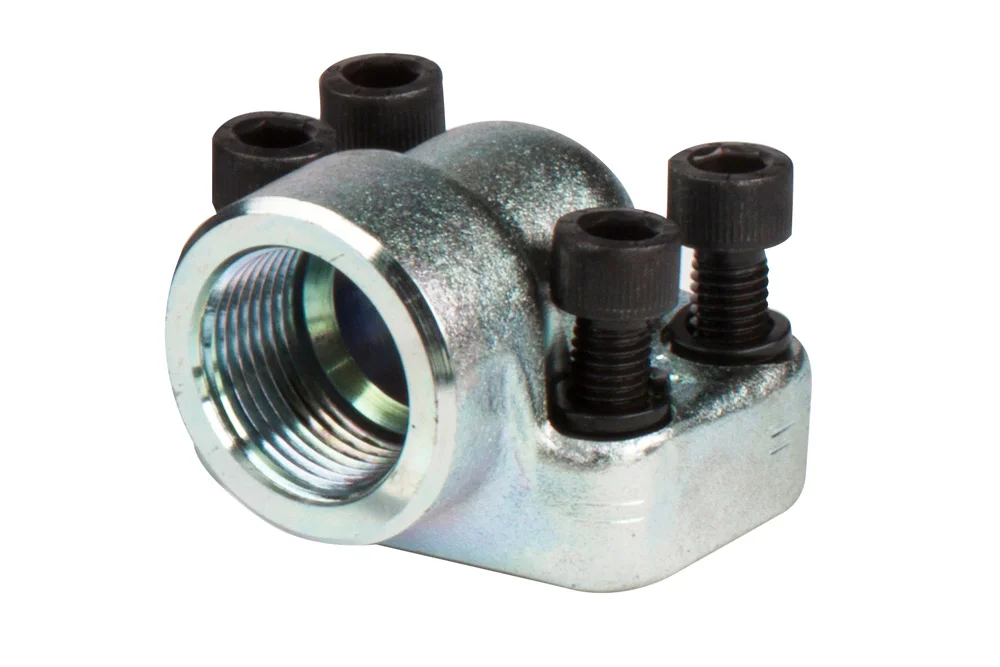

Flange connection 90° SAE 6000 / BSP female, carbon steel, type D6

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Flange connection 90° SAE 6000 of compact design with BSP female thread for use in hydraulic systems. Supplied with mounting screws and an O-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-D6-B-90-08-08	Flange connection 90° SAE 6000 1/2", 1/2" BSP female	-	420	In stock	Enquiry
HK-D6-B-90-12-12	Flange connection 90° SAE 6000 3/4", 3/4" BSP female	-	420	In stock	Enquiry
HK-D6-B-90-16-16	Flange connection 90° SAE 6000 1", 1" BSP female	-	420	In stock	Enquiry
HK-D6-B-90-20-20	Flange connection 90° SAE 6000 1.1/4", 1.1/4" BSP female	-	420	In stock	Enquiry
HK-D6-B-90-24-24	Flange connection 90° SAE 6000 1.1/2", 1.1/2" BSP female	-	420	In stock	Enquiry
HK-D6-B-90-32-32	Flange connection 90° SAE 6000 2", 2" BSP female	-	420	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Flange connection 90° SAE 6000 of compact design with BSP female thread for use in hydraulic systems. Supplied with mounting screws and an O-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.
