Can Flange end 90Â° INTERLOCK SAE 6000, carbon steel accept O-ring or other gasket in the flange groove for hose types 4SH, R13, and R15?

Yes. Flange end 90Â° INTERLOCK SAE 6000, carbon steel can accept an O-ring or other gasket in the flange groove for hose types 4SH, R13, and R15, provided the gasket is compatible with the groove dimensions, service pressure, temperature range, and fluid type. The flange is designed with a groove to accommodate an O-ring or face gasket to ensure a reliable seal when mated with a matching SAE 6000 flange. Use a gasket material rated for hydraulic fluids and temperatures encountered in your application (e.g., nitrile, HNBR, FKM, PTFE where appropriate) and ensure proper installation torque and surface condition of the mating flange. For critical or high-pressure systems, verify compatibility with manufacturer specifications and consider pressure testing after assembly.

Does Flange end 90Â° INTERLOCK SAE 6000, carbon steel support O-ring or alternative gasket in the flange groove for 4SH, R13, R15 hoses?

Yes. Flange end 90Â° INTERLOCK SAE 6000, carbon steel supports an O-ring or alternative gasket in the flange groove for hose types 4SH, R13, and R15. The design includes an O-ring seal or other gasket seated in the flange groove to ensure proper sealing with these high-pressure hose assemblies.

Is an O-ring or alternative gasket compatible with the flange groove of Flange end 90Â° INTERLOCK SAE 6000, carbon steel?

Yes. The Flange end 90Â° INTERLOCK SAE 6000, carbon steel flange end is designed with a groove to accept a sealing element. An Oâring or alternative gasket placed in the flange groove will provide a proper seal for hose types 4SH, R13, and R15 when sized and specified correctly. Key points: - Groove compatibility: The groove in the Flange end 90Â° INTERLOCK SAE 6000, carbon steel is intended to house an elastomeric Oâring or a flat gasket made for interlock SAE-style flanges. - Material selection: Use an Oâring material compatible with the hydraulic fluid, pressure, and temperature of your system (commonly nitrile/NBR, HNBR, FKM/Viton for higher temperatures, or fluoroelastomers where chemical resistance is required). - Size and crossâsection: Select an Oâring or gasket sized to match the groove dimensions (crossâsection and diameter) specified for SAE 6000 interlock flanges to avoid extrusion or blowout under pressure. - Pressure rating and backup: Confirm the Oâring/gasket pressure rating meets system requirements; for high pressures, backup rings or energized gaskets may be needed to prevent extrusion. - Corrosion and coating: Because the flange is carbon steel, galvanized coating helps corrosion resistance; ensure the sealing material is compatible with any galvanizing residues and installation practices. - Installation: Proper seating, clean surfaces, and correct torque of flange fasteners are required to achieve reliable sealing. Conclusion: An appropriately selected and sized Oâring or gasket is compatible with the flange groove of the Flange end 90Â° INTERLOCK SAE 6000, carbon steel for hose types 4SH, R13, and R15, provided the seal material, dimensions, and pressure ratings match the application.

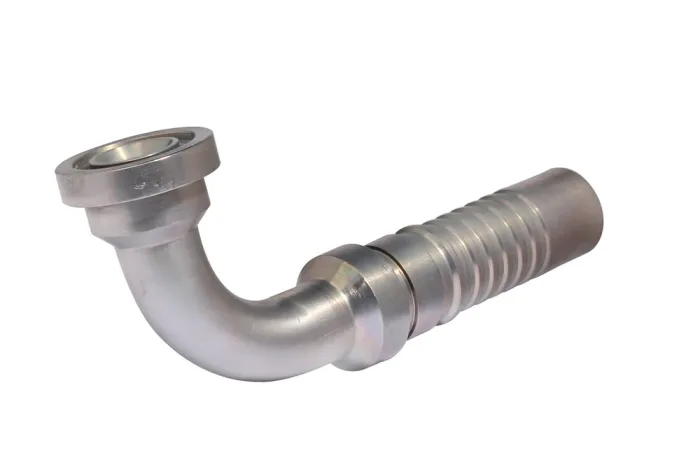

Fitting flange 90° INTERLOCK SAE 6000, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Fitting flange 90° INTERLOCK SAE 6000, O-ring or other gasket in the flange groove, for hose type 4SH, R13 and R15. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ILSK212-12-12	Flange fitting 90° INTERLOCK SAE 6000 3/4", hose 3/4"	20	-	In stock	Enquiry
TI-ILSK212-12-16	Flange fitting 90° INTERLOCK SAE 6000 3/4", hose 1"	25	-	In stock	Enquiry
TI-ILSK212-16-12	Flange fitting 90° INTERLOCK SAE 6000 1", hose 3/4"	20	-	In stock	Enquiry
TI-ILSK212-16-16	Flange fitting 90° INTERLOCK SAE 6000 1", hose 1"	25	-	In stock	Enquiry
TI-ILSK212-16-20	Flange fitting 90° INTERLOCK SAE 6000 1", hose 1.1/4"	32	-	In stock	Enquiry
TI-ILSK212-20-16	Flange fitting 90° INTERLOCK SAE 6000 1.1/4", hose 1"	25	-	In stock	Enquiry
TI-ILSK212-20-20	Flange fitting 90° INTERLOCK SAE 6000 1.1/4", hose 1.1/4"	32	-	In stock	Enquiry
TI-ILSK212-20-24	Flange fitting 90° INTERLOCK SAE 6000 1.1/4", hose 1.1/2"	38	-	In stock	Enquiry
TI-ILSK212-24-20	Flange fitting 90° INTERLOCK SAE 6000 1.1/2", hose 1.1/4"	32	-	In stock	Enquiry
TI-ILSK212-24-24	Flange fitting 90° INTERLOCK SAE 6000 1.1/2", hose 1.1/2"	38	-	In stock	Enquiry
TI-ILSK212-32-24	Flange fitting 90° INTERLOCK SAE 6000 2", hose 1.1/2"	38	-	In stock	Enquiry
TI-ILSK212-32-32	Flange fitting 90° INTERLOCK SAE 6000 2", hose 2"	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting flange 90° INTERLOCK SAE 6000, O-ring or other gasket in the flange groove, for hose type 4SH, R13 and R15. Material: carbon steel, galvanized.
