Can NON SKIVE DKO 90Â° end, carbon steel, type NOW210 be crimped onto 4SP/4SH/R13/R15 hoses using a TI-N sleeve without cutting the hose rubber?

Yes. NON SKIVE DKO 90Â° end, carbon steel, type NOW210 can be crimped onto 4SP/4SH/R13/R15 hoses using a TI-N sleeve without cutting the hose rubber. The fitting is specifically designed as a 90Â° NON SKIVE fitting with internal UNF thread and flat sealing (DKO 90) for crimping onto those hose types, and the manufacturer specifies installation using a TI-N crimping sleeve without removing the hose cover. Ensure correct sleeve size and crimping parameters per the supplierâs instructions and use appropriate crimping equipment to achieve a proper, leak-free assembly.

Can NON SKIVE DKO 90Â° end, carbon steel, type NOW210 be installed on 4SP/4SH/R13/R15 hoses using TI-N sleeve without cutting hose rubber?

Yes. NON SKIVE DKO 90Â° end, carbon steel, type NOW210 can be installed on 4SP/4SH/R13/R15 hoses using the TI-N crimping sleeve without cutting the hose rubber. The fitting is a 90Â° NON SKIVE with internal UNF thread and flat sealing (DKO 90), specifically designed for crimping on those hose types and for use with the TI-N sleeve. Material: carbon steel, galvanized.

Can NON SKIVE DKO 90Â° end, carbon steel, type NOW210 be fitted to 4SP/4SH/R13/R15 hoses using TI-N sleeve without hose rubber cutting?

Yes. NON SKIVE DKO 90Â° end, carbon steel, type NOW210 can be fitted to 4SP/4SH/R13/R15 hoses using the TI-N crimping sleeve without cutting the hose rubber. The product is specifically designed as a NON SKIVE fitting (DKO 90Â° with internal UNF thread and flat sealing) for crimping onto these hose types; installation procedure does not require removal of the outer rubber cover. Ensure correct sleeve size, proper insertion depth, and use of the recommended crimping tool and parameters for reliable seal and mechanical performance.

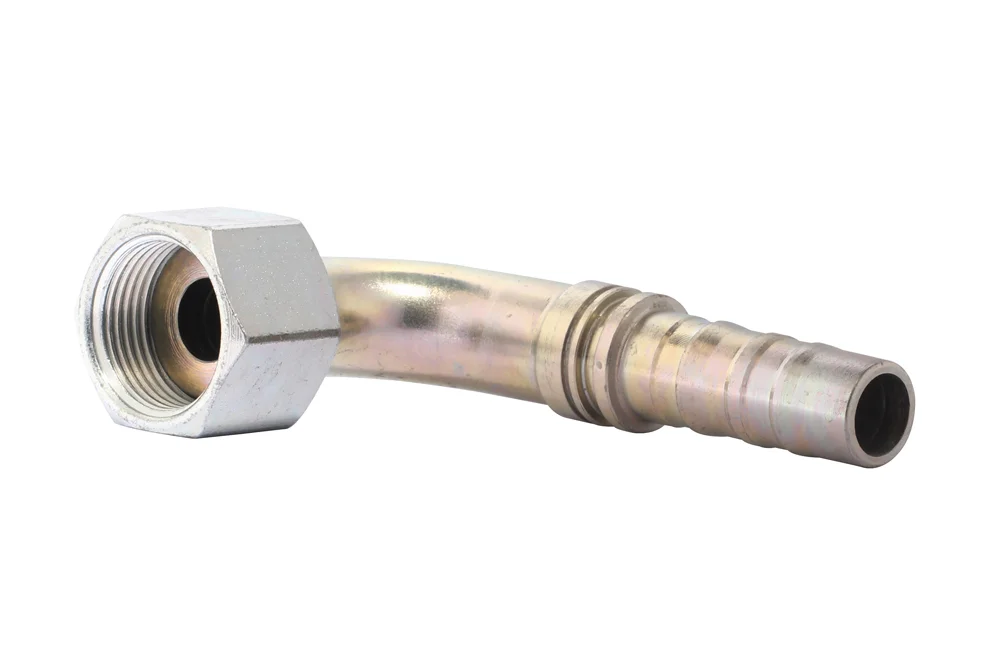

NON SKIVE DKO 90° end, carbon steel, type NOW210

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 3

90° NON SKIVE fitting with internal UNF thread, with flat sealing (DKO 90), designed for crimping in hoses type 4SP, 4SH, R13, and R15 using TI-N crimping sleeve. Installation: without cutting the hose rubber. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NOW210-19-12	End. ORFS 90° NON SKIVE G1/4", hose 3/4"	20	420	In stock	Enquiry
TI-NOW210-23-16	End. ORFS 90° NON SKIVE G1.7/16", hose 1"	25	415	In stock	Enquiry
TI-NOW210-27-20	End. ORFS 90° NON SKIVE G1 1/16", hose 1 1/4"	32	345	In stock	Enquiry
TI-NOW210-32-24	End. ORFS 90° NON SKIVE G1/2", hose 1.1/2"	38	290	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° NON SKIVE fitting with internal UNF thread, with flat sealing (DKO 90), designed for crimping in hoses type 4SP, 4SH, R13, and R15 using TI-N crimping sleeve. Installation: without cutting the hose rubber. Material: carbon steel, galvanized.
