Is the Adaptor - elbow 90Â° GZ BSP/GZ BSP adjustable, carbon steel, type A116N suitable for high-pressure hydraulic systems with 60Â° cone and ISO-1179 O-ring sealing?

Yes. The Adaptor - elbow 90Â° GZ BSP/GZ BSP adjustable, carbon steel, type A116N is suitable for high-pressure hydraulic systems that use a 60Â° cone on one side and ISOâ1179 Oâring sealing on the other. The product description specifies one external BSP thread with 60Â° cone sealing and the other external BSP thread with ISOâ1179 type G Oâring plus retaining ring, so it matches both sealing types. Made of carbon steel and galvanized, it is designed for highâpressure applications and the adjustable 90Â° elbow configuration allows alignment during installation. Ensure thread sizes and system pressure ratings match your specific hydraulic requirements and verify compatibility with hydraulic fluid and temperature range before installation.

Does the Adaptor - elbow 90Â° GZ BSP/GZ BSP adjustable, carbon steel, type A116N fit hoses with different BSP thread sizes?

No. The Adaptor - elbow 90Â° GZ BSP/GZ BSP adjustable, carbon steel, type A116N is designed with two BSP male (external) threads that form specific BSP/ISO-1179 G-type connections (60Â° cone sealing on one side and Oâring with retaining ring on the other). It connects to mating BSP female ports of the corresponding sizes shown in the product specification. It does not adapt between different BSP thread sizes; you must match the adaptorâs BSP thread sizes to the hose/fitting female BSP sizes or use a dedicated reducer/adapter sized for differing BSP threads.

Can the Adaptor - elbow 90Â° GZ BSP/GZ BSP adjustable, carbon steel, type A116N be used with stainless steel fittings?

Yes. but with important caveats. Adaptor - elbow 90Â° GZ BSP/GZ BSP adjustable, carbon steel, type A116N can be mechanically connected to stainless steel fittings because BSP threads and the 60Â° cone / ISOâ1179 G (Oâring with retaining ring) interfaces are compatible across materials. However, compatibility depends on the application conditions and corrosion/galvanic concerns: - Galvanic corrosion: Carbon steel (galvanized) mated to stainless steel can create a galvanic cell in the presence of an electrolyte (moisture, water, chemicals). Over time the zinc coating and underlying steel may corrode preferentially. If the environment is wet, corrosive, or contains chloride, avoid dissimilarâmetal contact or use insulating measures (e.g., dielectric fittings, nonâmetallic washers, or protective coatings). - Sealing surfaces: The A116N uses a 60Â° cone on one side and ISOâ1179 G (Oâring) on the other. Ensure the stainless steel mating fittings have matching sealing geometries and that the Oâring material is compatible with the media, temperature, and pressure. Proper torque and thread engagement are required to avoid leaks. - Pressure and mechanical requirements: Verify that the pressure rating and mechanical strength of the stainless mating fittings match the carbon steel adaptorâs ratings. Differences in thermal expansion between materials can affect seal integrity in cyclic or highâtemperature service. - Corrosion protection: The adaptor is galvanized; in aggressive environments the zinc layer can wear off or be compromised during installation. Consider using stainless steel adaptors or applying additional corrosion protection if long service life is required. Recommendation: For shortâterm or nonâaggressive environments, mechanical use is acceptable. For longâterm, highâcorrosion, highâtemperature, or critical applications, prefer matching stainless steel adaptors or implement corrosion mitigation (dielectric isolation, compatible Oârings, coatings) and confirm pressure/temperature compatibility.

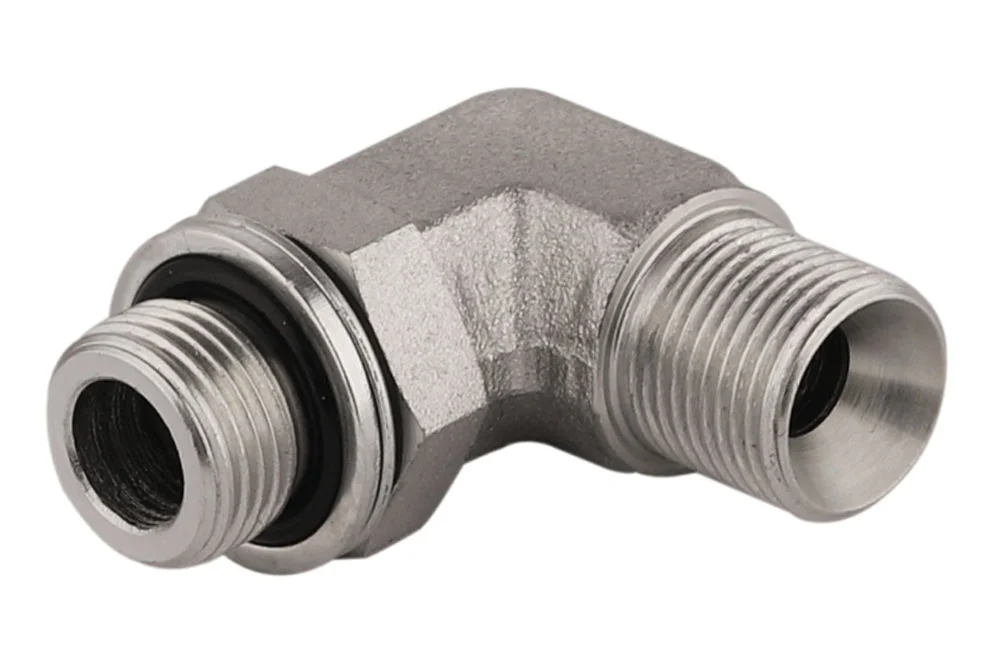

Adapter – elbow 90° BSP male/BSP male adjustable, carbon steel, type A116N

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	20

Adapter – elbow 90° high-pressure type A116N with BSP male thread (60° cone sealing) and with BSP male thread (ISO-1179 type G sealing – O-ring with retaining ring), adjustable. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A116N-02	Adapter 90° 1/8" BSP male / adjustable 1/8" BSP male	-	350	In stock	Enquiry
TI-A116N-04	Adapter 90° 1/4" BSP male / adjustable 1/4" BSP male	-	315	In stock	Enquiry
TI-A116N-04-06	Adapter 90° 1/4" BSP male / adjustable 3/8" BSP male	-	250	In stock	Enquiry
TI-A116N-06	Adapter 90° 3/8" BSP male / adjustable 3/8" BSP male	-	250	In stock	Enquiry
TI-A116N-06-04	Adapter 90° 3/8" BSP male / adjustable 1/4" BSP male	-	250	In stock	Enquiry
TI-A116N-06-08	Adapter 90° 3/8" BSP male / adjustable 1/2" BSP male	-	250	In stock	Enquiry
TI-A116N-08	Adapter 90° 1/2" BSP male / adjustable 1/2" BSP male	-	250	In stock	Enquiry
TI-A116N-08-06	Adapter 90° 1/2" BSP male / adjustable 3/8" BSP male	-	250	In stock	Enquiry
TI-A116N-08-12	Adapter 90° 1/2" BSP male / adjustable 3/4" BSP male	-	250	In stock	Enquiry
TI-A116N-12	Adapter 90° 3/4" BSP male / adjustable 3/4" BSP male	-	250	In stock	Enquiry
TI-A116N-12-08	Adapter 90° 3/4" BSP male / adjustable 1/2" BSP male	-	250	In stock	Enquiry
TI-A116N-16	Adapter 90° 1" BSP male / adjustable 1" BSP male	-	200	In stock	Enquiry
TI-A116N-20	Adapter 90° 1.1/4" BSP male / adjustable 1.1/4" BSP male	-	200	In stock	Enquiry
TI-A116N-24	Adapter 90° 1.1/2" BSP male / adjustable 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A116N-32	Adapter 90° 2" BSP male / adjustable 2" BSP male	-	125	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter – elbow 90° high-pressure type A116N with BSP male thread (60° cone sealing) and with BSP male thread (ISO-1179 type G sealing – O-ring with retaining ring), adjustable. Material: carbon steel, galvanized.
