Is the Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSPT, carbon steel, type A505T compatible with Komatsu high-pressure hydraulic systems and their sealing requirements?

Yes . Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSPT, carbon steel, type A505T is intended for Komatsu high-pressure hydraulic systems and meets their common sealing practices, with the following considerations: - The METRIC side uses an inverted cone 60Â° seal (JIS/Komatsu standard), which is a pressure-tight metal-to-metal sealing geometry widely used on Komatsu equipment. When properly torqued and paired with the correct mating seat, it provides reliable high-pressure sealing. - The BSPT side seals on the thread (tapered thread seal). BSPT relies on thread engagement and typically requires proper thread sealant (PTFE tape or hydraulic sealant) or a bonded washer depending on the application to ensure leak-free operation under high pressure. BSPT is common in many hydraulic systems but is not a metal-flange cone seal like the metric side. - Material and finish: carbon steel, galvanized . suitable for hydraulic service and provides corrosion resistance; strength is appropriate for typical Komatsu high-pressure ranges, provided pressure ratings of the specific fitting match the system. Important: Compatibility depends on correct mating components, correct installation (proper torque, use of specified sealants/washer where required), and verifying the adaptorâs pressure rating matches the specific Komatsu system pressure. If exact system pressures or mating port types are critical, confirm pressure ratings and seat/port conformity with equipment specifications before installation.

Does the Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSPT, carbon steel, type A505T require specific torque values for proper sealing?

Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSPT, carbon steel, type A505T does require proper torque for reliable sealing, but the two sealing methods differ: the METRIC external thread uses an inverted cone 60Â° metal-to-metal seal that requires controlled tightening to seat the cone without deforming it; the BSPT external thread seals on the thread and needs sufficient torque to compress tape/compound and achieve metal thread engagement without overstressing the fitting. Specific torque values are not provided in the description-use manufacturerâs torque chart or standard torque tables for carbon steel fittings of this size and thread type. If unavailable, consult KOMATSU or supplier technical data to get exact torque specs to ensure correct sealing and avoid damage.

Can the Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSPT, carbon steel, type A505T be used with different seal types or replacements?

Yes. The Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSPT, carbon steel, type A505T is designed with two different sealing arrangements on its ends, so compatibility with alternative seals or replacements depends on which end you service: - METRIC (Komatsu) end: uses an inverted cone 60Â° seat seal. Any replacement must match the 60Â° cone geometry and the JIS/KOMATSU seat dimensions. Use certified 60Â° cone seals or mating fittings specified for JIS Komatsu external metric cone seats to maintain leak-free performance and pressure rating. - BSPT end: seals on the thread (tapered BSPT). Replacements must be compatible with BSPT taper sealing methods. either properly matched BSPT female threads, PTFE/sealing tape rated for high pressure, or approved thread sealants suitable for carbon steel and hydraulic applications. Do not substitute with a parallel-thread BSPP fitting unless an additional sealing method (like an O-ring adapter) and correct adapter are used. General guidelines: - Maintain material compatibility: carbon steel adaptor is galvanized. avoid dissimilar-metal corrosion when choosing seal materials. - Match pressure and temperature ratings of replacement seals to the original application. - Use OEM or certified equivalents that conform to JIS/BSPT specifications to preserve safety and performance. - If changing seal type (cone vs. thread), use an appropriate adapter or replace the mating connector to preserve the intended sealing interface. In summary: the Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSPT, carbon steel, type A505T can accept replacements, but they must match the specific sealing style and standards of each end (60Â° inverted cone for METRIC, taper/thread sealing for BSPT) and meet material and pressure compatibility requirements.

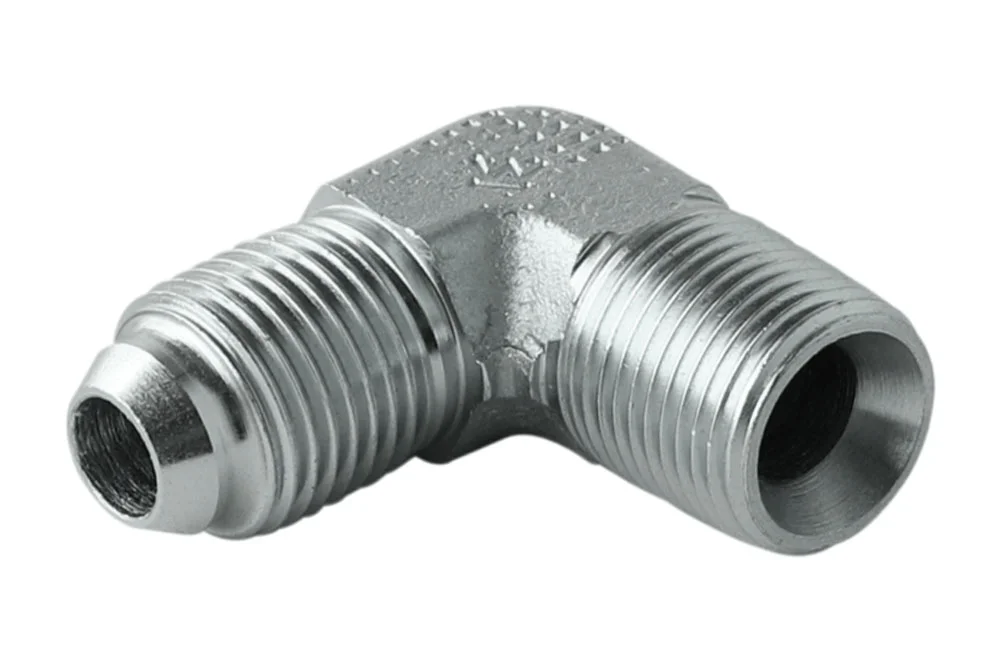

Adapter – elbow 90° JIS Komatsu metric male x BSPT male, carbon steel, type A505T

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

Adapter – elbow 90° high-pressure JIS type A505T with metric male thread (inverted 60° cone sealing) – KOMATSU and with BSPT male thread (thread sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A505T-14-04	Adapter 90° M14x1.5 male JIS / 1/4" BSPT male	-	350	In stock	Enquiry
TI-A505T-16-06	Adapter 90° M16x1.5 male JIS / 3/8" BSPT male	-	250	In stock	Enquiry
TI-A505T-18-06	Adapter 90° M18x1.5 male JIS / 3/8" BSPT male	-	250	In stock	Enquiry
TI-A505T-22-08	Adapter 90° M22x1.5 male JIS / 1/2" BSPT male	-	225	In stock	Enquiry
TI-A505T-30-12	Adapter 90° M30x1.5 male JIS / 3/4" BSPT male	-	200	In stock	Enquiry
TI-A505T-33-16	Adapter 90° M33x1.5 male JIS / 1" BSPT male	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter – elbow 90° high-pressure JIS type A505T with metric male thread (inverted 60° cone sealing) – KOMATSU and with BSPT male thread (thread sealing). Material: carbon steel, galvanized.
