Is the Adaptor - elbow 90Â° with GZ / GW NPT, carbon steel, type A307 compatible with NPT thread sealant and suitable for high-pressure applications?

Yes. The Adaptor - elbow 90Â° with GZ / GW NPT, carbon steel, type A307 is designed with external (male) and internal (female) NPT threads indicated as "thread seal," so it is compatible with standard NPT thread sealants (PTFE tape, pipe dope) or threadlocking compounds appropriate for NPT joints. Made of galvanized carbon steel and specified as a 90Â° high-pressure adapter, it is suitable for high-pressure applications within the pressure ratings defined by the manufacturer and applicable standards. Important notes: - Use proper NPT sealant application (wrap PTFE tape in the thread direction or apply correct pipe dope) and avoid over-tightening to prevent thread damage. - Confirm the adapterâs exact pressure rating and temperature limits from manufacturer data or certification before use to ensure compatibility with your specific high-pressure system and media. - For critical or hazardous services, follow applicable codes, perform pressure testing, and consider corrosion, galvanizing condition, and compatibility with the process fluid.

Can Adaptor - elbow 90Â° with GZ / GW NPT, carbon steel, type A307 withstand corrosive environments after galvanization?

Adaptor - elbow 90Â° with GZ / GW NPT, carbon steel, type A307: Galvanization (likely zinc coating) improves corrosion resistance compared with bare carbon steel and can protect in mildly corrosive environments (atmospheric, dry indoor, limited humidity). However, galvanized carbon steel is not suitable for strongly corrosive environments (marine, acidic, alkaline, chlorides, prolonged humidity) or high-temperature/abrasive conditions; coating can degrade, leading to undercutting corrosion. For aggressive service, use stainless steel, corrosion-resistant alloys, or additional protective coatings and ensure proper sealing of threads. Also verify galvanizing quality, coating thickness, and compatibility with your specific media and operating conditions before deployment.

Does Adaptor - elbow 90Â° with GZ / GW NPT, carbon steel, type A307 meet specific pressure rating standards?

Adaptor - elbow 90Â° with GZ / GW NPT, carbon steel, type A307: Based on the provided description (90Â° high-pressure adapter type A307 with external NPT thread (thread seal) and internal NPT thread (thread seal); material: carbon steel, galvanized), there is no explicit pressure rating or reference to a recognized pressure standard included. While the term "high-pressure" suggests suitability for elevated pressures, compliance with specific pressure rating standards (e.g., ASME B31.3, ASME B1.20.1, ISO 8434, EN 10204, or defined PSI/Bar limits) cannot be confirmed without manufacturer-supplied data such as maximum allowable working pressure (MAWP), proof/test pressure, applicable standard certifications, or material/heat-treatment and dimensional specifications. For definitive confirmation, request from the manufacturer or supplier: certified pressure rating (MAWP), applicable standards/certifications, test reports (hydrostatic/pressure test), and detailed material specifications.

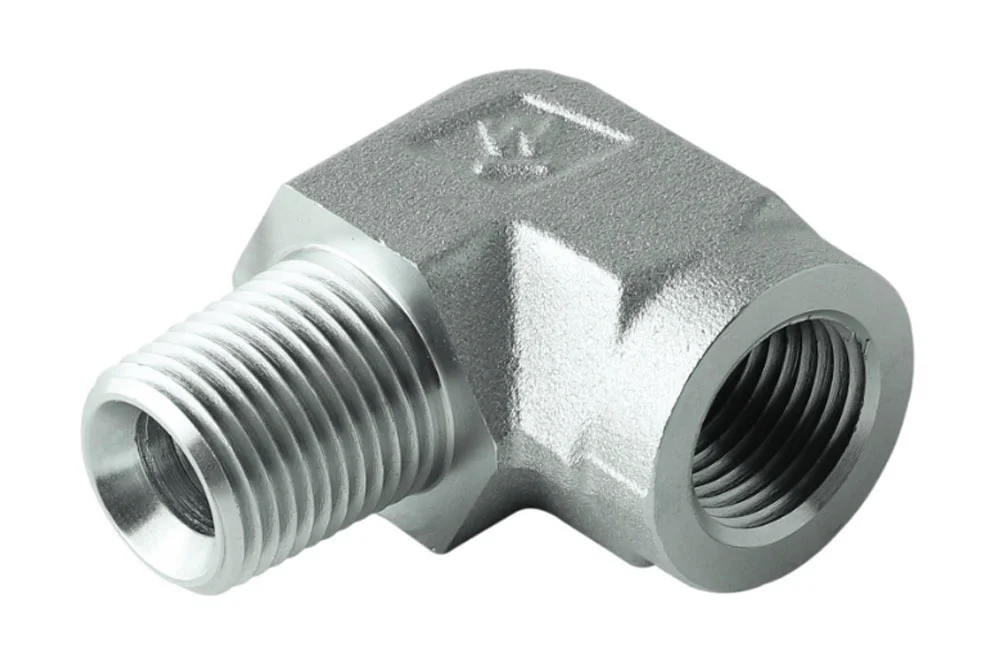

Adapter – elbow 90° with male / NPT female, carbon steel, type A307

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure 90° adapter type A307 with NPT male thread (thread sealing) and with NPT female thread (thread sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A307-02-02	Adapter 90° 1/8" NPT male / 1/8" NPT female	-	345	In stock	Enquiry
TI-A307-04-02	Adapter 90° 1/4" NPT male / 1/8" NPT female	-	345	In stock	Enquiry
TI-A307-04-04	Adapter 90° 1/4" NPT male / 1/4" NPT female	-	345	In stock	Enquiry
TI-A307-06-06	Adapter 90° 3/8" NPT male / 3/8" NPT female	-	276	In stock	Enquiry
TI-A307-08-08	Adapter 90° 1/2" NPT male / 1/2" NPT female	-	241	In stock	Enquiry
TI-A307-12-12	Adapter 90° 3/4" NPT male / 3/4" NPT female	-	155	In stock	Enquiry
TI-A307-16-16	Adapter 90° 1" NPT male / 1" NPT female	-	138	In stock	Enquiry
TI-A307-20-20	Adapter 90° 1.1/4" NPT male / 1.1/4" NPT female	-	112	In stock	Enquiry
TI-A307-24-24	Adapter 90° 1.1/2" NPT male / 1.1/2" NPT female	-	86	In stock	Enquiry
TI-A307-32-32	Adapter 90° 2" NPT male / 2" NPT female	-	78	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure 90° adapter type A307 with NPT male thread (thread sealing) and with NPT female thread (thread sealing). Material: carbon steel, galvanized.
