Is the Adaptor - hydraulic tee "L" GZ BSP x 2/GW BSP, carbon steel, type A126 suitable for high-pressure hydraulic systems with 60Â° cone BSP sealing?

Yes. The Adaptor - hydraulic tee "L" GZ BSP x 2/GW BSP, carbon steel, type A126 is suitable for highâpressure hydraulic systems that use 60Â° cone BSP sealing. Description confirms it has two external BSP threads and one internal BSP thread, all with 60Â° cone sealing, and it is made of carbon steel, galvanized . a standard construction for highâpressure hydraulic fittings. Ensure that the specific system pressure rating, thread sizes, and compatibility with the hydraulic fluid match the adaptorâs rated specifications before installation.

Does the Adaptor - hydraulic tee "L" GZ BSP x 2/GW BSP, carbon steel, type A126 require specific torque values for proper 60Â° cone BSP sealing?

Yes. The Adaptor - hydraulic tee "L" GZ BSP x 2/GW BSP, carbon steel, type A126 requires specific torque to ensure proper 60Â° cone BSP metal-to-metal sealing. Correct torque compresses the cone seating without overloading threads or distorting the cone face. Recommended practice: use manufacturer or standard BSP torque charts for the specific thread size and material, clean and lubricate threads where specified, and tighten to the specified torque range for the BSP size. If manufacturer values are unavailable, consult relevant hydraulic fitting standards (ISO 1179 / ISO 8434 family or BSP torque reference tables) to determine appropriate torque for the adaptorâs BSP thread sizes.

Can the Adaptor - hydraulic tee "L" GZ BSP x 2/GW BSP, carbon steel, type A126 be used with stainless steel fittings?

Yes. but with important precautions. The Adaptor - hydraulic tee "L" GZ BSP x 2/GW BSP, carbon steel, type A126 can be mated to stainless steel fittings because BSP 60Â° cone sealing threads are a mechanical/metal-to-metal joint and carbon steel can physically engage stainless steel threads. However, you must address galvanic corrosion, mechanical compatibility and sealing integrity: 1. Galvanic corrosion: The adaptor is carbon steel, galvanized. When coupled to stainless steel in the presence of an electrolyte (moisture, hydraulic fluid, salt, etc.) a galvanic cell can form, accelerating corrosion of the carbon steel. To minimize this risk: - Use compatible materials or apply insulating barriers (PTFE sleeves, washers, or polymer coatings) between the two metals. - Ensure good system sealing to exclude moisture and use corrosion inhibitors in the hydraulic fluid if appropriate. - Consider replacing the adaptor with a stainless steel equivalent if long-term exposure to corrosive environments is expected. 2. Sealing and thread fit: The 60Â° cone sealing relies on correct metal-to-metal contact. Ensure: - Threads and cone surfaces are undamaged and within tolerance. - Proper torque is applied per manufacturer specs to achieve the metal cone seal without over-tightening. - Use appropriate thread compounds only if they do not prevent metal-to-metal sealing. 3. Pressure and application: Confirm the adaptorâs pressure rating and mechanical strength meet system requirements when paired with stainless fittings. Carbon steel and stainless have different yield strengths and thermal expansion; assess for dynamic loads, vibration, temperature cycles. 4. Surface treatment: The galvanization on the carbon steel may affect the cone seating if coating is uneven or too thick. Ensure the cone seats properlyâremove excess coating at sealing faces if recommended by manufacturer. Conclusion: Technically compatible, but proceed only after evaluating galvanic corrosion risk, ensuring correct sealing and torque, and confirming pressure/temperature requirements. For best longevity in corrosive or critical systems, use a stainless steel adaptor or employ isolation measures.

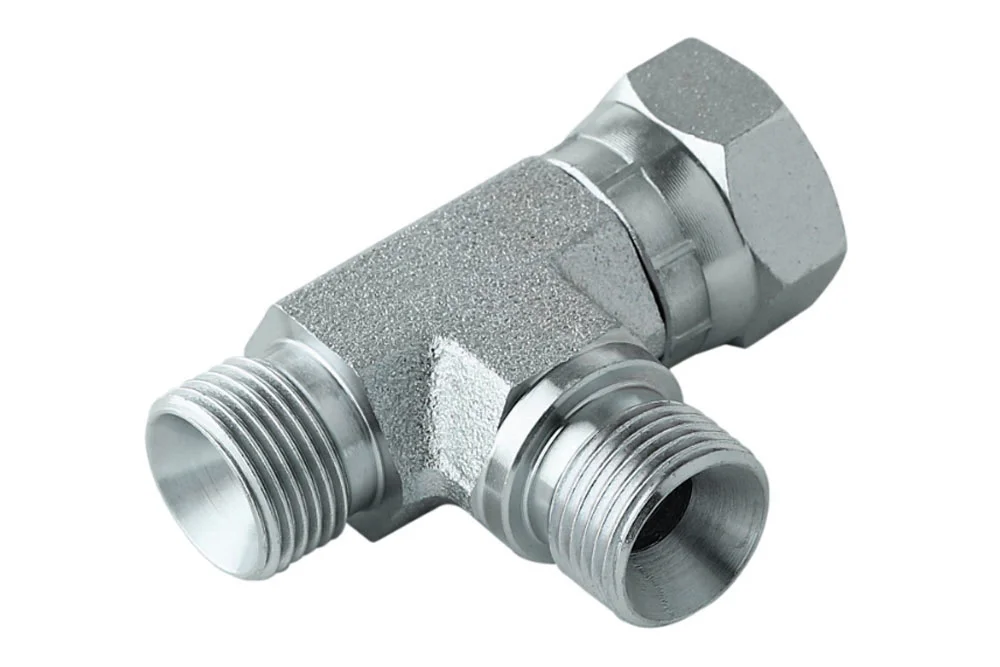

Adapter – tee hydraulic “L” BSP male x 2/BSP female, carbon steel, type A126

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Adapter – tee “L” high-pressure, type A126 with 2 x BSP male thread (60° cone sealing) and BSP female thread (60° cone sealing) and with. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A126-02	Tee "L" 1/8" BSP female / 2 x 1/8" BSP male	-	400	In stock	Enquiry
TI-A126-04	Tee "L" 1/4" BSP female / 2 x 1/4" BSP male	-	400	In stock	Enquiry
TI-A126-06	Tee "L" 3/8" BSP female / 2 x 3/8" BSP male	-	400	In stock	Enquiry
TI-A126-08	Tee "L" 1/2" BSP female / 2 x 1/2" BSP male	-	350	In stock	Enquiry
TI-A126-12	Tee "L" 3/4" BSP female / 2 x 3/4" BSP male	-	315	In stock	Enquiry
TI-A126-16	Tee "L" 1" BSP female / 2 x 1" BSP male	-	250	In stock	Enquiry
TI-A126-20	Tee "L" 1.1/4" BSP female / 2 x 1.1/4" BSP male	-	200	In stock	Enquiry
TI-A126-24	Tee "L" 1.1/2" BSP female / 2 x 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A126-32	Tee "L" 2" BSP female / 2 x 2" BSP male	-	125	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter – tee “L” high-pressure, type A126 with 2 x BSP male thread (60° cone sealing) and BSP female thread (60° cone sealing) and with. Material: carbon steel, galvanized.
